Cargo & capacity
Share the maximum goods weight, dimensions and loading method. Include any handling equipment that will be carried on the platform.

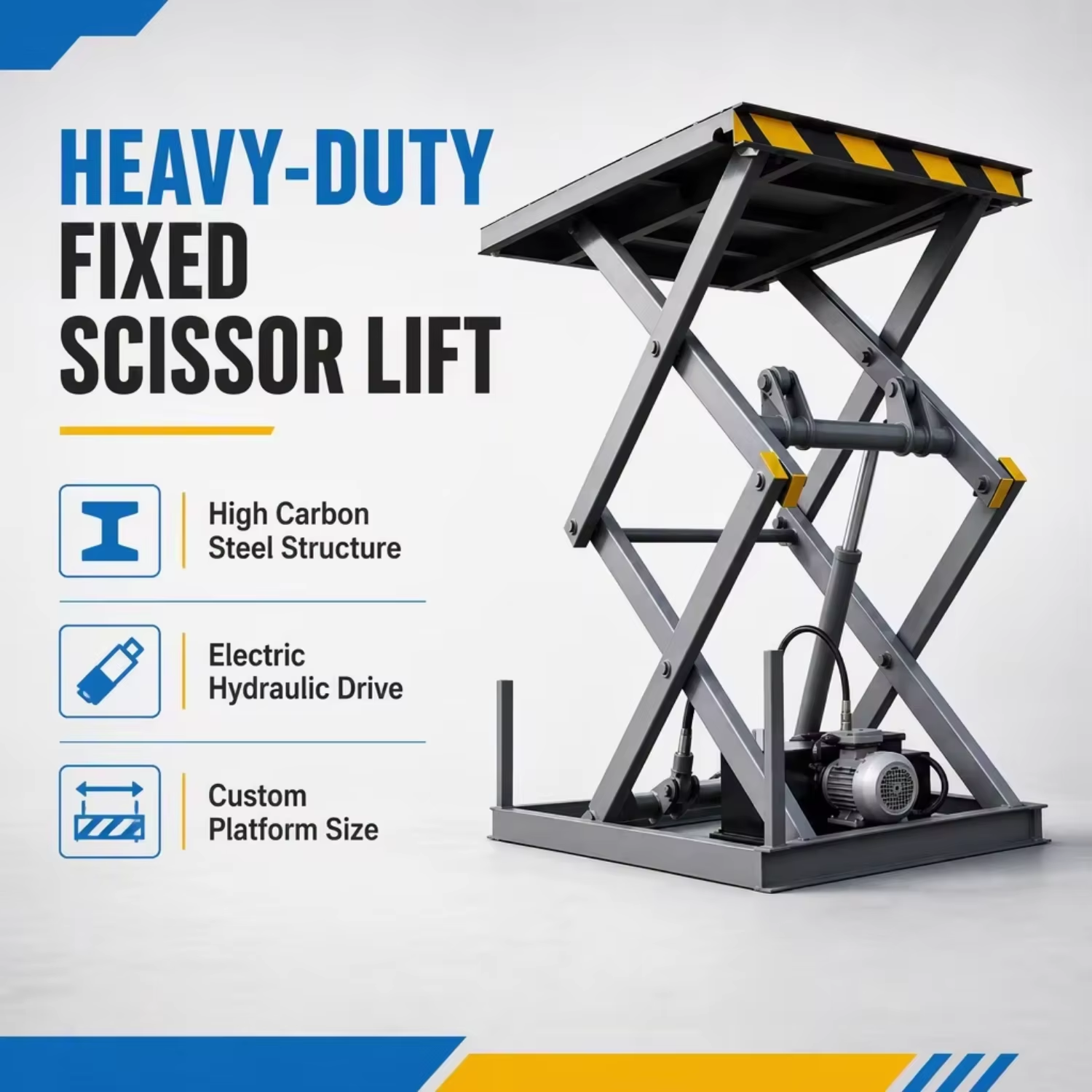

Fixed Scissors Lift
CUSTOM FIXED SCISSOR LIFT / GOODS HANDLING
A stationary hydraulic scissor platform specified for your cargo, lifting height and installation space. Our main focus is custom cargo lifting solutions for warehouses, workshops and production facilities.
Custom loadCargo & handling
Custom sizePlatform & layout
Custom travelHeight & installation
Selected compact standard models are also available from stock. See the separate standard model section below.
Product Details

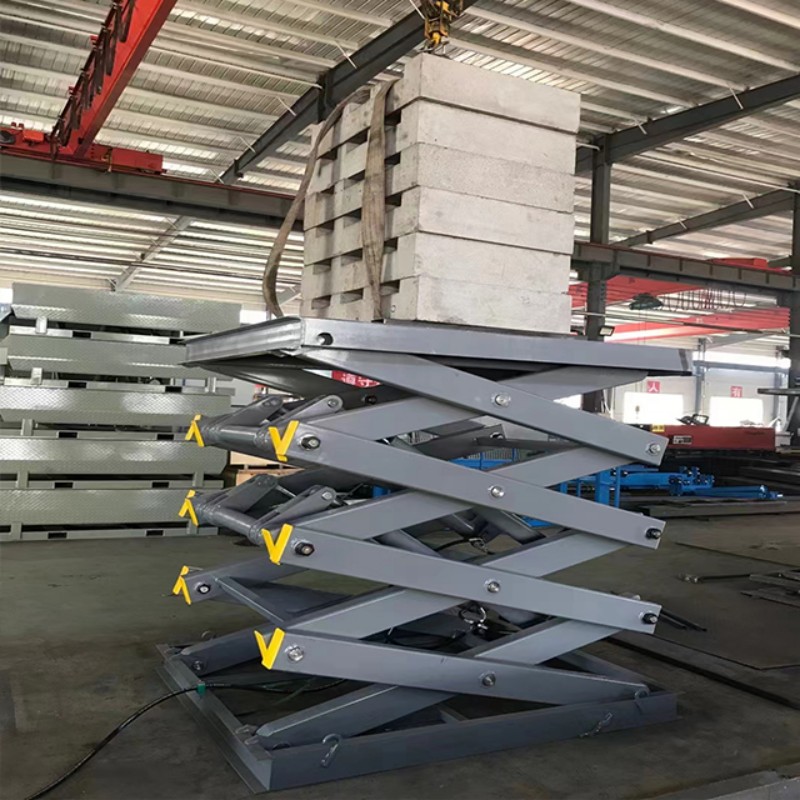

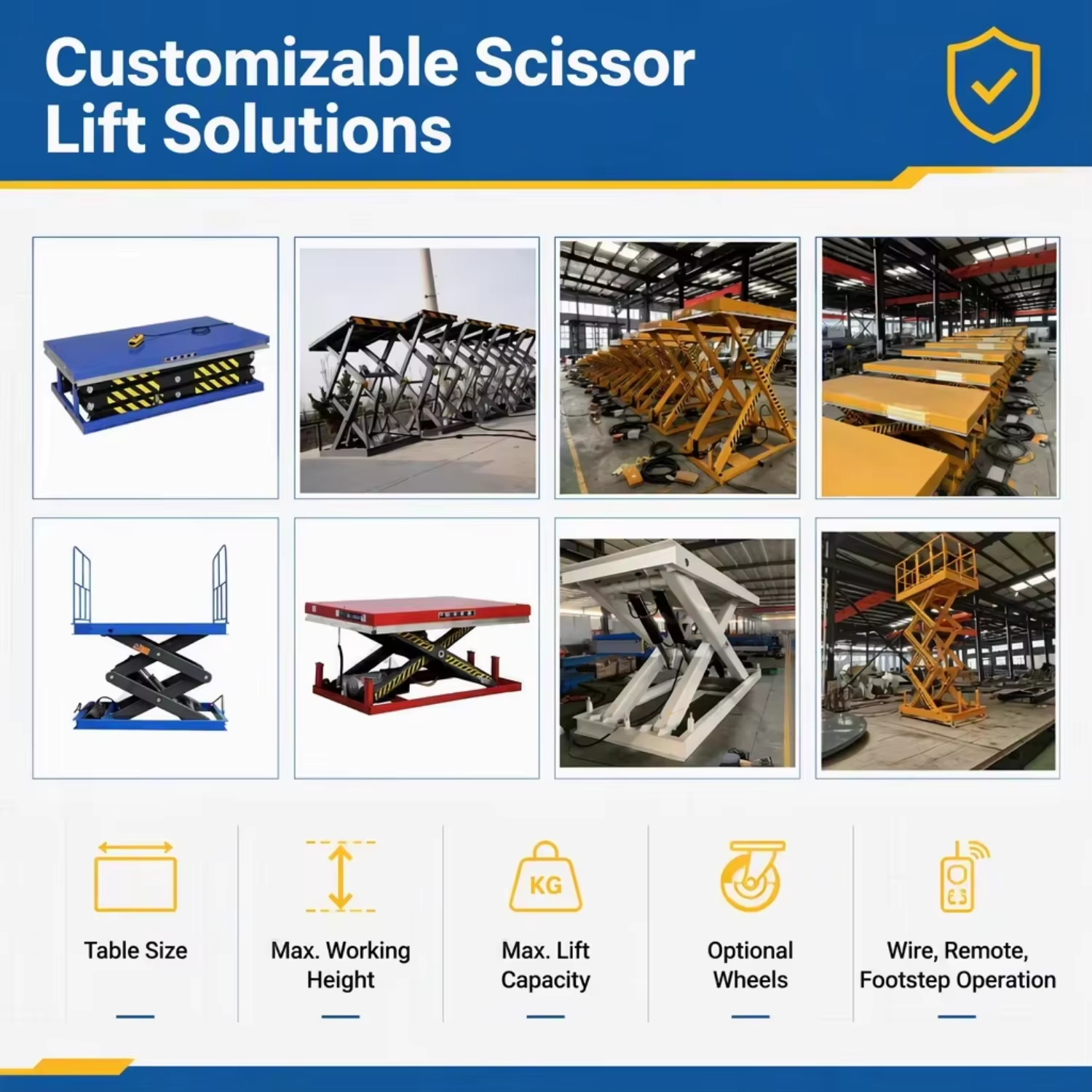

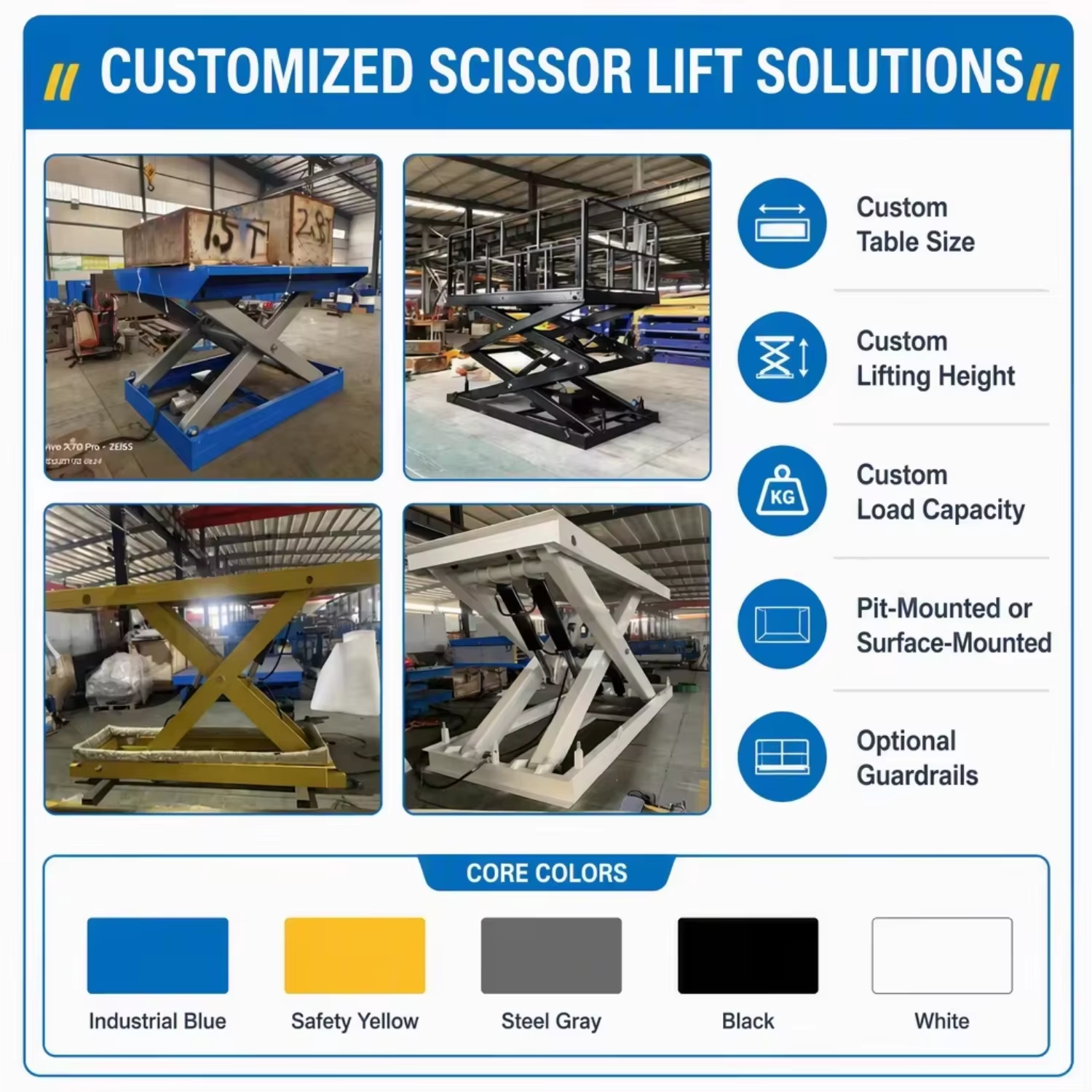

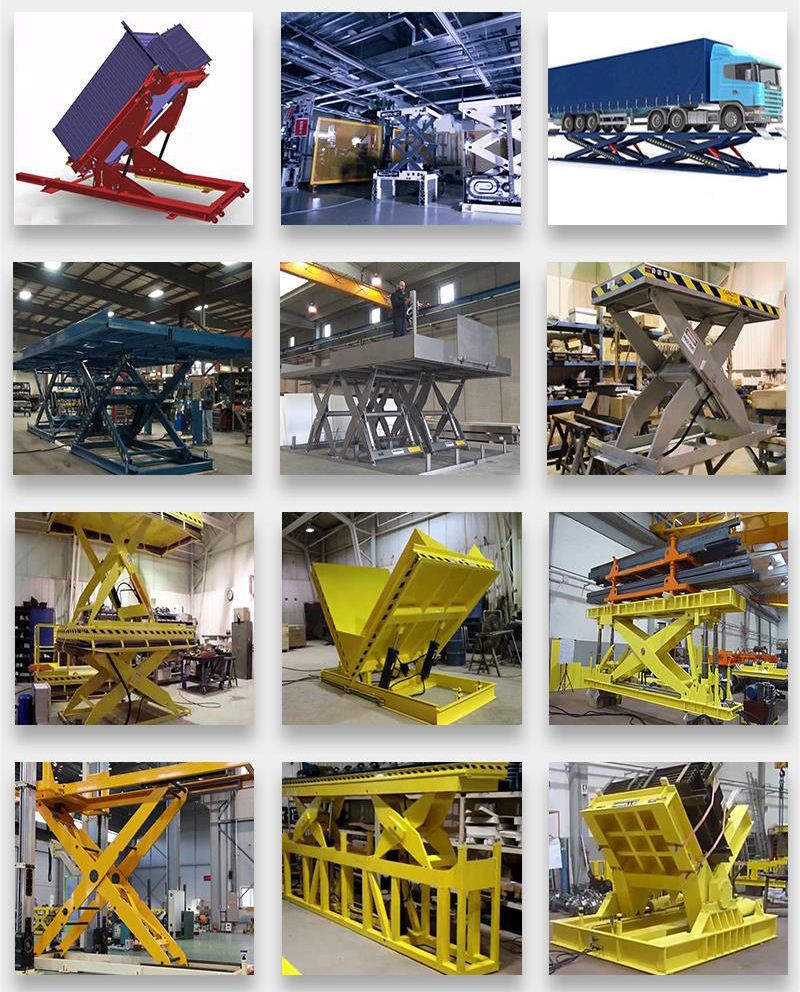

1 / 4 · CUSTOM CARGO LIFT EXAMPLES

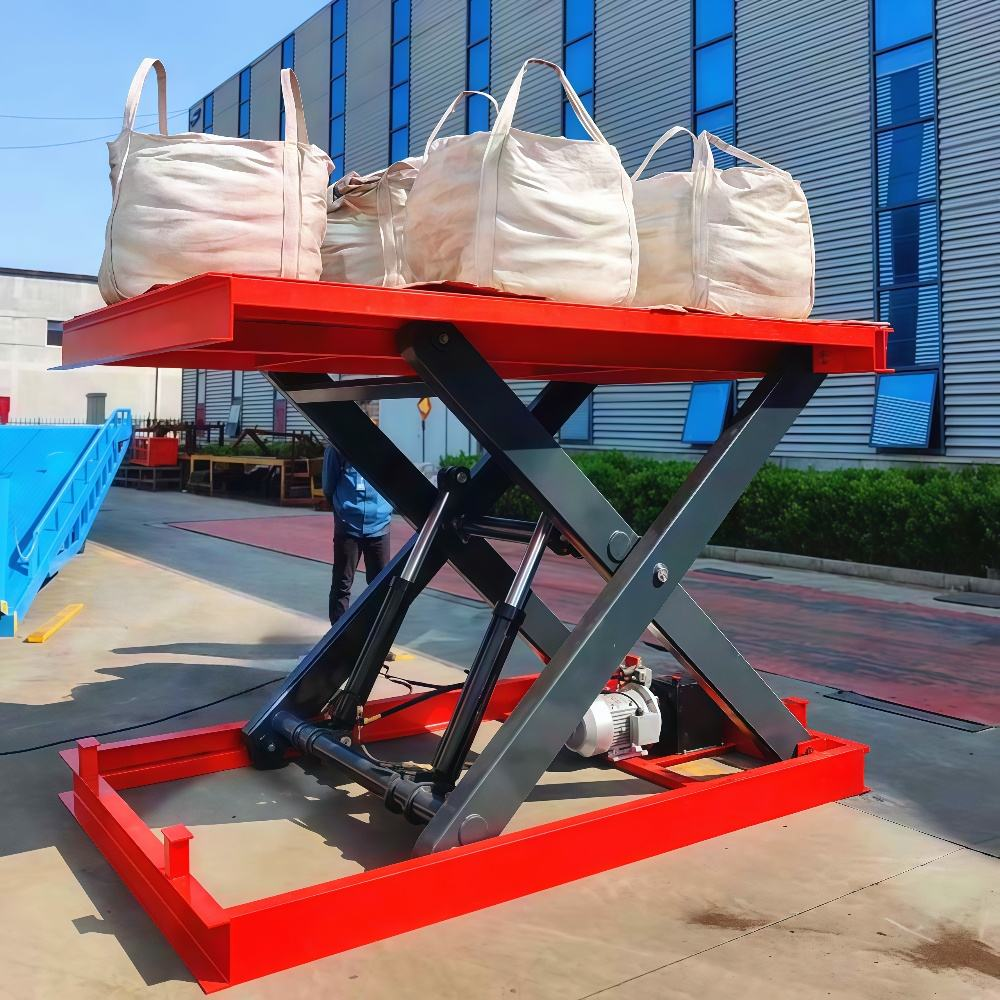

2 / 4 · CUSTOM CARGO LIFT EXAMPLES

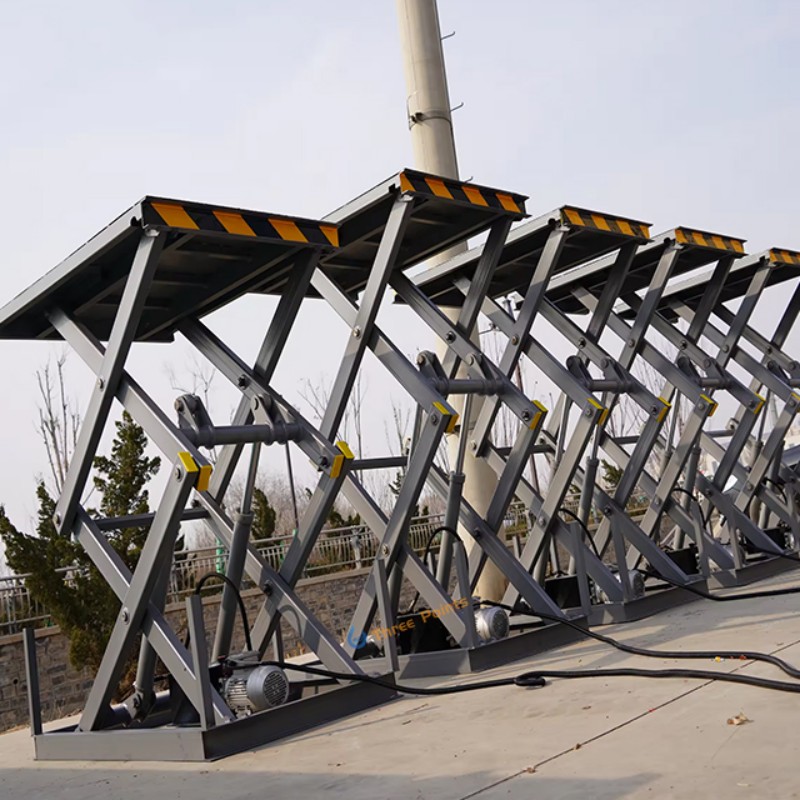

3 / 4 · CUSTOM CARGO LIFT EXAMPLES
4 / 4 · CUSTOM CARGO LIFT EXAMPLES

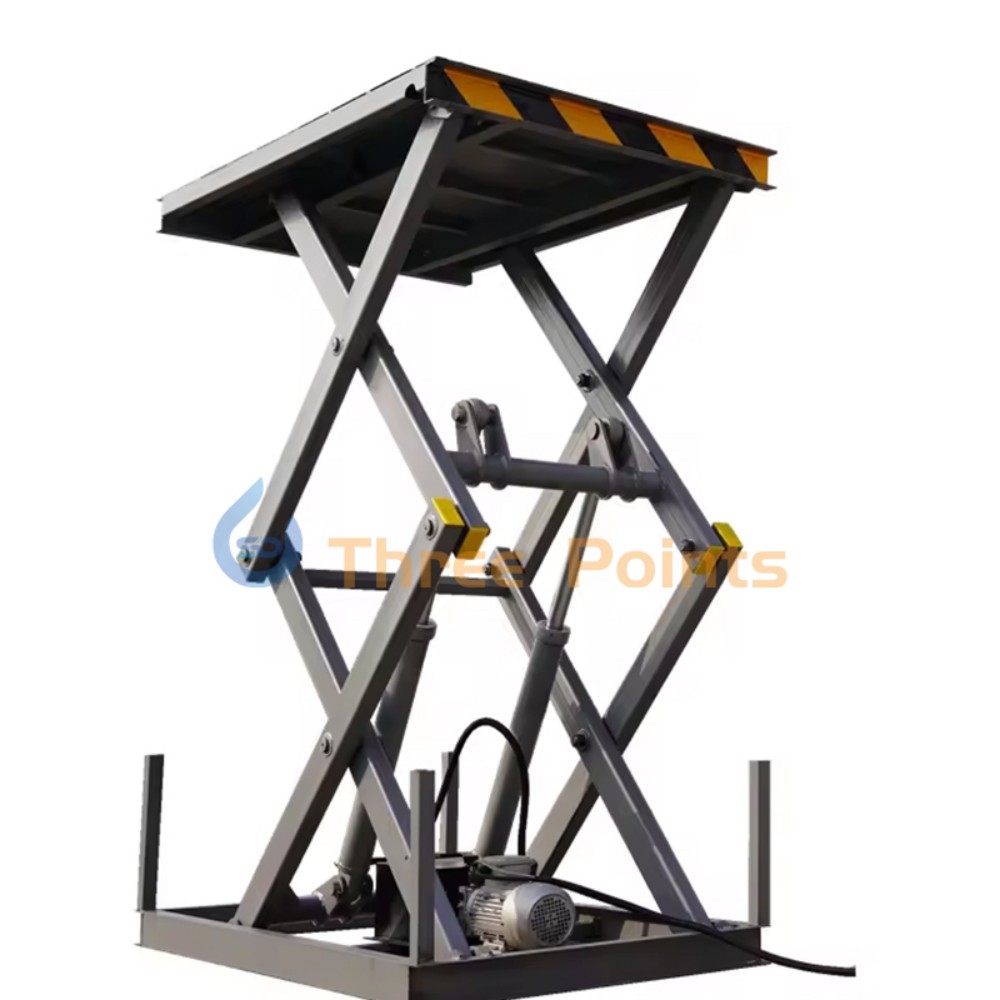

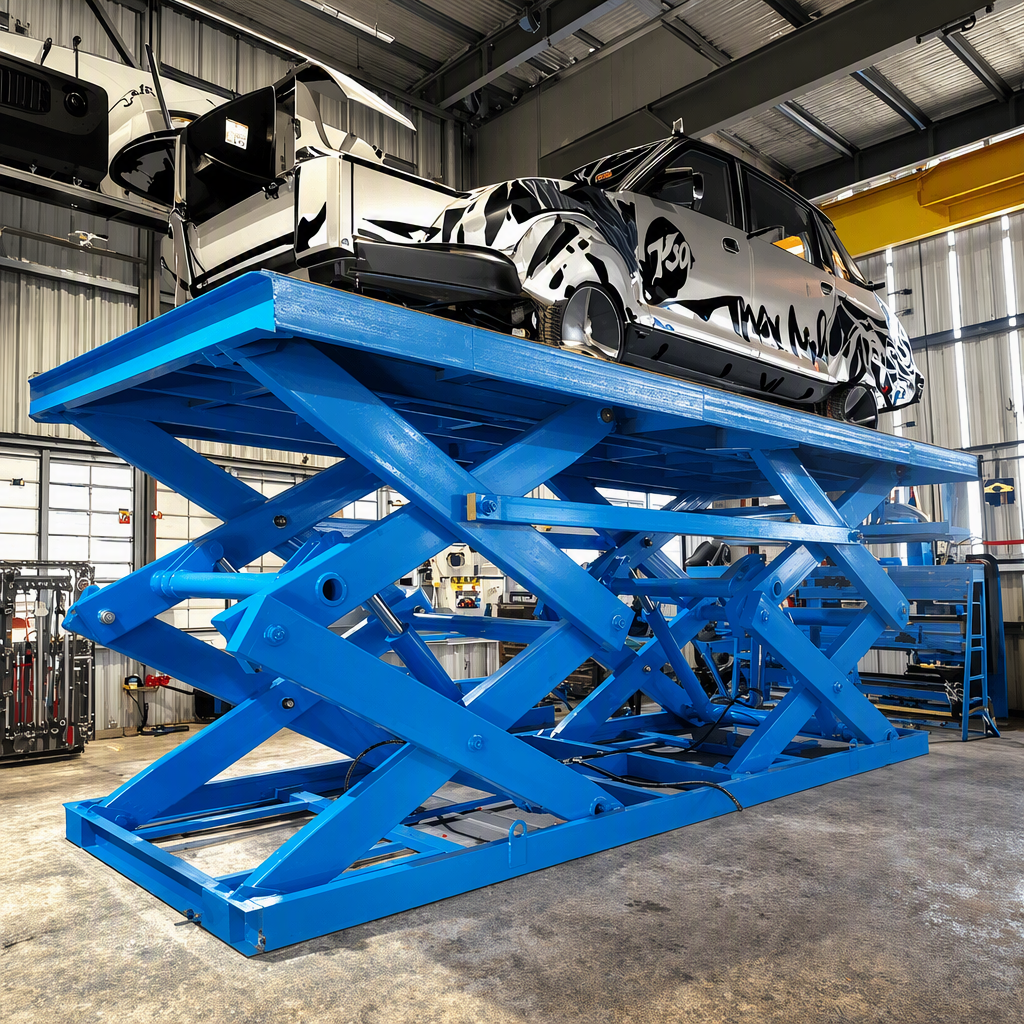

Custom Fixed Scissor Cargo Lift
CUSTOM FIXED SCISSOR LIFT / GOODS HANDLING
A stationary hydraulic scissor platform specified for your cargo, lifting height and installation space. Our main focus is custom cargo lifting solutions for warehouses, workshops and production facilities.
Custom loadCargo & handling
Custom sizePlatform & layout
Custom travelHeight & installation
Selected compact standard models are also available from stock. See the separate standard model section below.
CUSTOM CARGO LIFTINGPLATFORM, LOAD & HEIGHT TO SUITCOMPACT STANDARD OPTIONS AVAILABLE
CUSTOM SOLUTIONS FIRST
Built around the goods you move.
Define the load and working levels first. We will review the platform, scissor arrangement and installation layout for your application.
Platform & travel
Specify the required usable platform size, lowered height and raised height to suit your goods and working levels.
Installation & operation
Discuss pit-mounted or above-floor installation, access directions, available power and controls with the site layout.
CUSTOM PROJECT REQUIREMENTS
Six details to start your custom proposal.
Load & goods
Maximum cargo weight, dimensions and loading method.
Platform dimensions
Required usable length and width, including loading clearances.
Lifting heights
Required lowered height, raised height and working levels.
Installation area
Available footprint, pit dimensions and indoor or outdoor location.
Power & controls
Destination country, voltage, frequency, phase and operating positions.
Site documentation
Photos, drawings and any required access or guarding arrangements.
Custom capacity, dimensions, lifting heights and supply scope are confirmed for each project before ordering.
THREE POINTS / PRODUCT VIDEOS
Custom cargo lifts and compact standard models.
Two product demonstrations, with the custom solution and the standard stock range shown separately.
CUSTOM CARGO LIFT
Custom fixed scissor cargo lift
See a stationary cargo lifting application. Platform dimensions, capacity and lifting heights are specified for the project.
COMPACT STANDARD RANGE
Standard scissor lift table
See the compact standard product type. Refer to the model table below and ask us to confirm current stock for your selected configuration.
COMPACT STANDARD RANGE
Selected small-size models available from stock.
The yellow scissor lift table represents our compact standard range. The specifications below apply to these standard models only.
STANDARD MODEL OPTIONS
Need a compact lift table?
Choose a model that matches your load, platform size and required heights. We will confirm current stock, power configuration and dispatch timing for the selected model.
For a larger platform or a different lifting requirement, send us your project details for a custom solution.

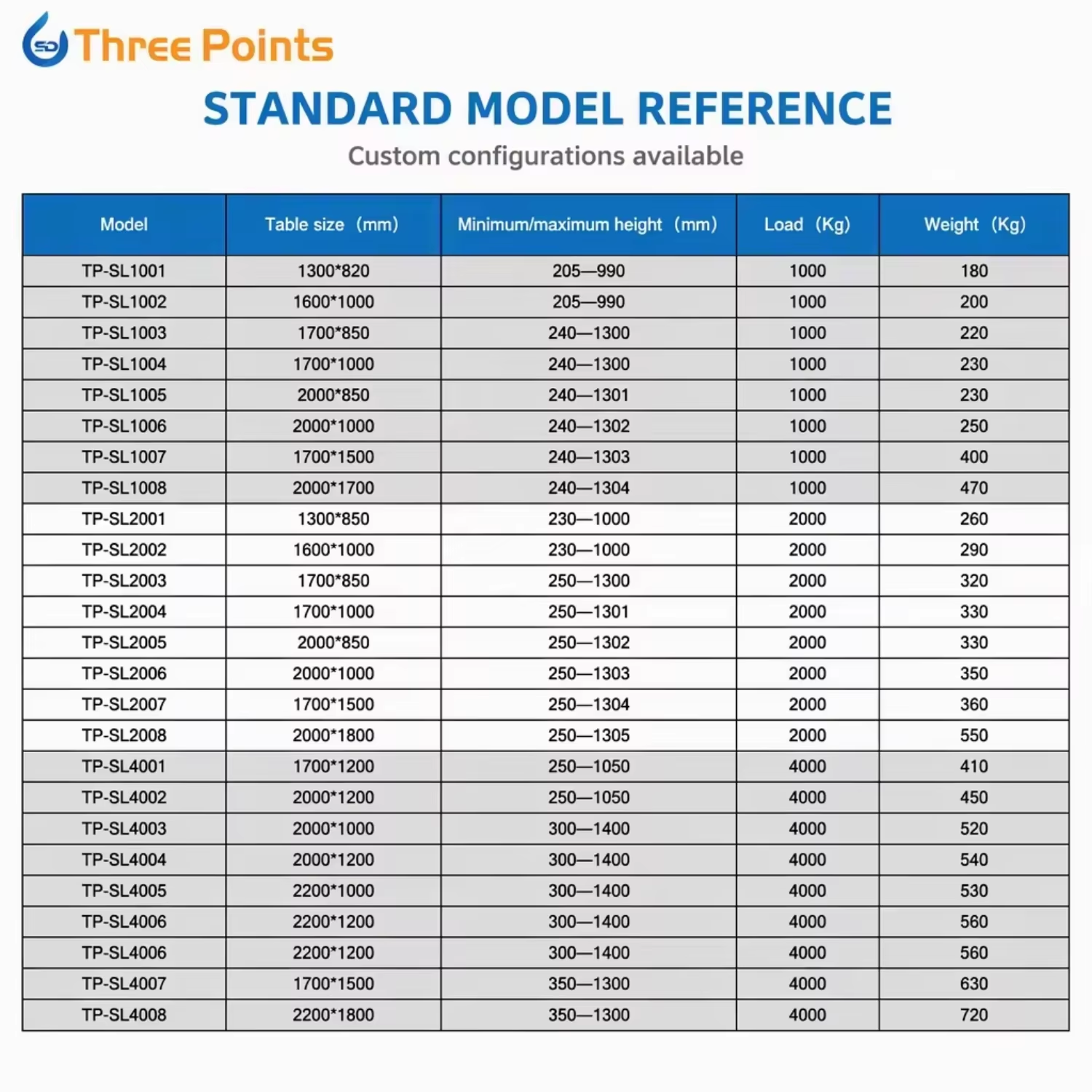

| Model | Platform size (mm) | Min. / max. height (mm) | Capacity (kg) | Weight (kg) |
|---|---|---|---|---|
| TP-SL1001 | 1300 × 820 | 205—990 | 1000 | 180 |
| TP-SL1002 | 1600 × 1000 | 205—990 | 1000 | 200 |
| TP-SL1003 | 1700 × 850 | 240—1300 | 1000 | 220 |
| TP-SL1004 | 1700 × 1000 | 240—1300 | 1000 | 230 |
| TP-SL1005 | 2000 × 850 | 240—1301 | 1000 | 230 |
| TP-SL1006 | 2000 × 1000 | 240—1302 | 1000 | 250 |
| TP-SL1007 | 1700 × 1500 | 240—1303 | 1000 | 400 |
| TP-SL1008 | 2000 × 1700 | 240—1304 | 1000 | 470 |
| TP-SL2001 | 1300 × 850 | 230—1000 | 2000 | 260 |
| TP-SL2002 | 1600 × 1000 | 230—1000 | 2000 | 290 |
| TP-SL2003 | 1700 × 850 | 250—1300 | 2000 | 320 |
| TP-SL2004 | 1700 × 1000 | 250—1301 | 2000 | 330 |
| TP-SL2005 | 2000 × 850 | 250—1302 | 2000 | 330 |
| TP-SL2006 | 2000 × 1000 | 250—1303 | 2000 | 350 |
| TP-SL2007 | 1700 × 1500 | 250—1304 | 2000 | 360 |
| TP-SL2008 | 2000 × 1800 | 250—1305 | 2000 | 550 |
| TP-SL4001 | 1700 × 1200 | 250—1050 | 4000 | 410 |
| TP-SL4002 | 2000 × 1200 | 250—1050 | 4000 | 450 |
| TP-SL4003 | 2000 × 1000 | 300—1400 | 4000 | 520 |
| TP-SL4004 | 2000 × 1200 | 300—1400 | 4000 | 540 |
| TP-SL4005 | 2200 × 1000 | 300—1400 | 4000 | 530 |
| TP-SL4006 | 2200 × 1200 | 300—1400 | 4000 | 560 |
| TP-SL4007 | 1700 × 1500 | 350—1300 | 4000 | 630 |
| TP-SL4008 | 2200 × 1800 | 350—1300 | 4000 | 720 |
Standard model specifications are separate from custom project specifications. Confirm model availability and the final configuration in your quotation.
CARGO HANDLING APPLICATIONS
For storage, production and material transfer.
Warehouse handling
Discuss pallet and goods transfer between working levels, with the platform matched to your loading method.
Production workstations
Plan material positioning and transfer around the size and weight of components used in your process.
Loading & transfer areas
Review the available footprint, raised and lowered levels and access directions for the installation.
PRODUCT QUESTIONS
Choose with confidence.
Six key answers about custom cargo lifts and compact standard models.
Can you customize the fixed scissor lift for my cargo?
Yes. Our main focus is project-specific cargo lifts. Send the required load, platform size, lifting heights, installation layout and available power so we can review a suitable configuration.
Are standard models also available from stock?
Selected compact models are available from stock. The yellow lift table and standard model table describe this range. Ask us to confirm stock for the exact model and configuration before ordering.
Does the standard model table apply to custom lifts?
The table applies only to the compact standard range. A custom cargo lift is quoted with its own agreed capacity, platform dimensions, lowered height and raised height.
Can the lift be installed in a pit or above the floor?
Send the site drawings, floor levels, available pit and loading method. We will review the installation arrangement and required site preparation for your proposed lift.
What power and safety arrangements should I confirm?
Provide the destination country, voltage, frequency and phase. Controls, guarding, access and other required provisions will be reviewed for the application and listed in the agreed proposal.
How do I obtain a quote and delivery estimate?
For a custom lift, send the six project details above. For a standard lift, send the model, quantity, required power and destination. We will confirm configuration, price, stock or production lead time, freight and support terms in the quotation.
FACTORY DIRECT ENQUIRY
Let’s plan your custom cargo lift.
Send your cargo weight, platform size, required lifting heights, site layout and destination. For a compact standard model, include the model number and quantity.
