Choose your track type
Steel tracks are supplied as standard. Optional rubber tracks let you specify a different chassis setup for your ground surface and access requirements.

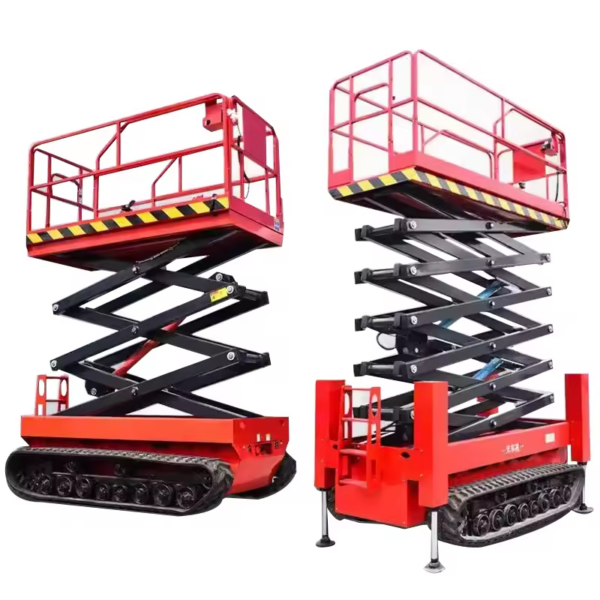

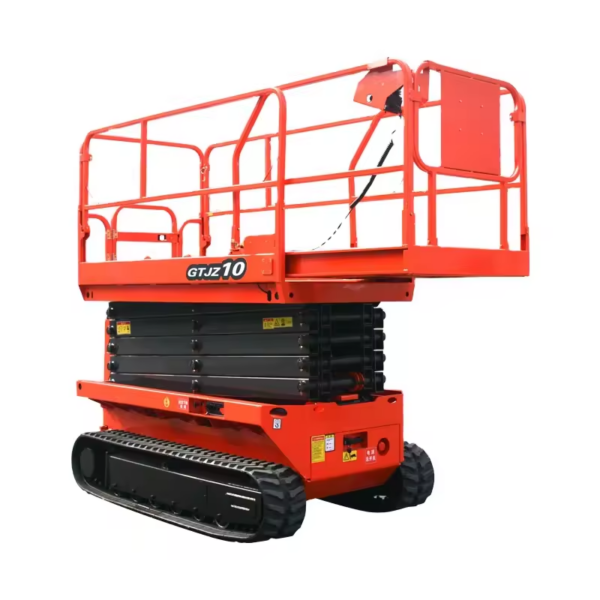

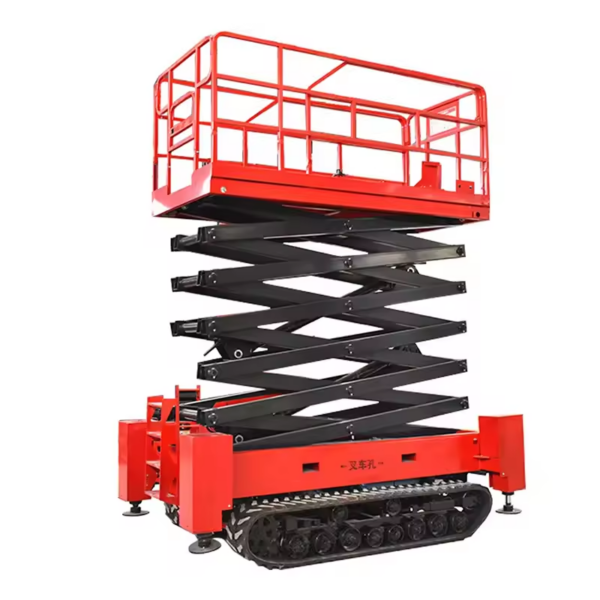

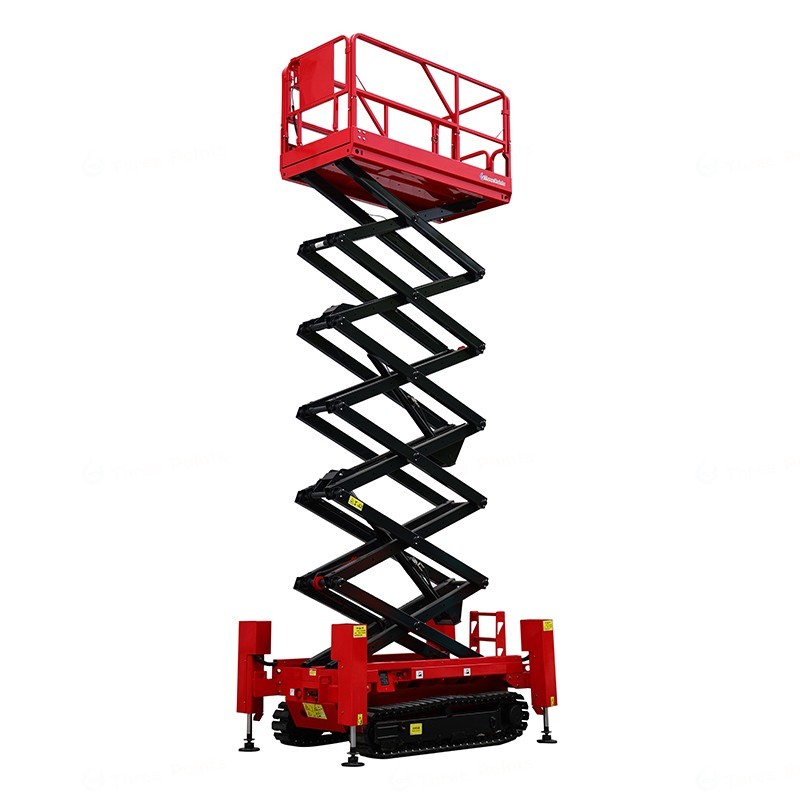

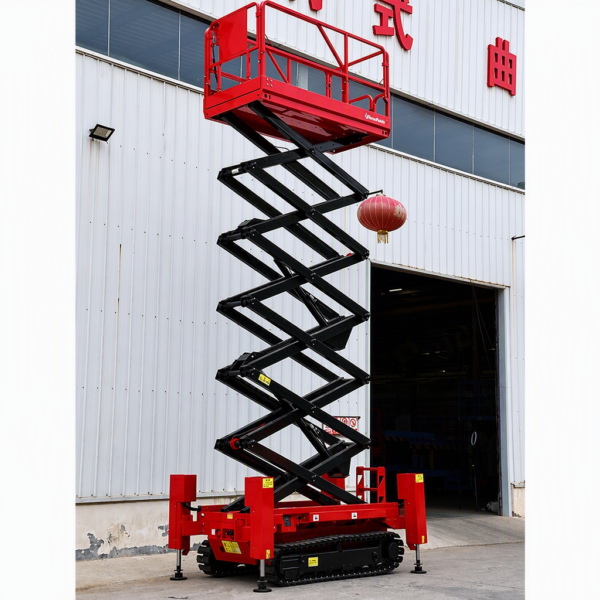

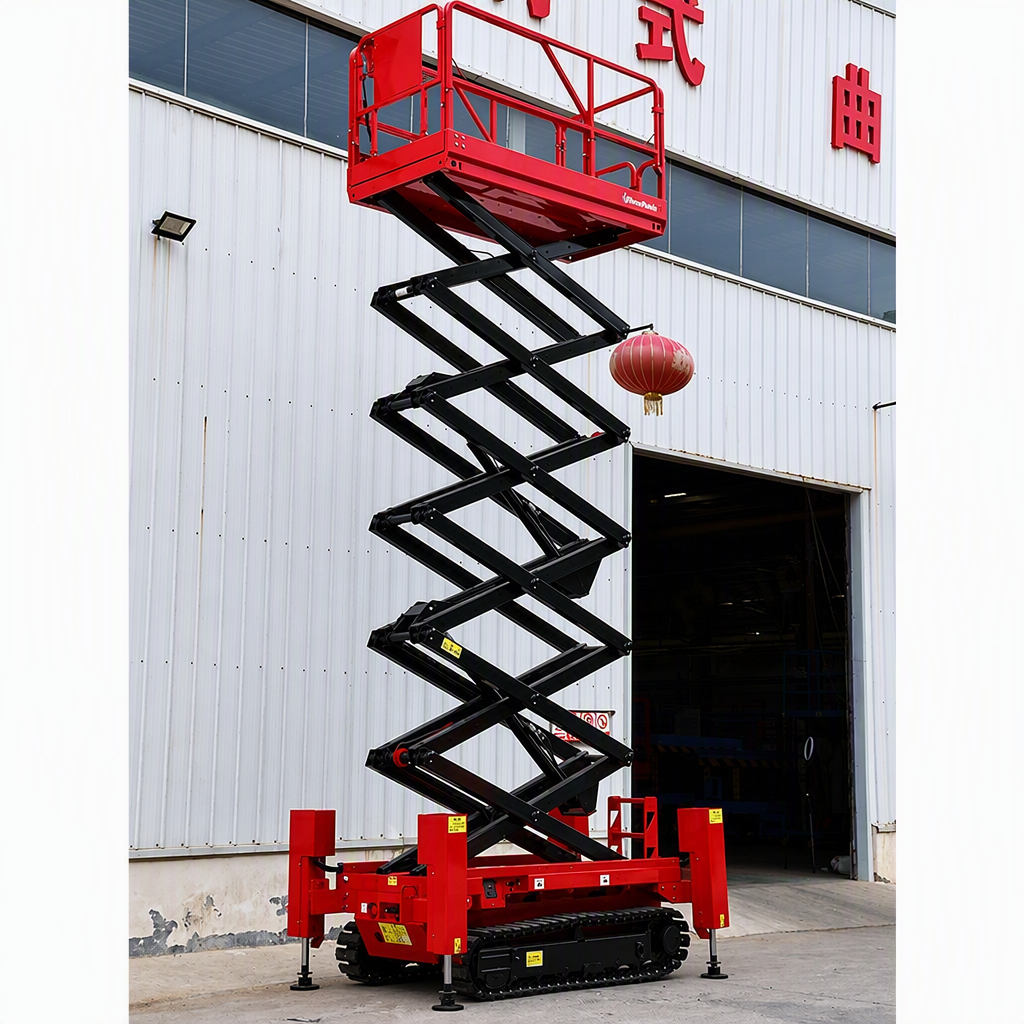

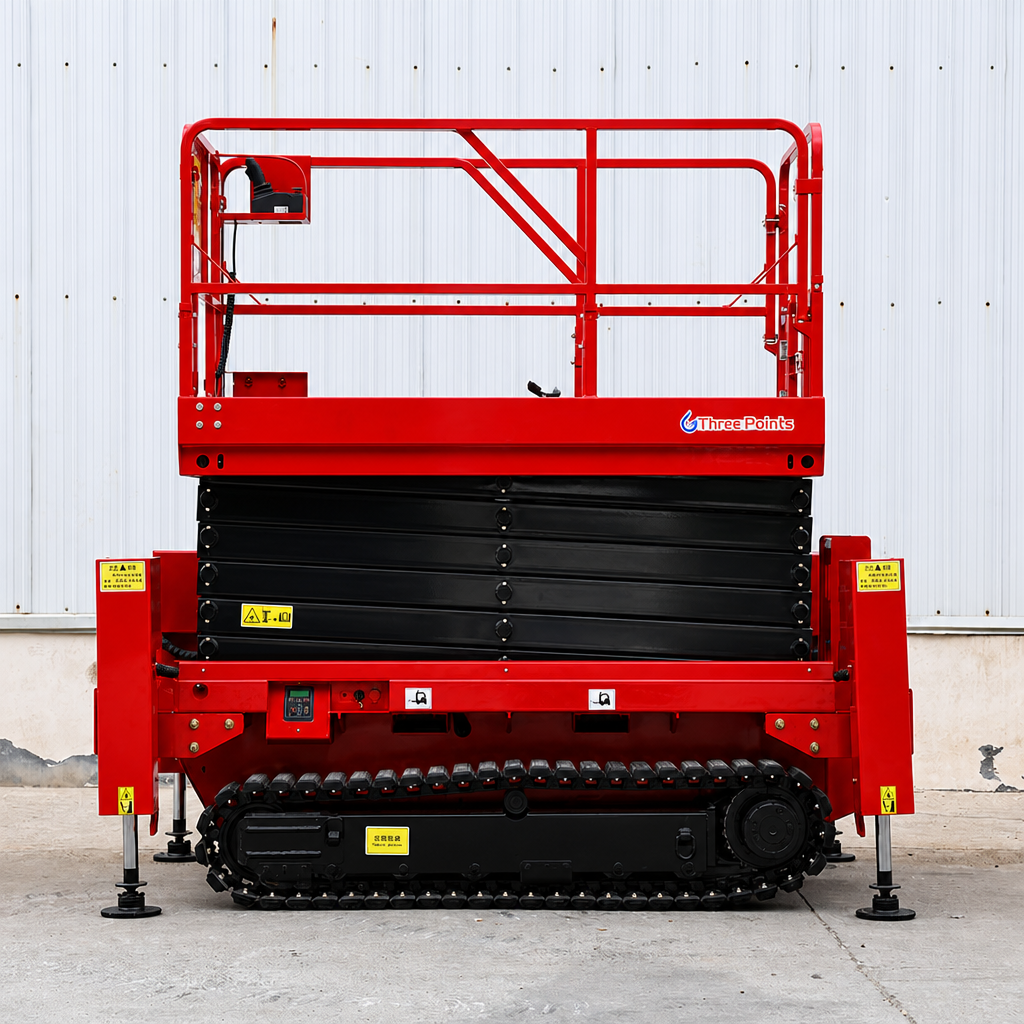

Crawler Scissor Lift
CRAWLER SCISSOR LIFT
Tracked access for elevated maintenance and installation work. Compare six models and select the track, outrigger and battery configuration for your working site.
6–16 mWorking height
320 kgRated load
6 modelsSteel · Rubber tracks
- Steel tracks as standard; rubber tracks optional

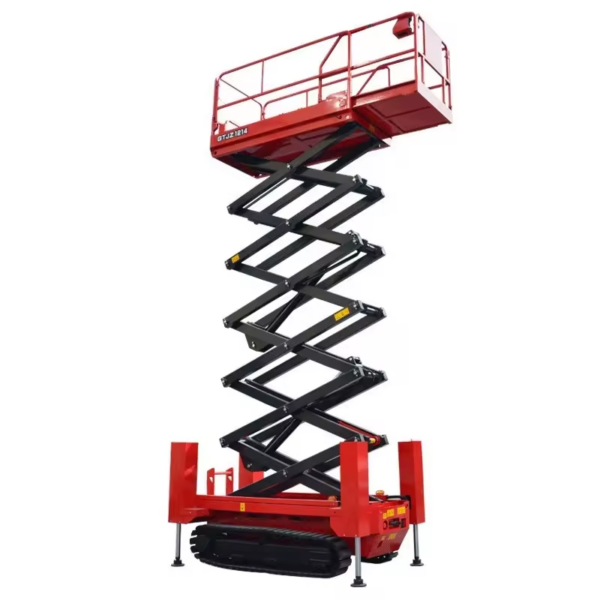

- Hydraulic outriggers with one-touch leveling
- 48 V, 300 Ah lithium battery option

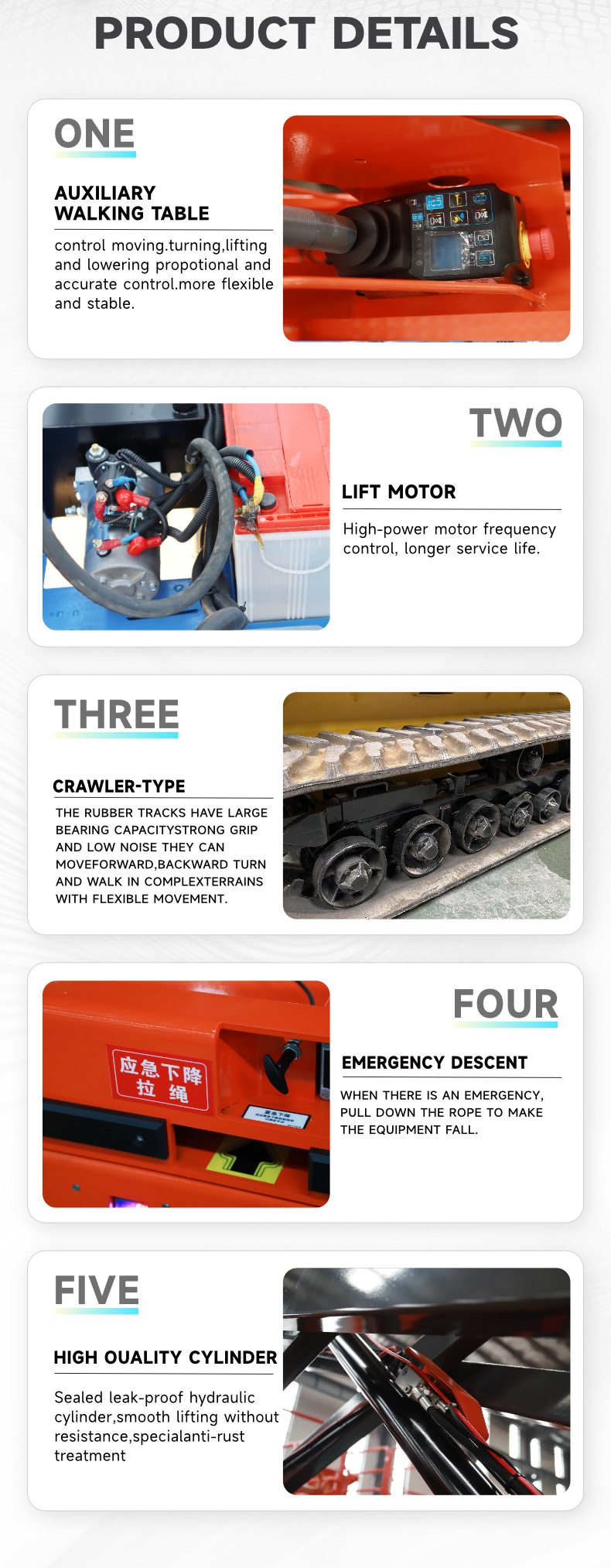

Product Details
THREE POINTS / PRODUCT VIDEO

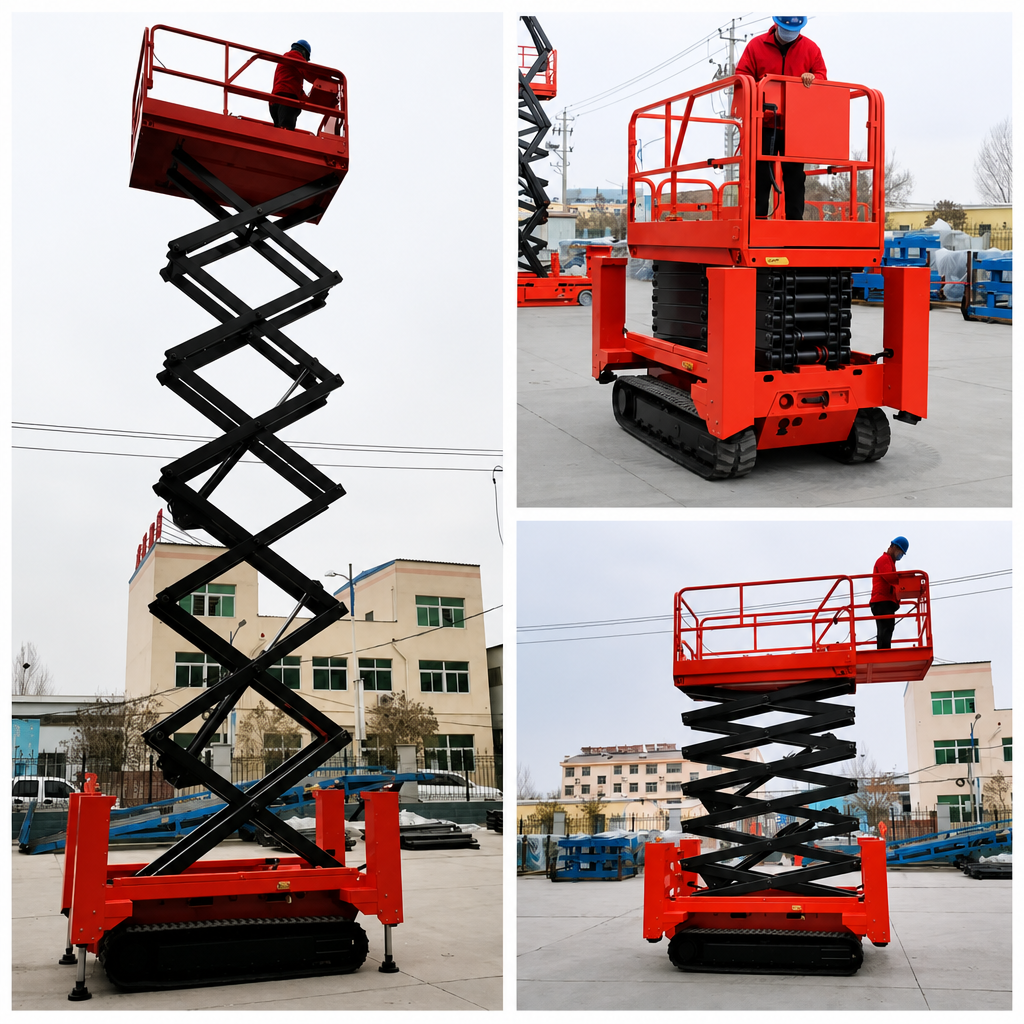

See the crawler lift in action.
Explore the tracked chassis, scissor structure and platform operation.
PRODUCT DEMONSTRATION · CRAWLER SCISSOR LIFT
TRACKED ACCESS FOR YOUR SITE
Choose the setup for your working environment.
- Steel tracks as standard; rubber tracks optional
- Hydraulic outriggers with one-touch leveling
- Compare working height, dimensions and machine weight
6–16 M WORKING HEIGHT320 KG RATED LOADSTEEL & RUBBER TRACK OPTIONS
BUILT AROUND YOUR WORKING SITE
Tracked travel. Supported lifting.
A crawler scissor lift for elevated maintenance and installation work. Match the working height, track type and outrigger setup to your access route and operating area.
Level before lifting
The standard hydraulic outrigger package provides one-touch leveling. Check ground bearing capacity and follow the setup procedure for your selected model.
Space for the task
A 320 kg rated load across the listed range supports operators and tools within the machine’s limits. Compare platform size and reach before choosing.

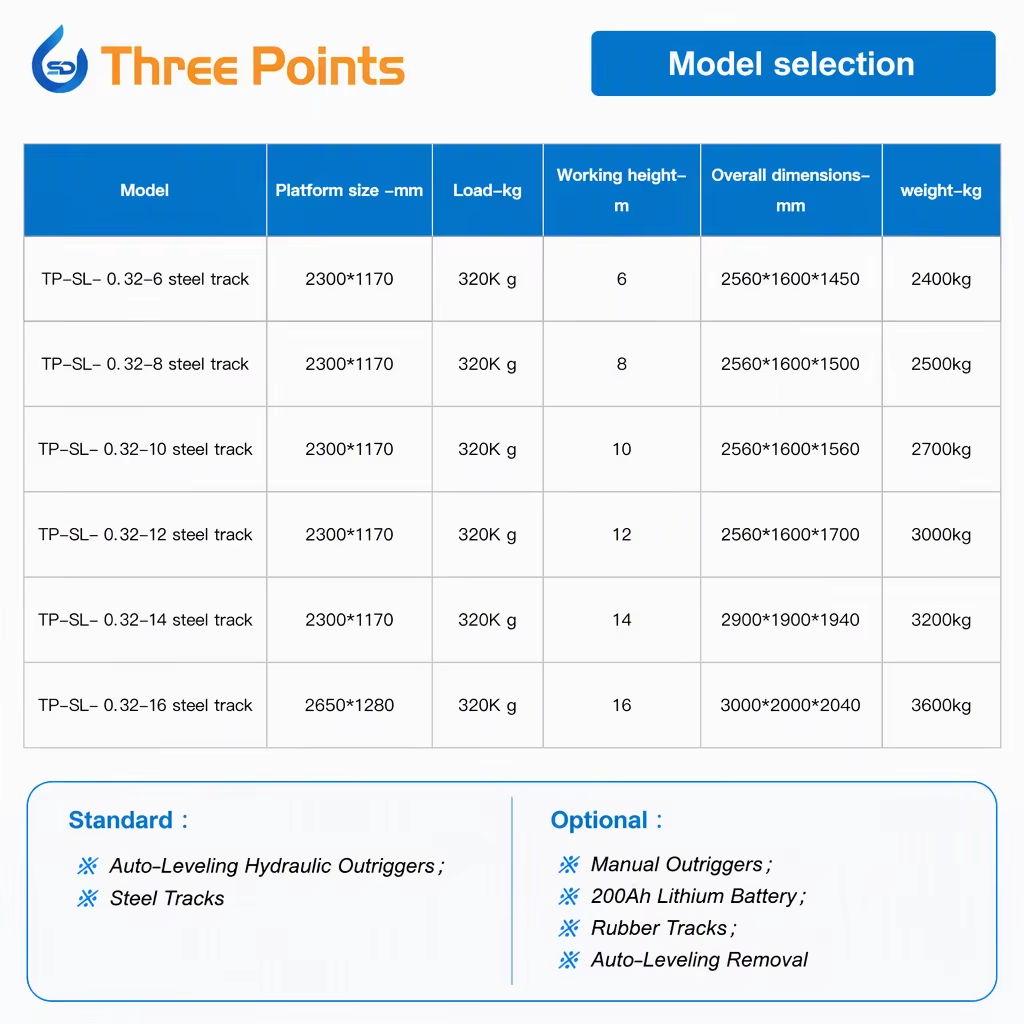

MODEL COMPARISON
Find the right crawler lift for your job.
Compare six models by working height, platform size, dimensions and track configuration weight.
| Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
Weight, rubber tracks (kg) |
Weight, steel tracks (kg) |
|---|---|---|---|---|---|---|
| TP-SL-0.32-6 steel track | 6 | 320 | 2300 × 1170 | 2900 × 1900 × 1800 | 2700 | 2900 |
| TP-SL-0.32-8 steel track | 8 | 320 | 2300 × 1170 | 2900 × 1900 × 1925 | 2850 | 3050 |
| TP-SL-0.32-10 steel track | 10 | 320 | 2300 × 1170 | 2900 × 1900 × 2050 | 2950 | 3200 |
| TP-SL-0.32-12 steel track | 12 | 320 | 2300 × 1170 | 2900 × 1900 × 2175 | 3200 | 3450 |
| TP-SL-0.32-14 steel track | 14 | 320 | 2300 × 1170 | 2900 × 1900 × 2300 | 3400 | 3600 |
| TP-SL-0.32-16 steel track | 16 | 320 | 2650 × 1280 | 3000 × 2000 × 2300 | 3600 | 3800 |
Working height is listed as provided in the model specification sheet and is not platform height. Dimensions and weights should be confirmed for the final track, outrigger and battery configuration.
CONFIGURATION CHOICES
Build your specification around the site.
Start with the standard package, then discuss the track, outrigger and battery options for your application.
Ready to specify
- Steel crawler tracks
- Hydraulic outriggers with one-touch leveling
- 320 kg rated platform load
Match your requirements
- Rubber crawler tracks
- Standard manual outriggers
- Manually extendable outriggers
- 48 V, 300 Ah lithium battery
Confirm the supplied equipment and compatibility of selected options in the quotation.
EVERYDAY APPLICATIONS
Access for outdoor work areas.
Construction & installation
Elevated installation and building maintenance with a suitable ground and outrigger setup.
Outdoor facilities
Access lighting, overhead services and equipment inspection points.
Industrial maintenance
Support servicing and installation work where a tracked access platform suits the site.
Assess ground bearing capacity, access gradients, operating slope and wind conditions against the selected model’s manual before use.
PRODUCT QUESTIONS
Choose with confidence.
Six essential answers about selection, tracks, leveling and ordering.
SELECTION · CONFIGURATION · SUPPORT
Which crawler scissor lift model should I choose?
Compare the required working height, the combined weight of operators and tools, platform size and access space. This range offers 6–16 m working height and a 320 kg rated load. Send your job details and site photos so we can help you select a model.
Should I choose steel tracks or rubber tracks?
Steel tracks are the standard configuration in this range; rubber tracks are available as an option. Tell us about your ground surface and travel route so we can discuss the suitable track type. The comparison table lists machine weights for both versions.
Does it include automatic leveling outriggers?
The standard configuration includes hydraulic outriggers with one-touch leveling and steel tracks. Manual and manually extendable outrigger configurations are also listed as alternatives. Confirm the supplied outrigger package in your quotation.
Can I use it on slopes or uneven ground?
Crawler travel and elevated operation have different limits. Before use, confirm the permitted ground conditions, travel gradient, leveling requirements and wind rating for the selected model. Set up the outriggers as specified in the operating manual; do not assume the lift can be raised on any slope.
What battery options are available?
A 48 V, 300 Ah lithium battery is listed as an option. Battery equipment, charger input and operating time depend on the chosen configuration. Tell us your local power supply and usage pattern so we can confirm the package.
What should I send for a quote, delivery and after-sales details?
Send your preferred model or working height, track and outrigger preferences, quantity and destination port or address. We will confirm machine weight, packing, lead time, shipping terms and written warranty and support details in the offer.
FACTORY DIRECT ENQUIRY
Let’s specify your crawler lift.
Send your working height, site conditions, preferred track and outrigger setup, quantity and destination. Ask for the model sheet and a quotation for your chosen configuration.
