Mobile positioning
Choose the movement arrangement for your site. Assisted travel and trailer configurations are available as options.

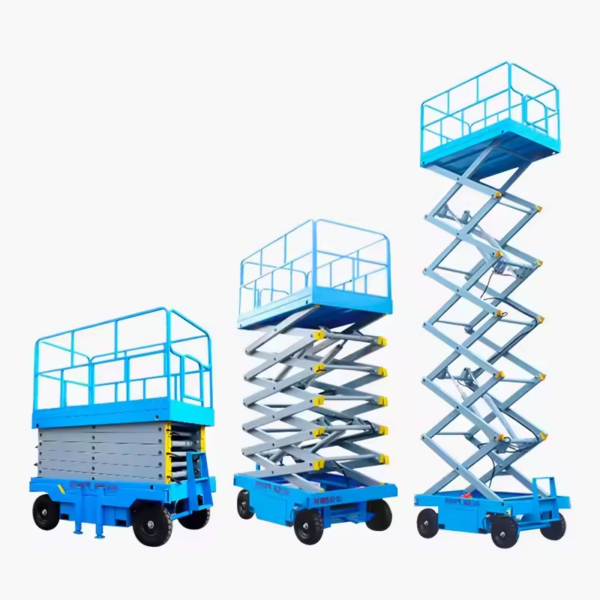

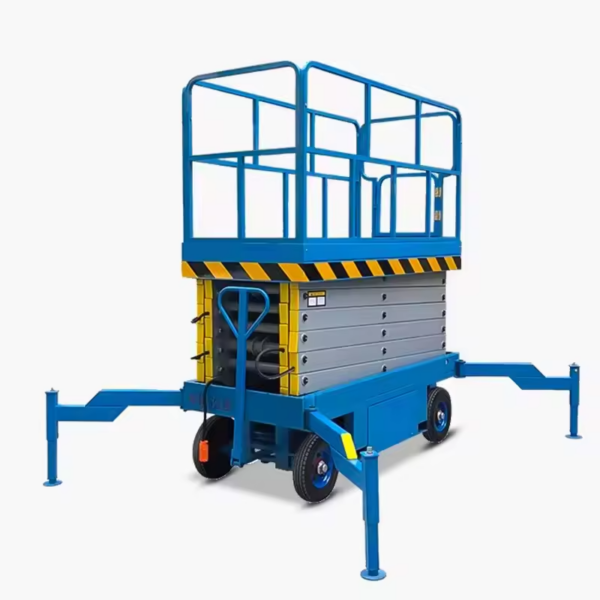

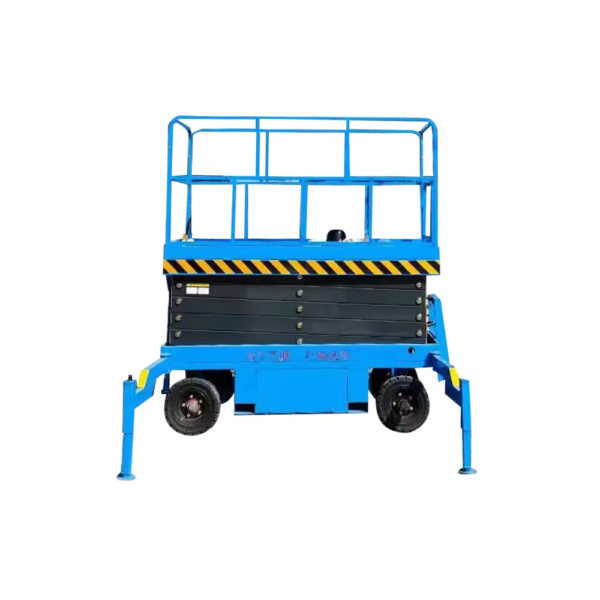

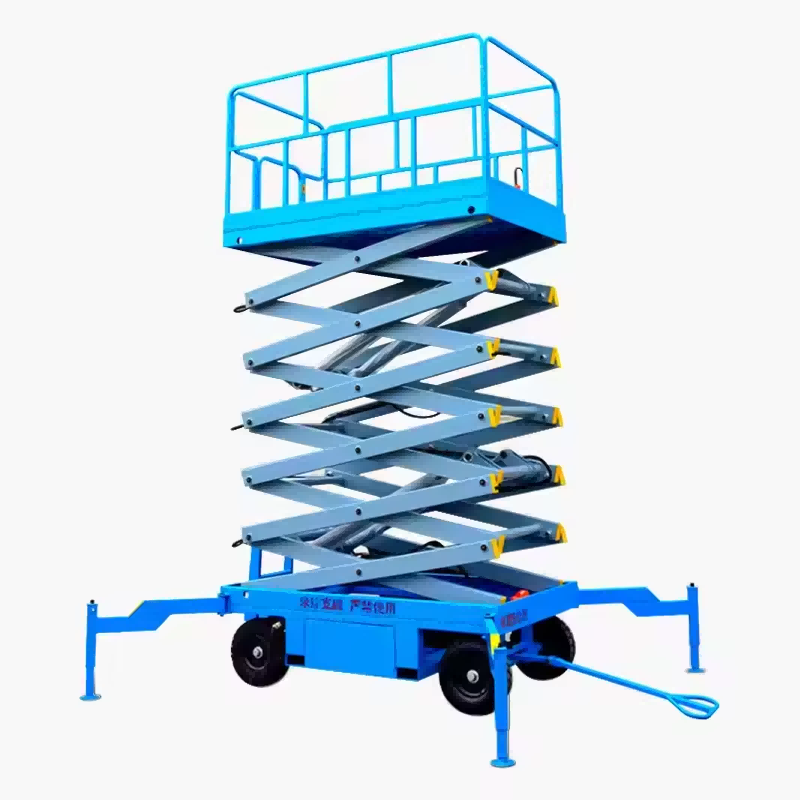

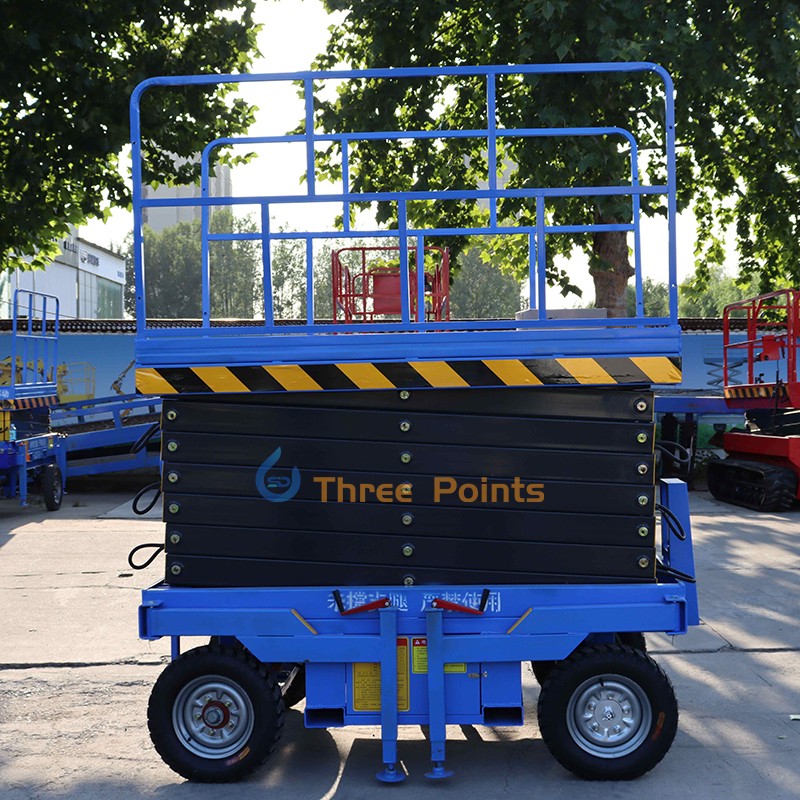

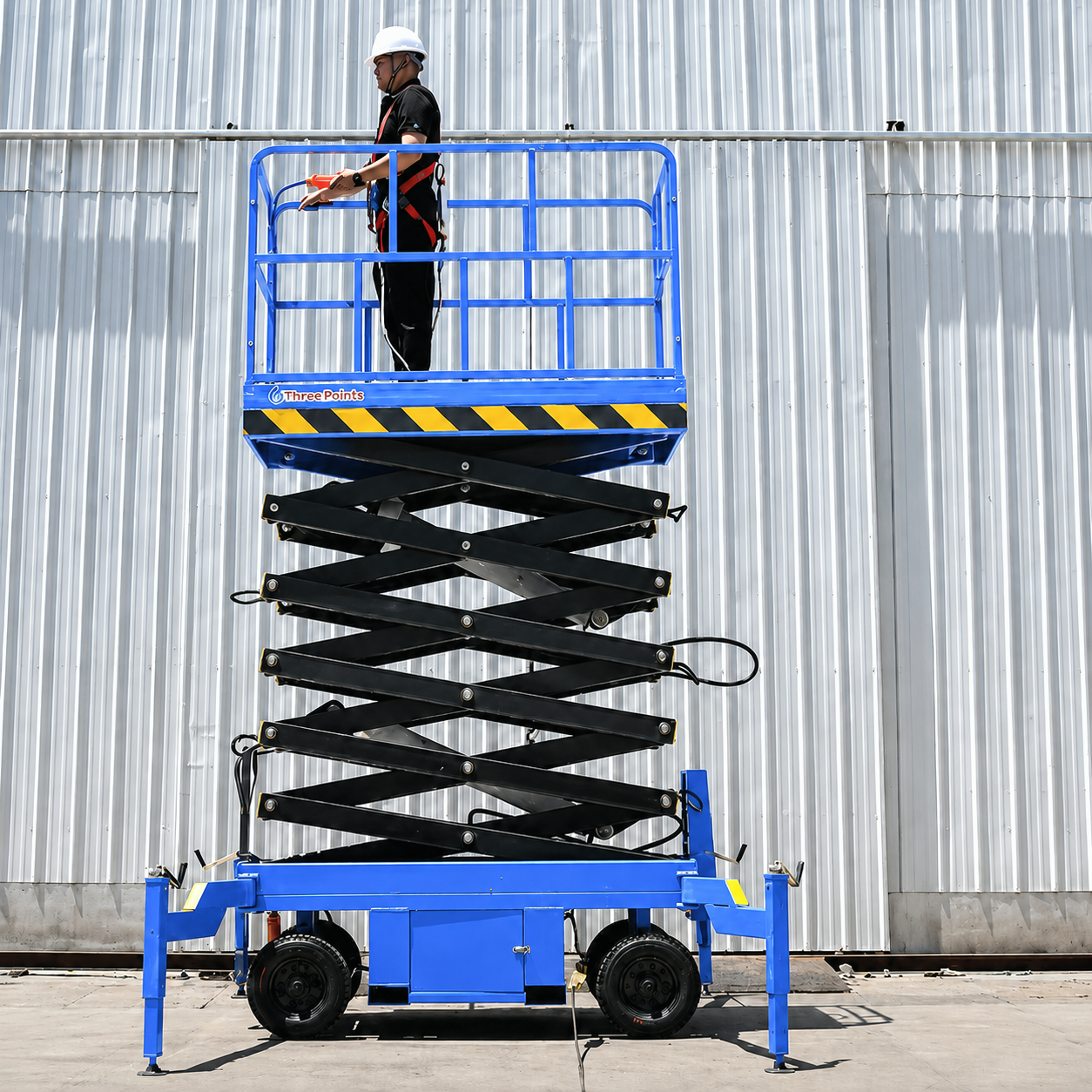

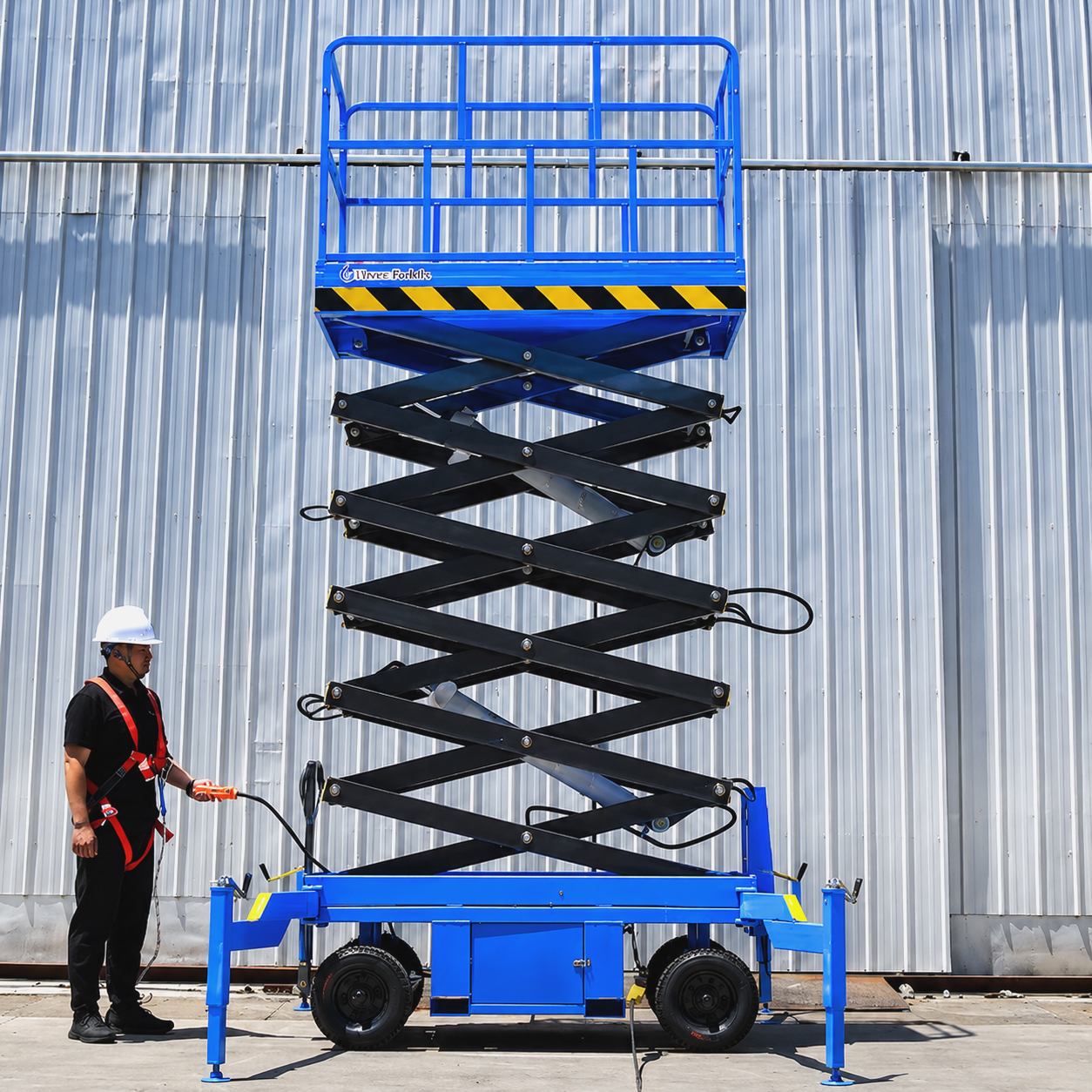

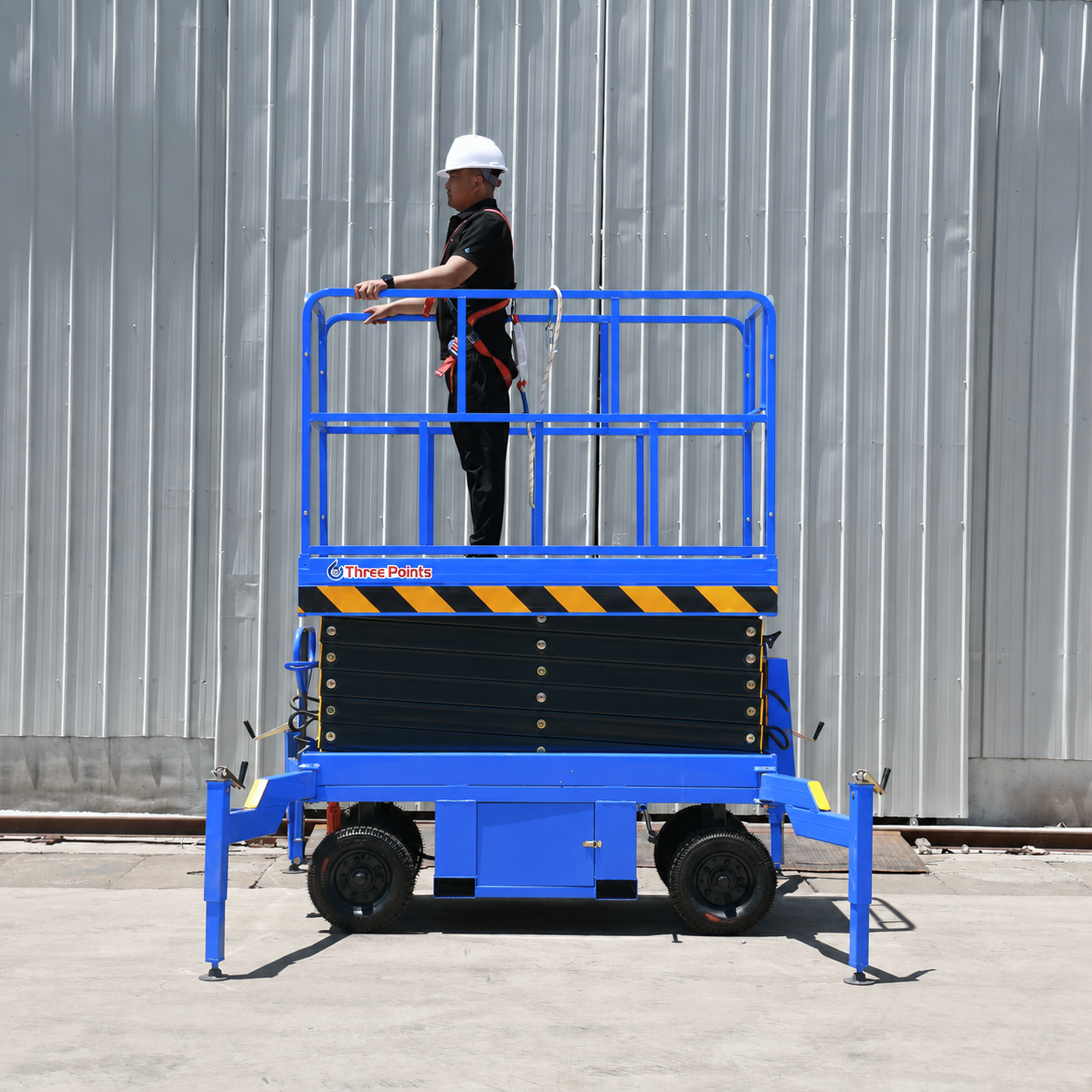

Mobile Scissor Lift
MOBILE / TOWABLE SCISSOR LIFT
Elevated access for maintenance and installation. Compare 29 models by working height, rated load and platform size, then select your power and movement options.
6–26 mWorking height
300–3000 kgModel load range
29 modelsMultiple load ranges
- Mobile / towable positioning
- Power and assisted-travel options
- Platform, tire and outrigger configurations
Product Details
THREE POINTS / PRODUCT VIDEO
See the mobile scissor lift in action.

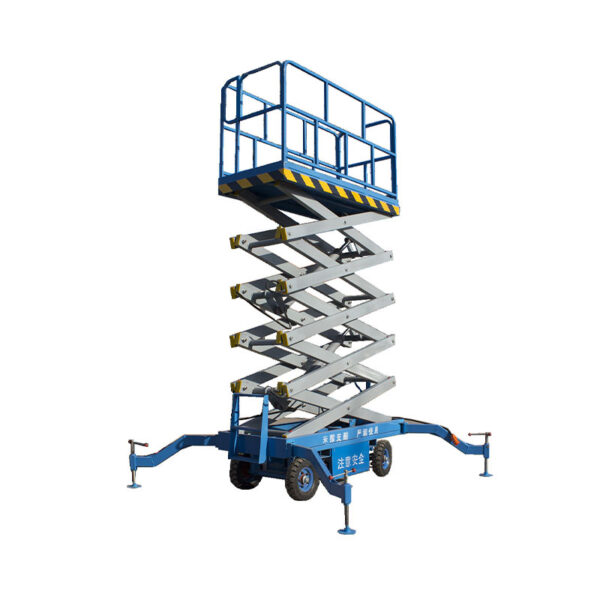

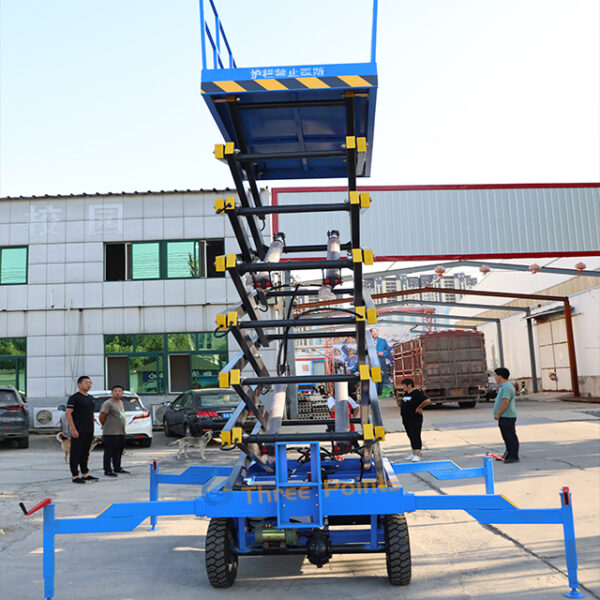

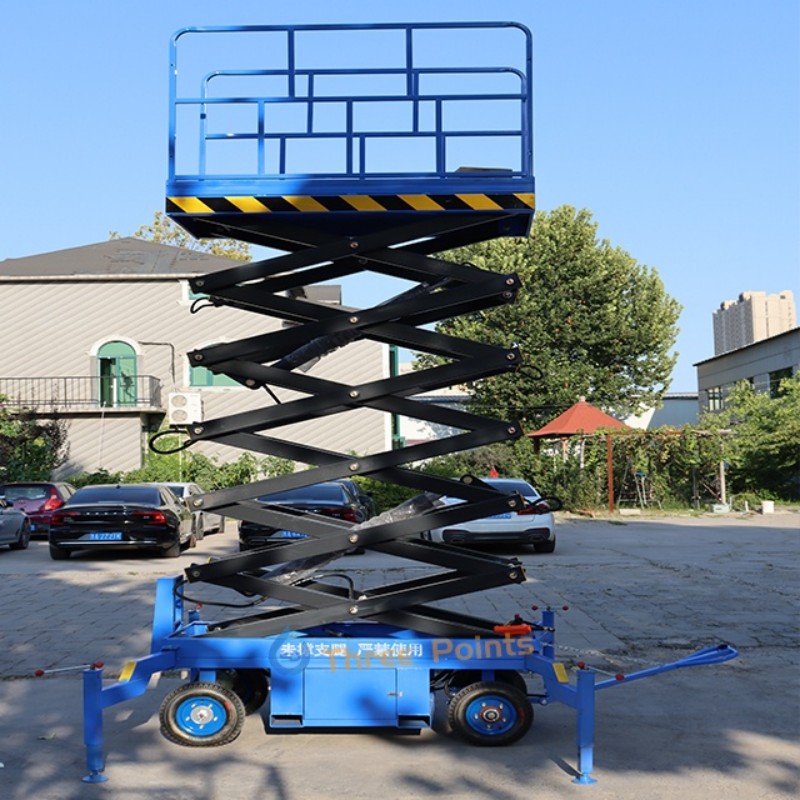

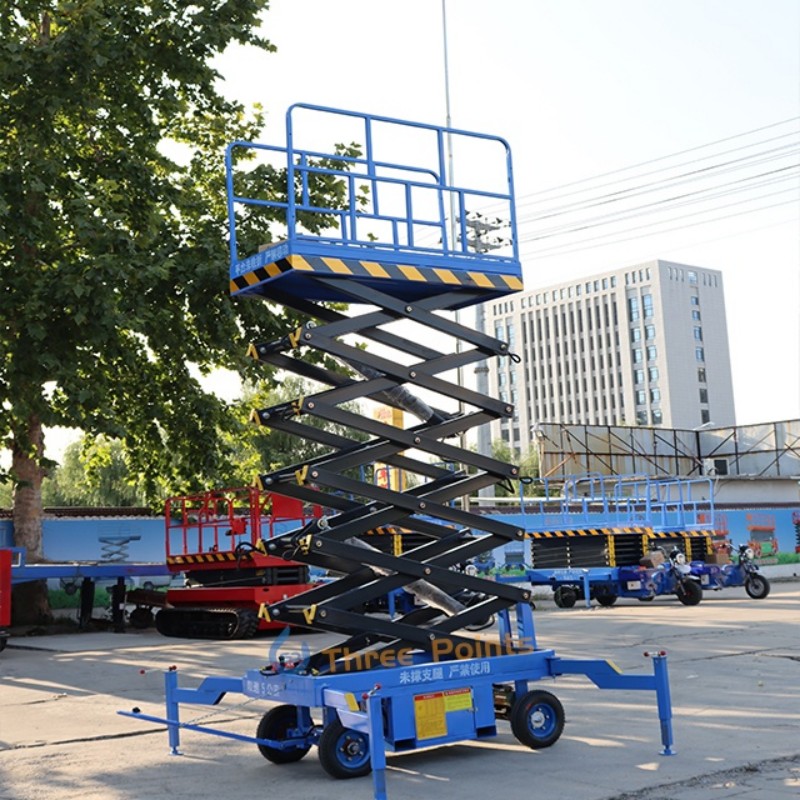

A closer look at the scissor structure and platform operation.
PRODUCT DEMONSTRATION · MOBILE SCISSOR LIFT
SELECT FOR YOUR WORKING SITE
Compare reach, load and power.
- 29 models across several load ranges
- Power and assisted-travel configurations available
- Platform, tire and outrigger options
6–26 M WORKING HEIGHT300–3000 KG MODEL RANGEPOWER & MOBILITY OPTIONS
BUILT AROUND YOUR WORKING DAY
Position. Set up. Lift.
A mobile / towable scissor lift for maintenance, installation and facility work. Select a model and power package around your task, access route and site supply.
A platform for your load
Compare the actual load rating and platform dimensions of each model, from smaller maintenance platforms to larger-capacity versions.
Power to suit the site
Discuss AC/DC, battery or diesel configurations according to your power supply and operating environment.
MODEL COMPARISON
Find the right lift for your job.
Compare all 29 models, grouped for easier selection. Working height, load and machine weight vary by model.
300–500 kg models
| Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
Machine weight (kg) |
|---|---|---|---|---|---|
| TP-ML0.5-6 | 6 | 500 | 1800 × 820 | 1980 × 960 × 1200 | 700 |
| TP-ML0.5-8 | 8 | 500 | 1800 × 820 | 1980 × 960 × 1280 | 750 |
| TP-ML0.5-10 | 10 | 500 | 1800 × 820 | 1980 × 960 × 1400 | 900 |
| TP-ML0.5-11 | 11 | 300 | 1800 × 820 | 1980 × 960 × 1400 | 950 |
| TP-ML0.5-12 | 12 | 500 | 2100 × 1200 | 2280 × 1350 × 1550 | 1260 |
| TP-ML0.3-13 | 13 | 300 | 2100 × 1200 | 2280 × 1340 × 1700 | 1400 |
| TP-ML0.5-14 | 14 | 500 | 2550 × 1500 | 2750 × 1670 × 1840 | 2160 |
| TP-ML0.5-16 | 16 | 500 | 2830 × 1500 | 3000 × 1730 × 1870 | 2500 |
| TP-ML0.5-18 | 18 | 500 | 2830 × 1500 | 3000 × 1730 × 2070 | 3000 |
| TP-ML0.5-20 | 20 | 500 | 3165 × 1600 | 3350 × 1800 × 2430 | 4000 |
| TP-ML0.5-22 | 22 | 500 | 3500 × 1800 | 3700 × 2200 × 3100 | 6000 |
| TP-ML0.5-24 | 24 | 500 | 3800 × 2000 | 4000 × 2300 × 3100 | 8000 |
| TP-ML0.5-26 | 26 | 500 | 4120 × 2000 | 4300 × 2300 × 3100 | 10000 |
1000 kg models
| Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
Machine weight (kg) |
|---|---|---|---|---|---|
| TP-ML1.0-6 | 6 | 1000 | 2100 × 1200 | 2280 × 1350 × 1240 | 1100 |
| TP-ML1.0-8 | 8 | 1000 | 2100 × 1200 | 2280 × 1350 × 1360 | 1400 |
| TP-ML1.0-10 | 10 | 1000 | 2100 × 1200 | 2280 × 1350 × 1480 | 1585 |
| TP-ML1.0-12 | 12 | 1000 | 2100 × 1200 | 2280 × 1350 × 1600 | 1650 |
| TP-ML1.0-14 | 14 | 1000 | 2550 × 1500 | 2750 × 1670 × 1800 | 2860 |
| TP-ML1.0-16 | 16 | 1000 | 2830 × 1500 | 3000 × 1750 × 1850 | 3100 |
| TP-ML1.0-18 | 18 | 1000 | 3150 × 1600 | 3400 × 1910 × 2350 | 4500 |
| TP-ML1.0-20 | 20 | 1000 | 3150 × 1600 | 3400 × 1910 × 2550 | 4800 |
2000 kg models
| Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
Machine weight (kg) |
|---|---|---|---|---|---|
| TP-ML2.0-8 | 8 | 2000 | 2150 × 1300 | 2350 × 1450 × 1530 | 1750 |
| TP-ML2.0-10 | 10 | 2000 | 2150 × 1300 | 2350 × 1450 × 1690 | 2050 |
| TP-ML2.0-12 | 12 | 2000 | 2150 × 1300 | 2350 × 1450 × 1850 | 2400 |
| TP-ML2.0-14 | 14 | 2000 | 2650 × 1600 | 2850 × 1730 × 2420 | 3200 |
| TP-ML2.0-16 | 16 | 2000 | 2900 × 1600 | 3100 × 1730 × 2420 | 5400 |
| TP-ML2.0-18 | 18 | 2000 | 3200 × 1800 | 3400 × 2200 × 3100 | 5800 |
3000 kg models
| Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
Machine weight (kg) |
|---|---|---|---|---|---|
| TP-ML3.0-14 | 14 | 3000 | 2900 × 1800 | 3100 × 2200 × 3000 | 6000 |
| TP-ML3.0-12 | 12 | 3000 | 2400 × 1500 | 2500 × 1800 × 2400 | 4000 |
Working height is shown as supplied and is not platform height. Dimensions are L × W × H. Confirm final transport dimensions and weight for the chosen configuration. TP-ML0.5-11 is listed at 300 kg; its model name is retained from the source sheet.
CONFIGURATION CHOICES
Match the power and equipment to your site.
The following are available options. Confirm the selected package and compatibility in your quotation.
Choose the operating package
- DC lifting with battery and charger
- AC/DC dual-power operation
- Assisted travel, including AC/DC combinations
- Diesel lifting or diesel/AC operation
- Gasoline generator set
- Trailer configuration
Specify the details
- 800 mm extending platform or enlarged platform
- Solid tires and hydraulic outriggers
- Remote control and warning lights
- Explosion-protected motor and electrical equipment
- Custom colors
Options can change capacity, dimensions and machine weight. For explosion-protected equipment, specify the required classification and documentation before ordering.

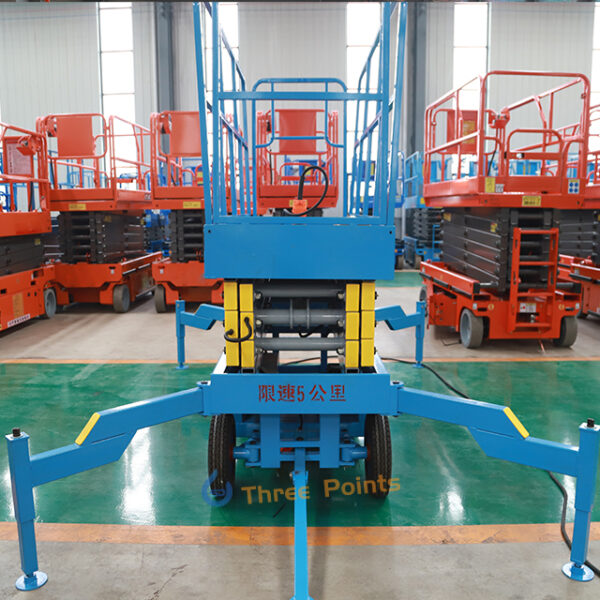

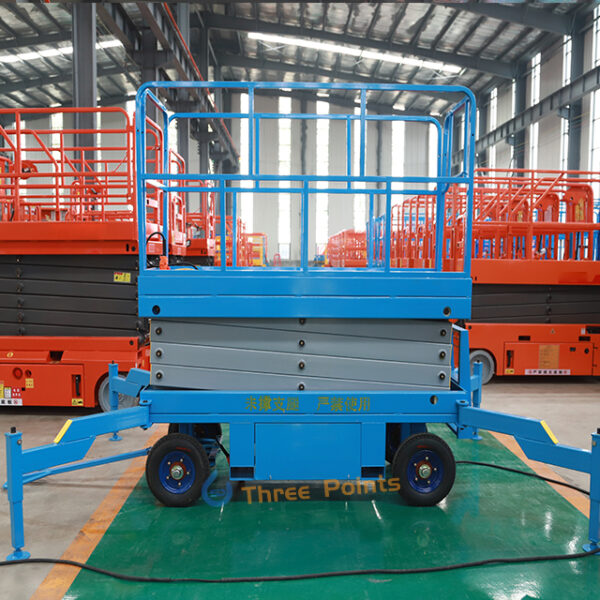

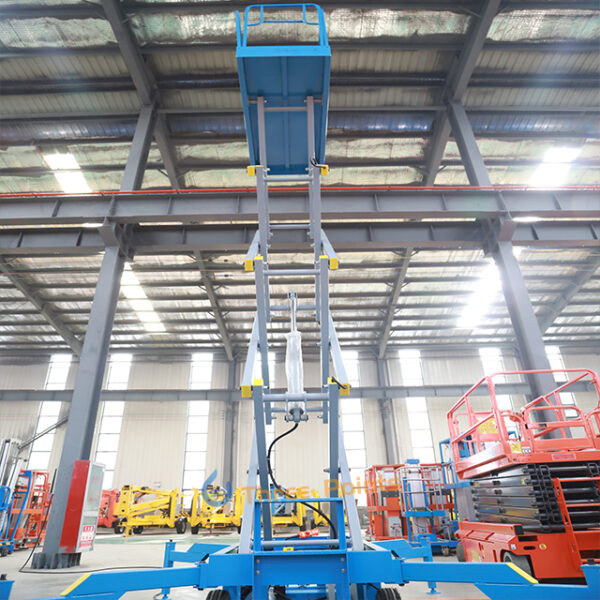

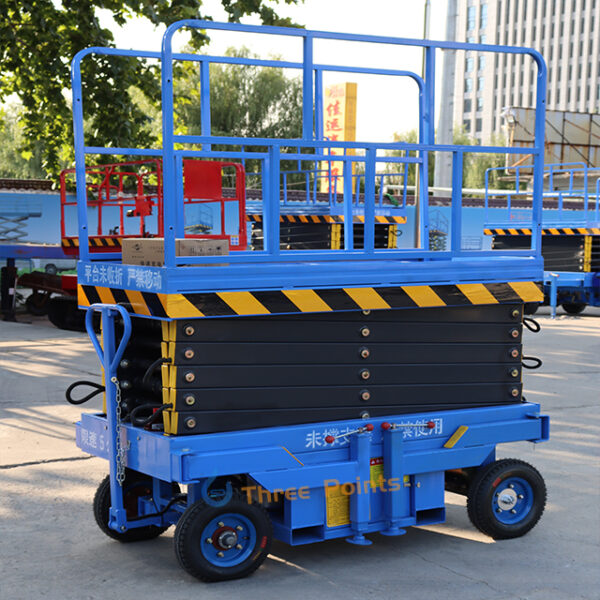

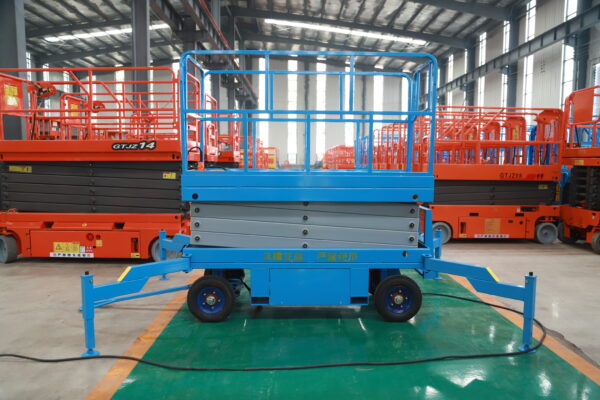

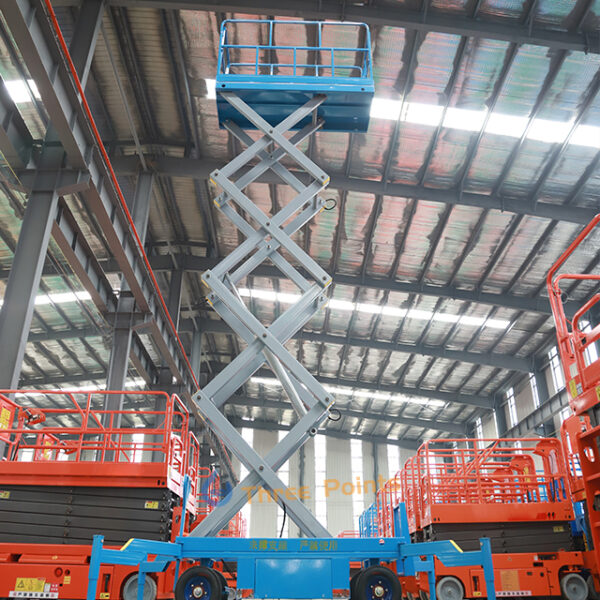

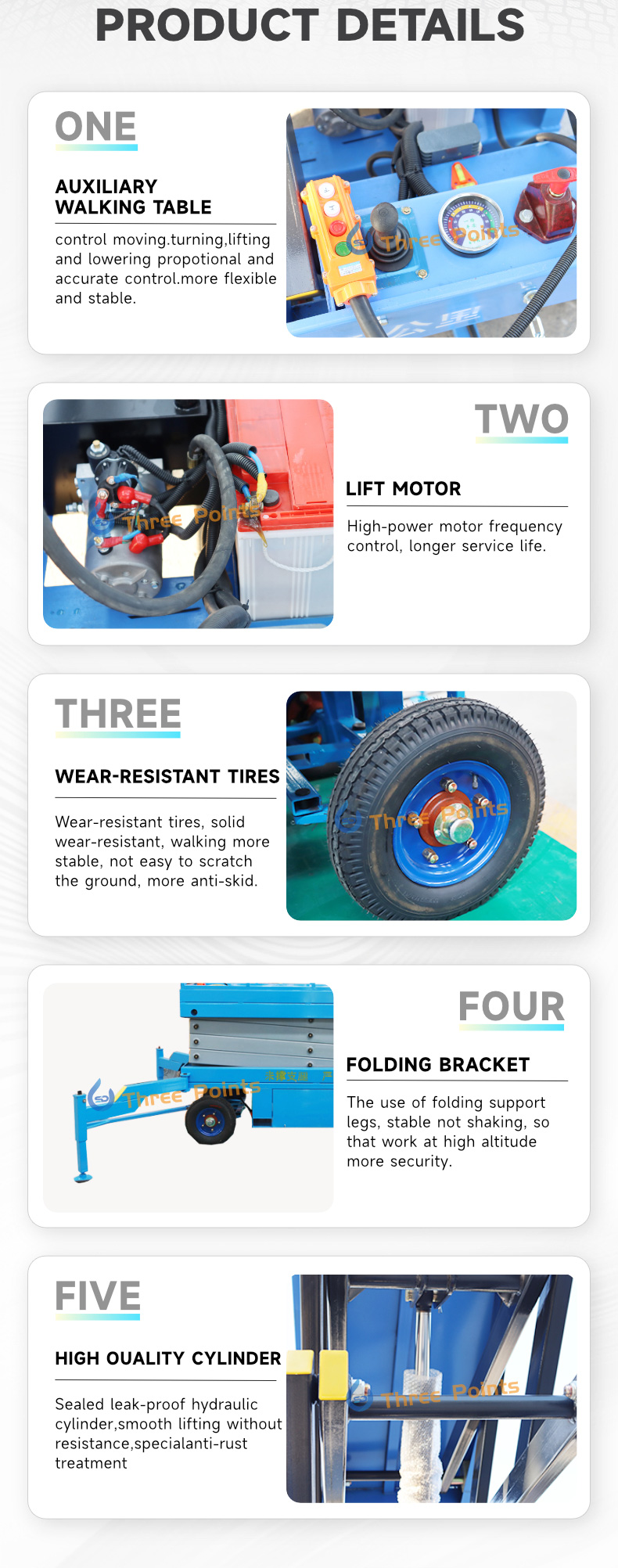

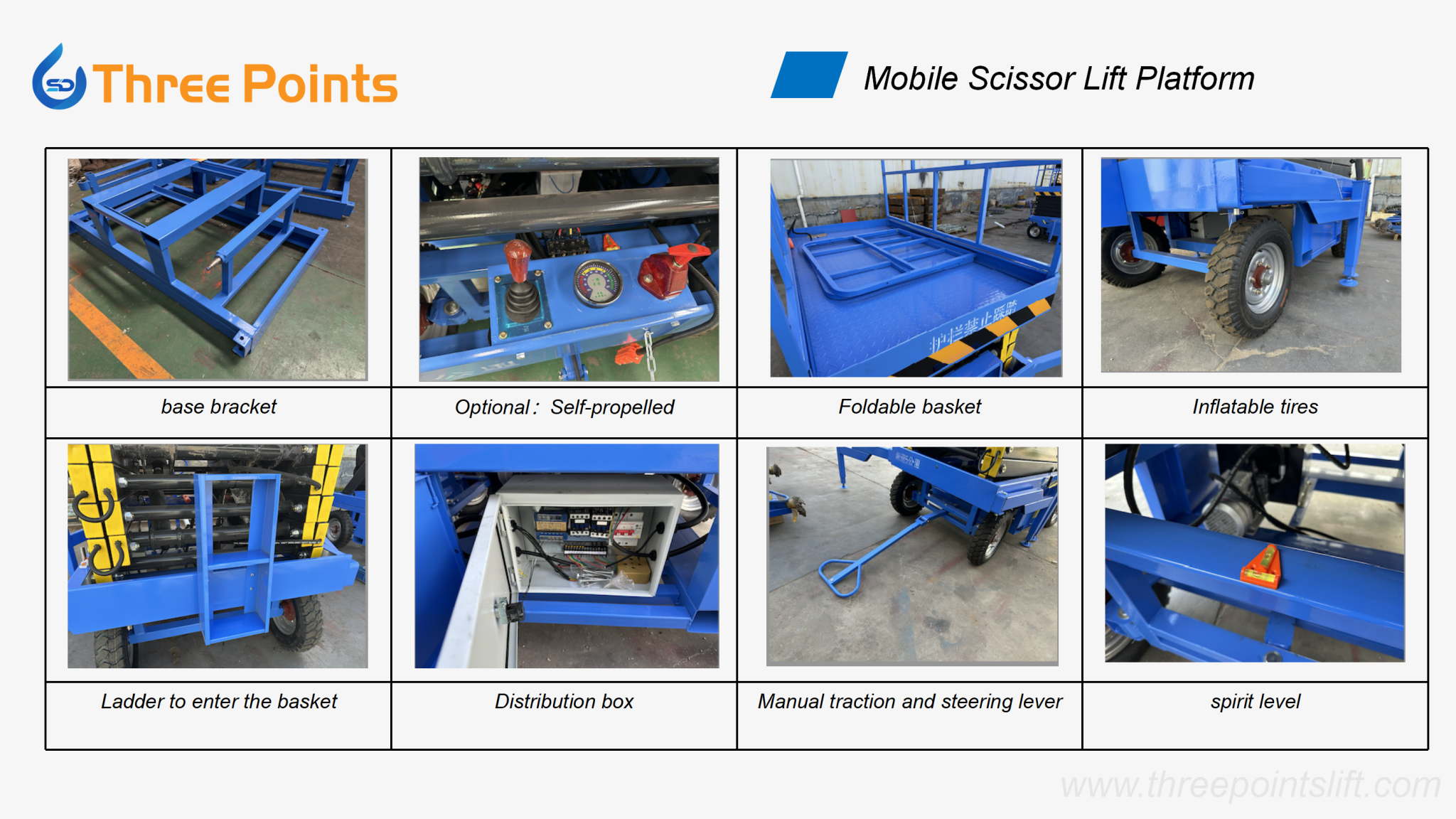

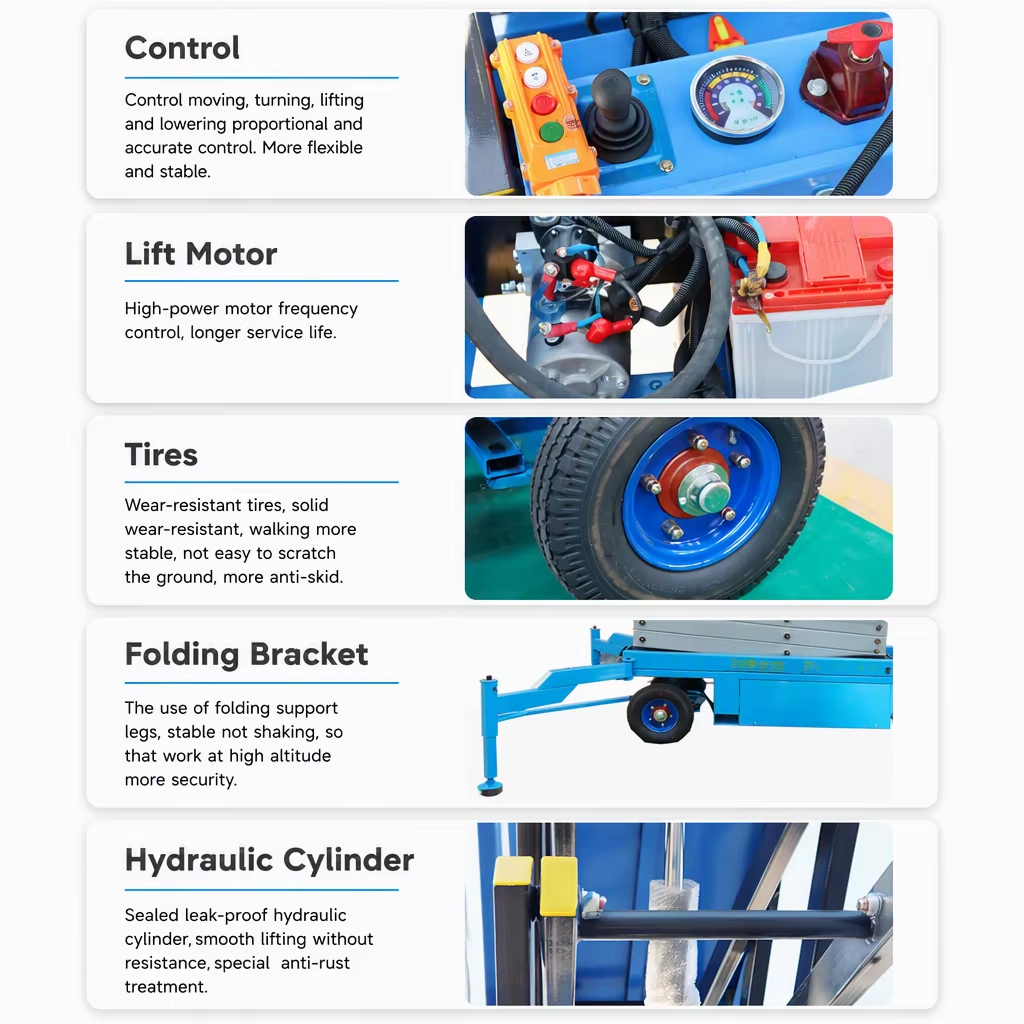

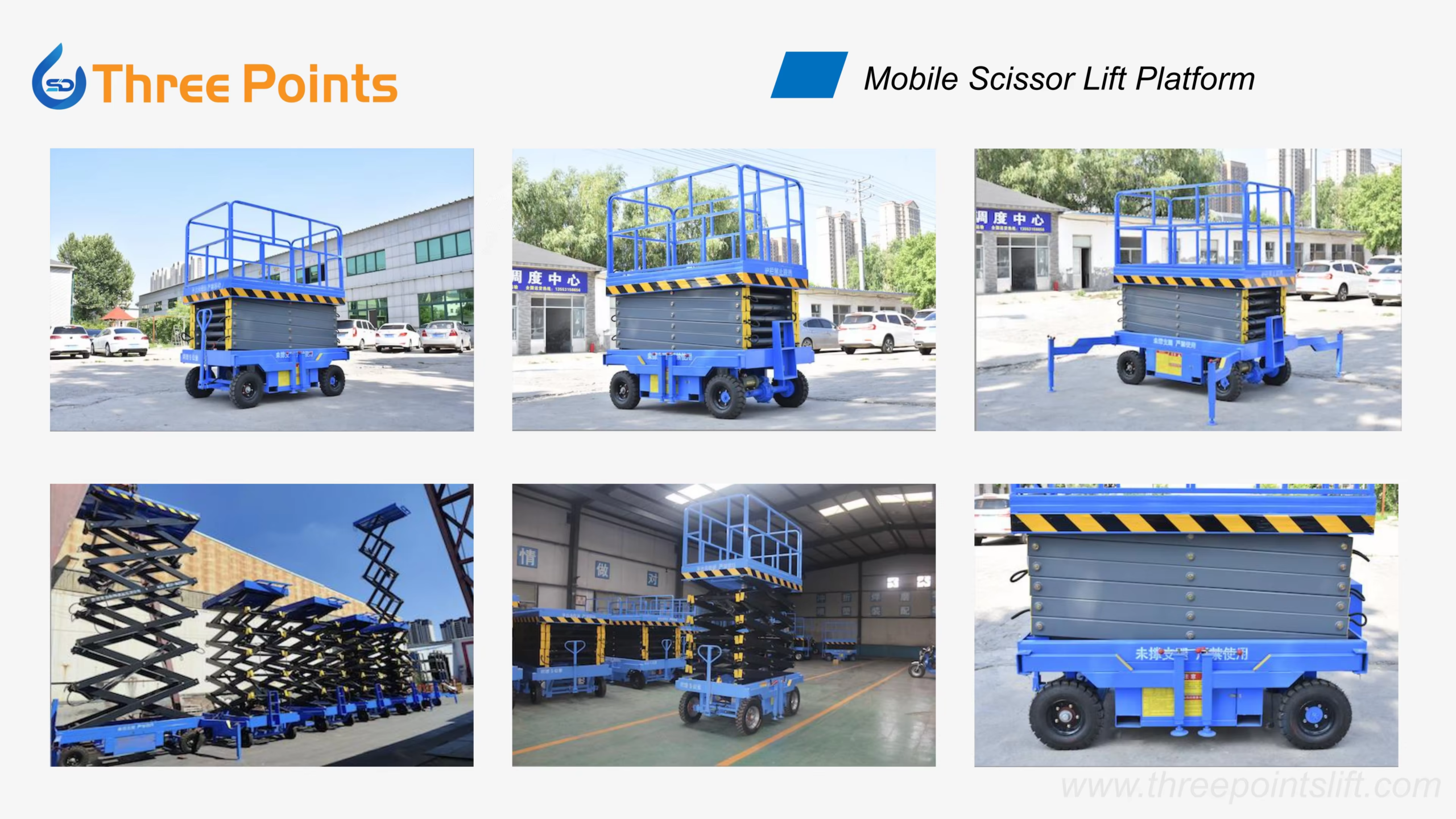

PRODUCT DETAILS
A closer look at the equipment.
EVERYDAY APPLICATIONS
Access for maintenance and installation.
Buildings & facilities
Reach lighting and overhead services with a model selected for your required height and load.
Workshops & factories
Support installation and maintenance tasks with a suitable platform and power configuration.
Site maintenance
Choose the movement and outrigger setup for access between work positions.
Use on suitable ground within the operating limits of the selected model. Confirm ground bearing capacity, leveling requirements and indoor/outdoor conditions before use.
PRODUCT QUESTIONS
Choose with confidence.
Six essential answers about selection, movement, power and ordering.
SELECTION · CONFIGURATION · SUPPORT
Is this a self-propelled scissor lift?
This page covers the mobile / towable scissor lift range. Assisted travel is an optional configuration and should be specified separately. Confirm the movement method and towing requirements for your selected model; do not assume it has platform-controlled travel or road-towing approval.
Which model and load capacity should I choose?
Match working height, platform size and the total load to your task. The table includes 300, 500, 1000, 2000 and 3000 kg models. Check the rated-load column for each model: TP-ML0.5-11 is listed at 300 kg in the specification sheet.
Are working height and platform height the same?
No. The table uses the working heights supplied in the specification sheet. Platform height is the height of the platform floor. Ask us to confirm the required platform height before ordering.
What power and travel options are available?
Options include DC battery lifting, AC/DC operation, assisted travel, diesel lifting and diesel/AC operation. Tell us your local voltage and site power availability so we can confirm a compatible package and charger.
Can the platform, tires and outriggers be customized?
Listed options include an 800 mm extending platform, a larger platform, solid tires, hydraulic outriggers, remote control, warning lights and custom colors. Availability and the resulting load, dimensions and weight must be confirmed for your selected model.
What do you need for a quotation and shipping?
Send the model or required working height, total load, power supply, desired options, quantity and destination. We will confirm equipment, transport dimensions, packing, lead time, shipping terms and written warranty and support details in the quotation.
FACTORY DIRECT ENQUIRY
Let’s specify your mobile scissor lift.
Send your working height, total load, power supply, preferred options, quantity and destination for a model recommendation and quotation.

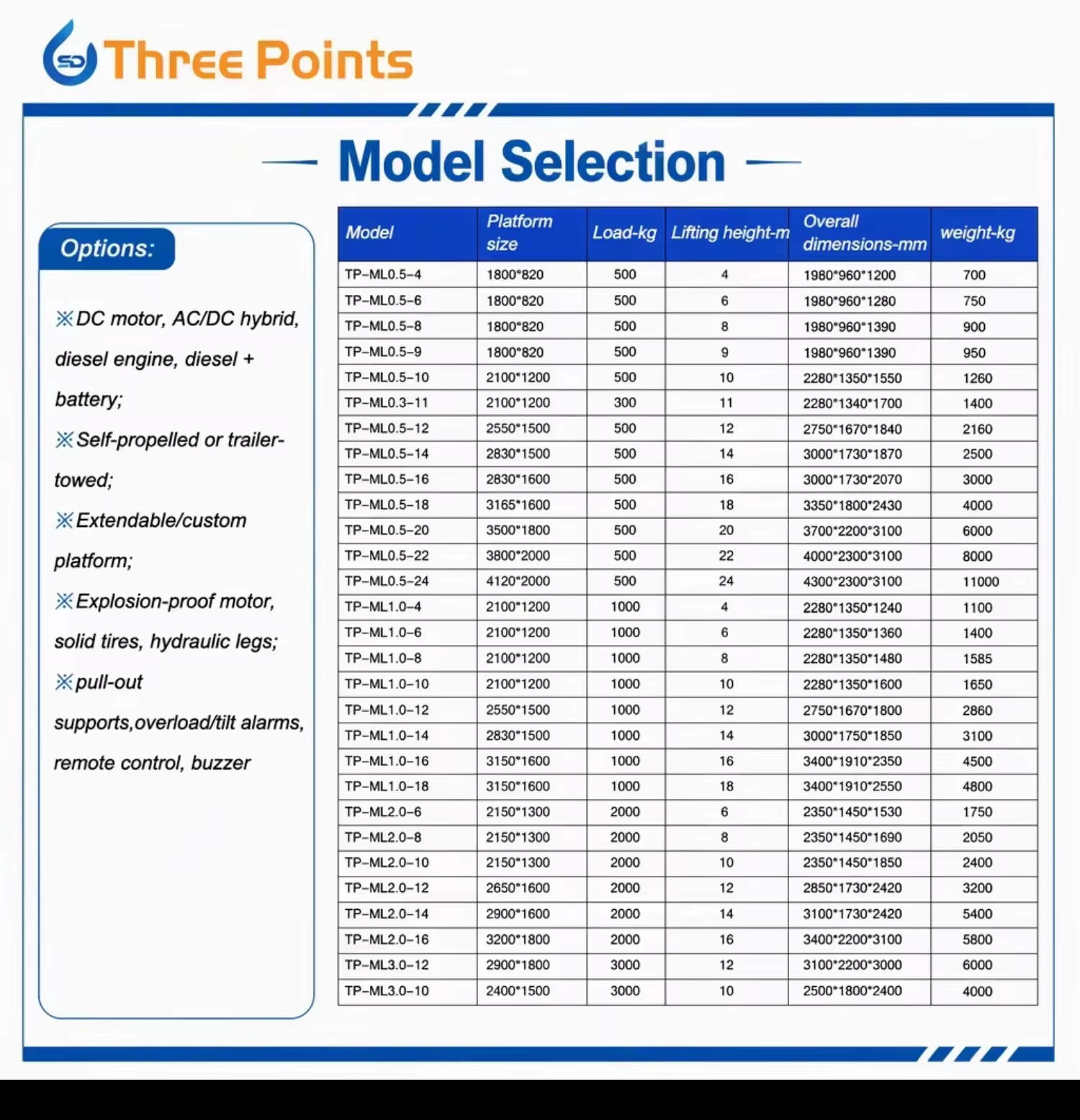

Product Specifications
| Model | Platform size -mm | Load-kg | Working height-m | Overall dimensions-mm | weight-kg |
| TP-ML0.5-6 | 1800*820 | 500 | 6 | 1980*960*1200 | 700 |
| TP-ML0.5-8 | 1800*820 | 500 | 8 | 1980*960*1280 | 750 |
| TP-ML0.5-10 | 1800*820 | 500 | 10 | 1980*960*1400 | 900 |
| TP-ML0.5-11 | 1800*820 | 300 | 11 | 1980*960*1400 | 950 |
| TP-ML0.5-12 | 2100*1200 | 500 | 12 | 2280*1350*1550 | 1260 |
| TP-ML0.3-13 | 2100*1200 | 300 | 13 | 2280*1340*1700 | 1400 |
| TP-ML0.5-14 | 2550*1500 | 500 | 14 | 2750*1670*1840 | 2160 |
| TP-ML0.5-16 | 2830*1500 | 500 | 16 | 3000*1730*1870 | 2500 |
| TP-ML0.5-18 | 2830*1500 | 500 | 18 | 3000*1730*2070 | 3000 |
| TP-ML0.5-20 | 3165*1600 | 500 | 20 | 3350*1800*2430 | 4000 |
| TP-ML0.5-22 | 3500*1800 | 500 | 22 | 3700*2200*3100 | 6000 |
| TP-ML0.5-24 | 3800*2000 | 500 | 24 | 4000*2300*3100 | 8000 |
| TP-ML0.5-26 | 4120*2000 | 500 | 26 | 4300*2300*3100 | 10000 |
| TP-ML1.0-6 | 2100*1200 | 1000 | 6 | 2280*1350*1240 | 1100 |
| TP-ML1.0-8 | 2100*1200 | 1000 | 8 | 2280*1350*1360 | 1400 |
| TP-ML1.0-10 | 2100*1200 | 1000 | 10 | 2280*1350*1480 | 1585 |
| TP-ML1.0-12 | 2100*1200 | 1000 | 12 | 2280*1350*1600 | 1650 |
| TP-ML1.0-14 | 2550*1500 | 1000 | 14 | 2750*1670*1800 | 2860 |
| TP-ML1.0-16 | 2830*1500 | 1000 | 16 | 3000*1750*1850 | 3100 |
| TP-ML1.0-18 | 3150*1600 | 1000 | 18 | 3400*1910*2350 | 4500 |
| TP-ML1.0-20 | 3150*1600 | 1000 | 20 | 3400*1910*2550 | 4800 |
| TP-ML2.0-8 | 2150*1300 | 2000 | 8 | 2350*1450*1530 | 1750 |
| TP-ML2.0-10 | 2150*1300 | 2000 | 10 | 2350*1450*1690 | 2050 |
| TP-ML2.0-12 | 2150*1300 | 2000 | 12 | 2350*1450*1850 | 2400 |
| TP-ML2.0-14 | 2650*1600 | 2000 | 14 | 2850*1730*2420 | 3200 |
| TP-ML2.0-16 | 2900*1600 | 2000 | 16 | 3100*1730*2420 | 5400 |
| TP-ML2.0-18 | 3200*1800 | 2000 | 18 | 3400*2200*3100 | 5800 |
| TP-ML3.0-14 | 2900*1800 | 3000 | 14 | 3100*2200*3000 | 6000 |
| TP-ML3.0-12 | 2400*1500 | 3000 | 12 | 2500*1800*2400 | 4000 |
