Towable Boom Lift


The Towable Articulating Boom Lift is a trailer-mounted aerial work platform for elevated tasks requiring horizontal reach. Compare seven standard models and compatible equipment options for maintenance, installation and facility work.

Product Details

Towable Articulating Boom Lift

TOWABLE BOOM LIFT / MOBILE ACCESS

A trailer-mounted aerial work platform with an articulated boom for elevated tasks requiring horizontal reach. Compare seven standard models, including a telescopic TPTB-14 version, and choose available options for your operation.

7 modelsAvailable range
12–22 mWorking height
TrailerMounted mobility
TOWABLE ARTICULATING BOOM LIFT

Flexible reach for elevated work.

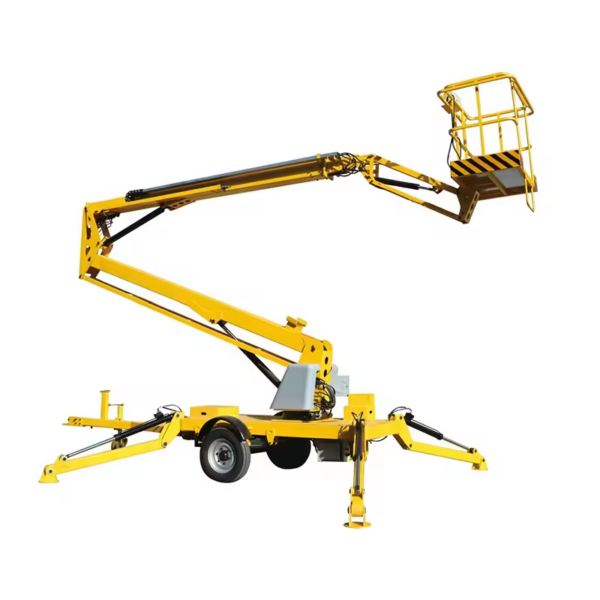

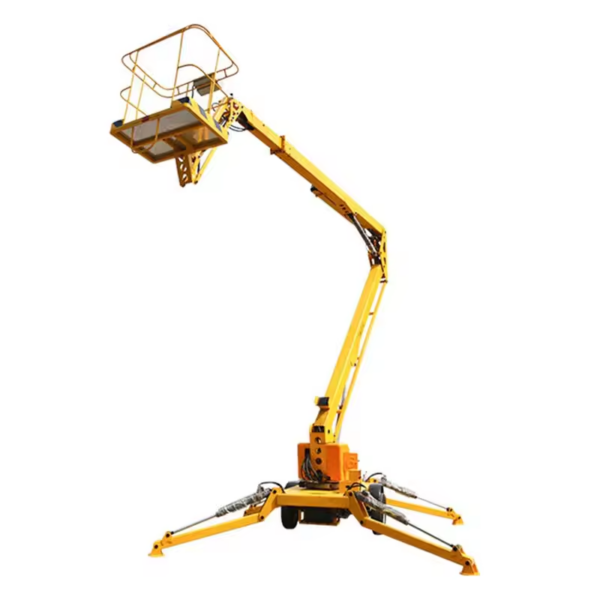

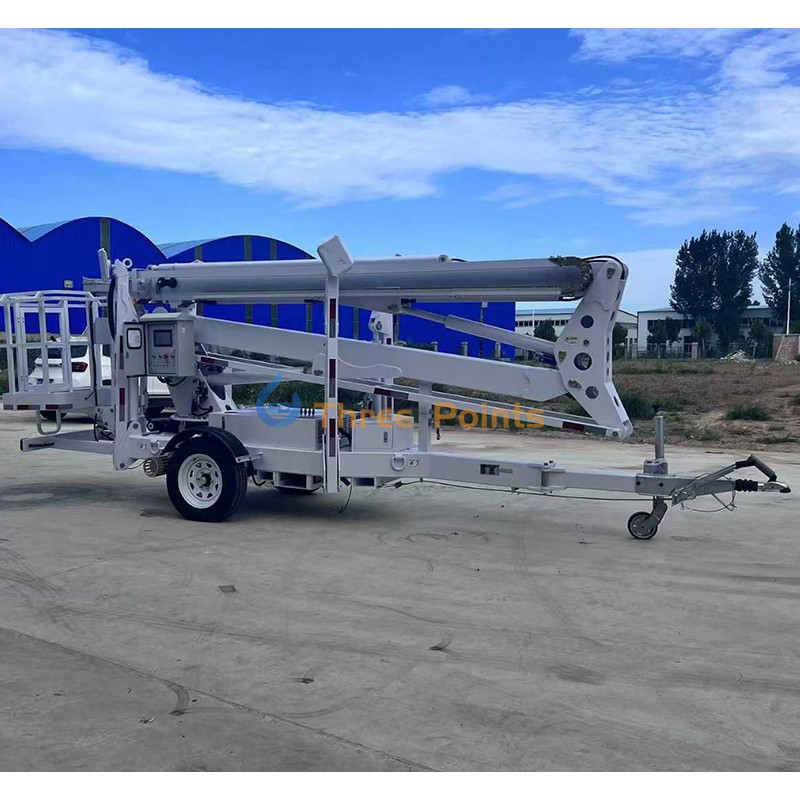

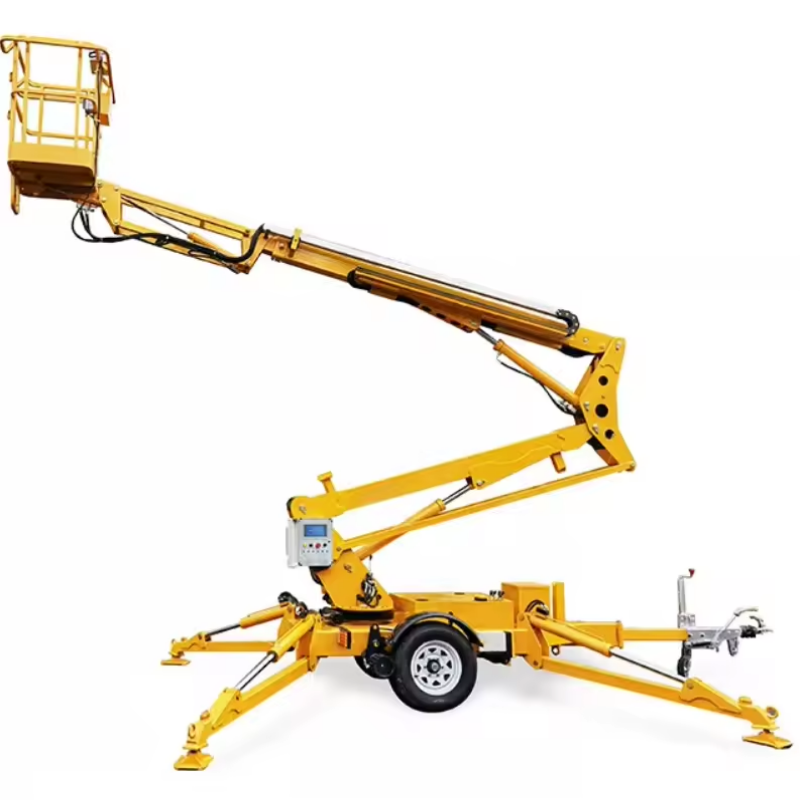

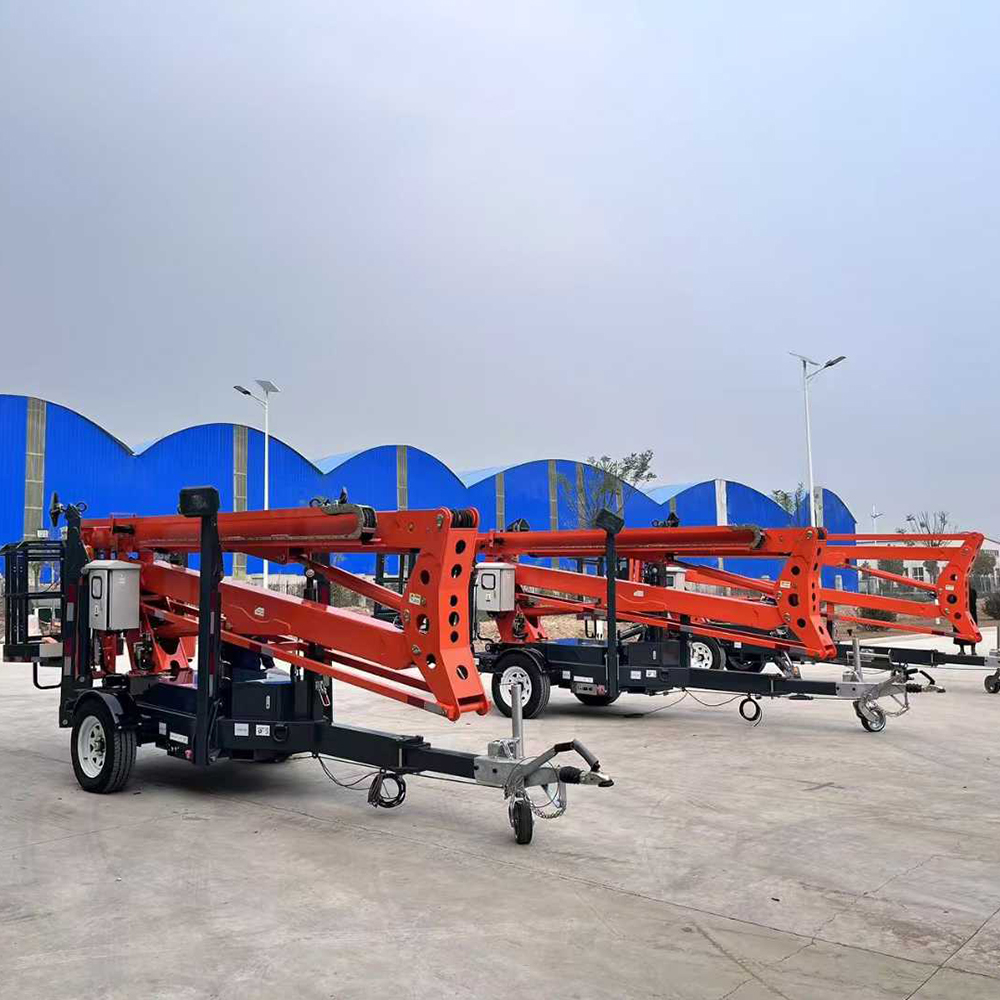

The towable articulating boom lift combines a trailer-mounted chassis with a hydraulic articulated boom. It positions the work basket at elevated locations where horizontal access is needed, such as building maintenance, installation and tree-care tasks.

Articulated boom access

The jointed boom arrangement provides access to work positions away from the base. Compare the machine’s working envelope with obstacles and the task location.

Trailer-mounted mobility

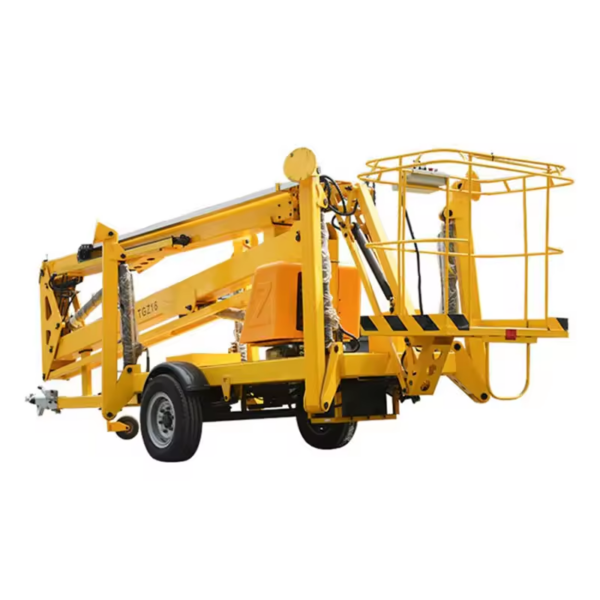

Move the equipment between locations using suitable towing and transport arrangements. Stowed dimensions help plan access routes and shipment.

Standard model selection

Choose from the listed models and compatible options. Model dimensions, working radius and supplied equipment are confirmed in the order specification.

TOWABLE ARTICULATING BOOM LIFT

Watch the towable boom lift demonstration.

TOWABLE ARTICULATING BOOM LIFT

Compare seven standard models.

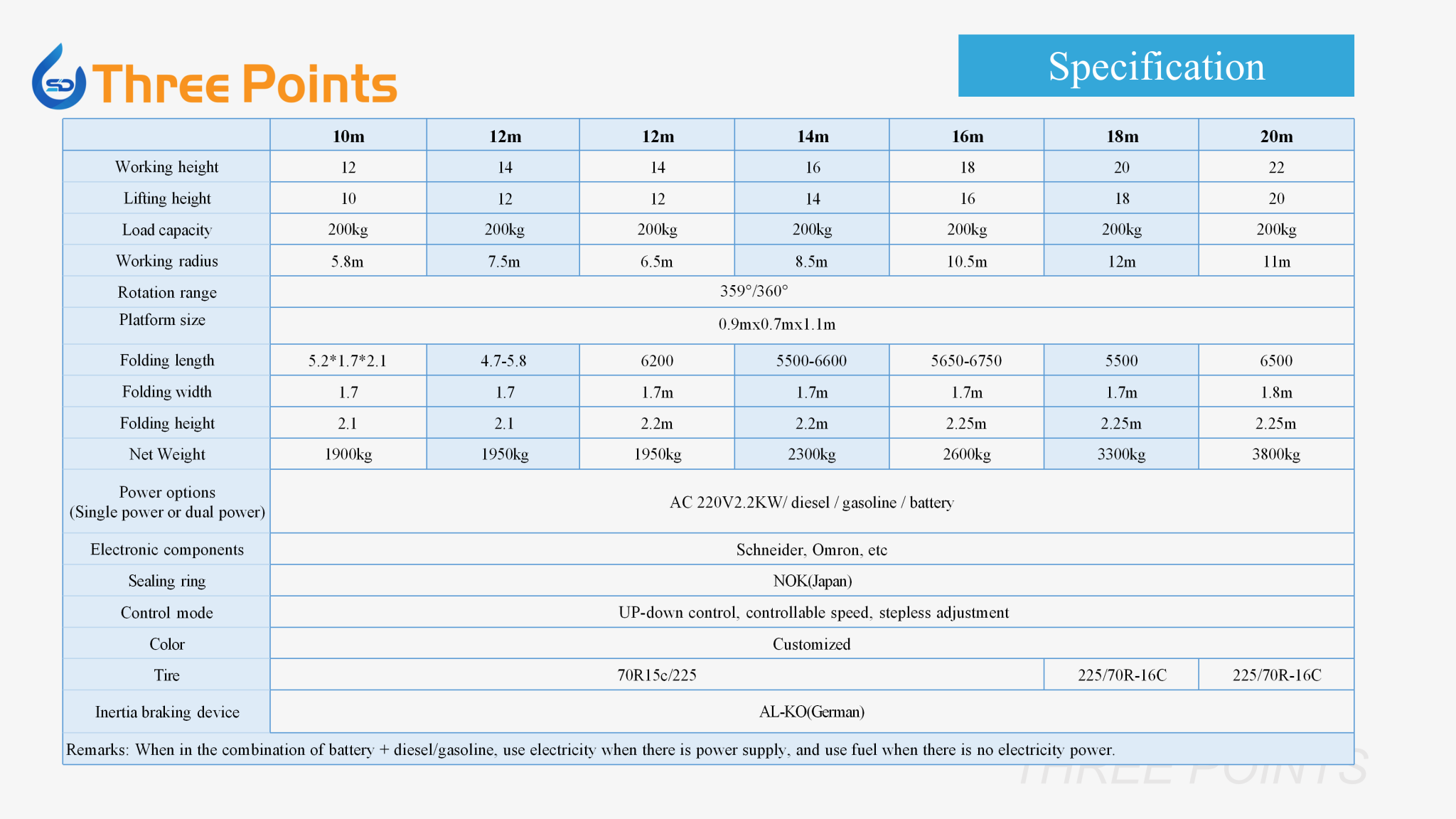

Model Overall width (mm) Stowed height (mm) Basket dimensions (mm) Overall length (mm) Folded towing length (mm) Working radius (mm)
TPTB-12 1700 2100 900 × 700 6300 5200 (small container) 5800

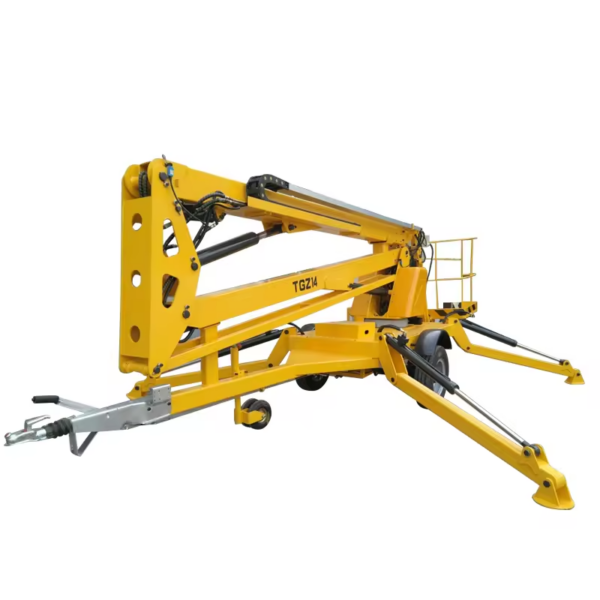

TPTB-14 1700 2200 900 × 700 7300 6200 (remove basket for small-container loading) 6500
TPTB-14 (telescopic) 1700 2200 900 × 700 5800 4700 (small container) 7500

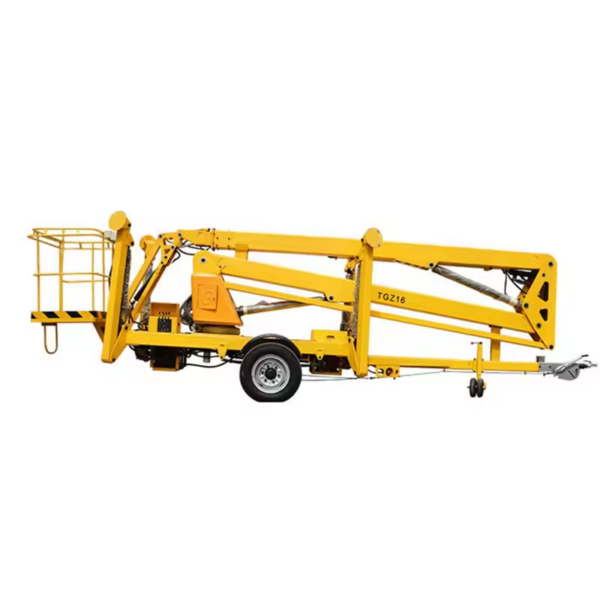

TPTB-16 1700 2200 900 × 700 6600 5700 (small container) 8500
TPTB-18 1700 2250 900 × 700 6750 5800 (small container) 10500
TPTB-20 1800 2250 900 × 700 6600 6100 (small container) 11500
TPTB-22 1800 2250 900 × 700 6900 6500 (small container) 12000

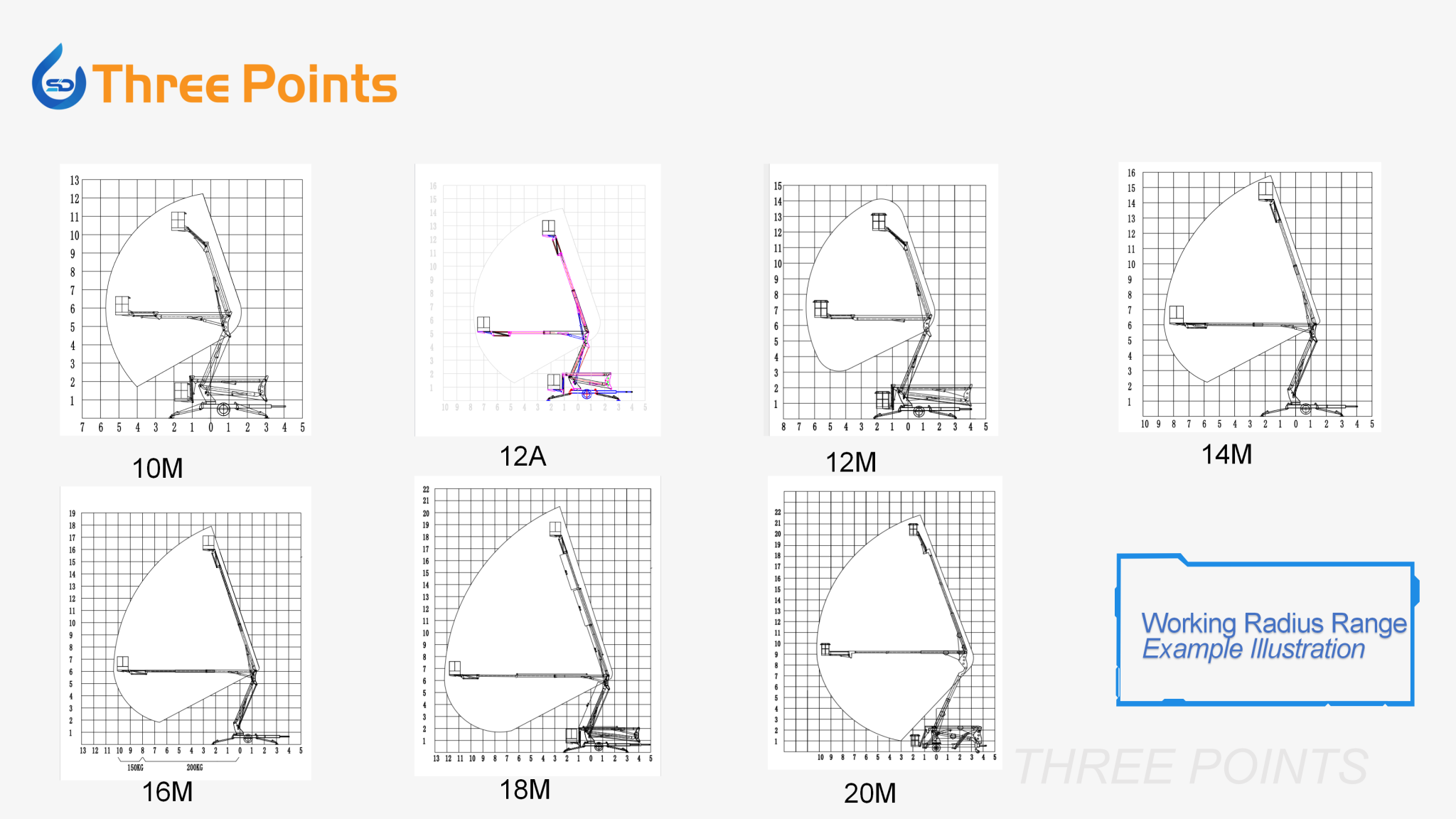

Dimensions and transport notes follow the supplied sheet. Working radius does not represent reach at every height; request the selected model’s working envelope.

TOWABLE ARTICULATING BOOM LIFT

Choose the available equipment options.

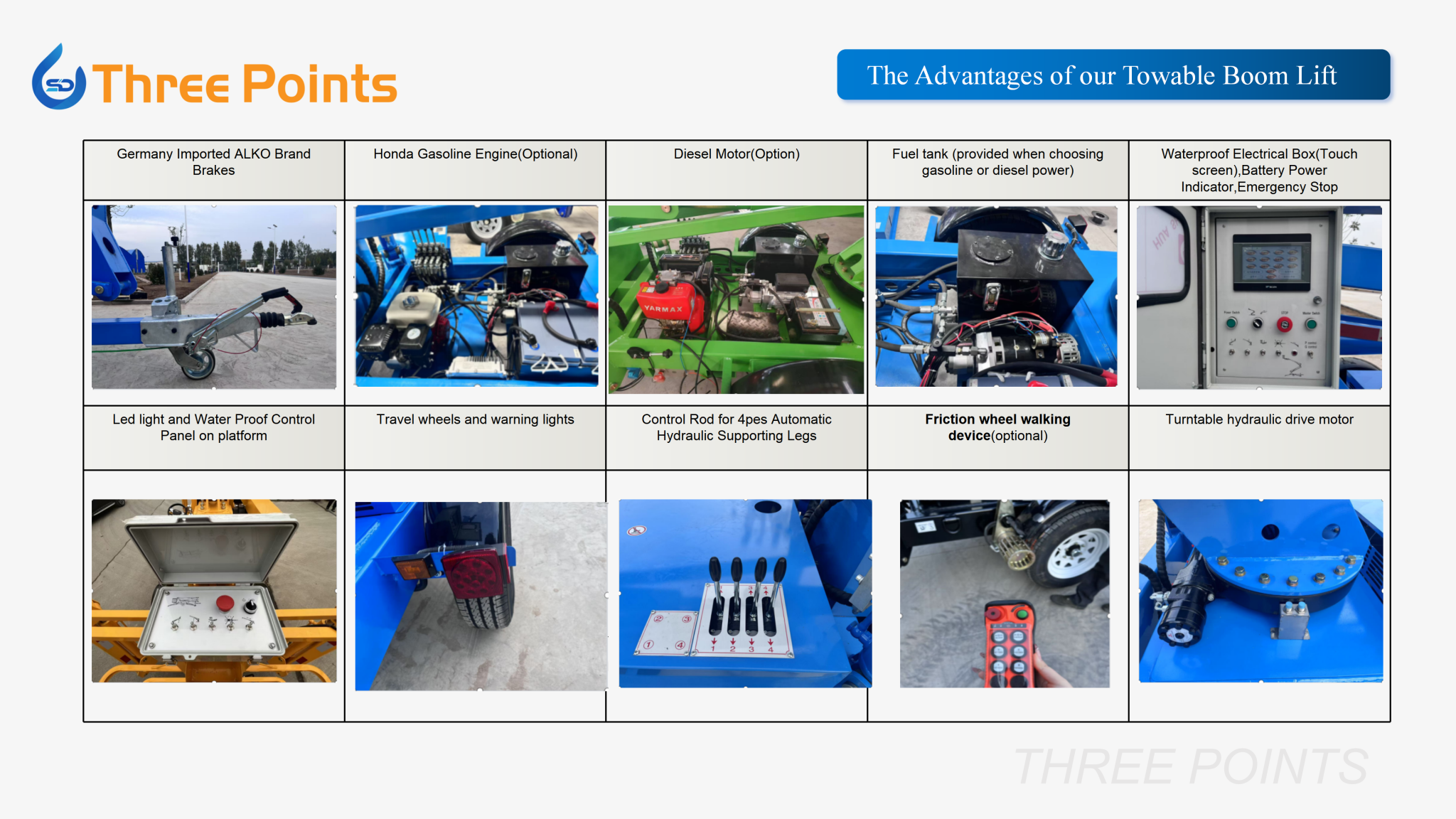

Controls and positioning

Available options include one-touch leveling, lift remote controls, wireless remote control and assisted travel. Confirm the controller and functions included with your selection.

Power arrangements

The options list includes DC batteries, lithium batteries, AC with diesel or gasoline power, and combinations with DC batteries. Ask for compatible power packages for your model.

Basket options

An aluminum alloy basket and basket rotation are listed as options. Confirm basket equipment, compatibility and the final rated platform load before ordering.

TOWABLE ARTICULATING BOOM LIFT

Access for maintenance and installation.

Building maintenance

Access elevated inspection, repair and cleaning positions around buildings.

Installation tasks

Position workers and tools for suitable electrical, lighting and equipment installation tasks.

Grounds and facilities

Discuss reach and setup requirements for tree care, grounds maintenance and facility work.

TOWABLE ARTICULATING BOOM LIFT

Choose with confidence.

How do I choose a standard model?

Compare the required horizontal reach, transport dimensions and operating space with the model table. Request the working envelope and rated platform capacity for the selected model before ordering.

What is different about the telescopic TPTB-14?

The supplied table lists a telescopic TPTB-14 with a working radius of 7500 mm, compared with 6500 mm for the other TPTB-14. Its overall and folded lengths are listed separately.

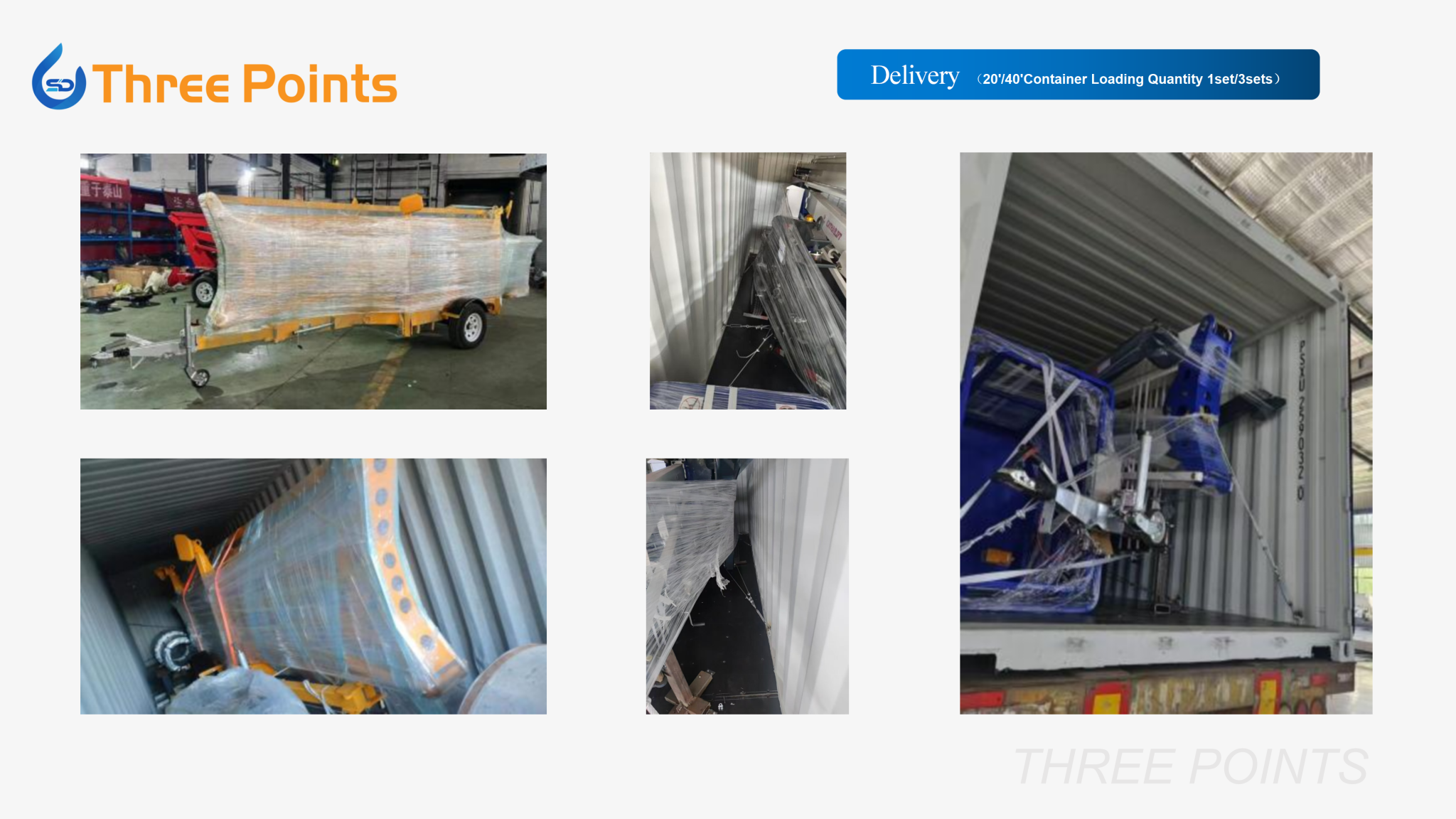

How is the lift transported?

The platform is mounted on a towable trailer chassis. Review the selected model’s transport dimensions, towing requirements and loading arrangements before shipment or use.

Which features are optional?

The supplied options list includes leveling, remote controls, assisted travel, battery and engine power arrangements, an aluminum basket and basket rotation. Confirm compatibility and included options for the selected model.

What should I check before operation?

Review the operator manual, working envelope, platform capacity, ground conditions, setup area and stabilizer requirements for the selected machine.

How do I order?

Send the model, quantity, preferred available options and destination. The quotation will confirm the specification, included equipment, price, lead time, freight and support terms.

TOWABLE ARTICULATING BOOM LIFT

Request your towable boom lift quotation.

Send your selected model, quantity, preferred available options and destination.
