Six capacity choices
Compare 6, 8, 10, 12, 15 and 20 t specifications against the total operating load and forklift requirements.

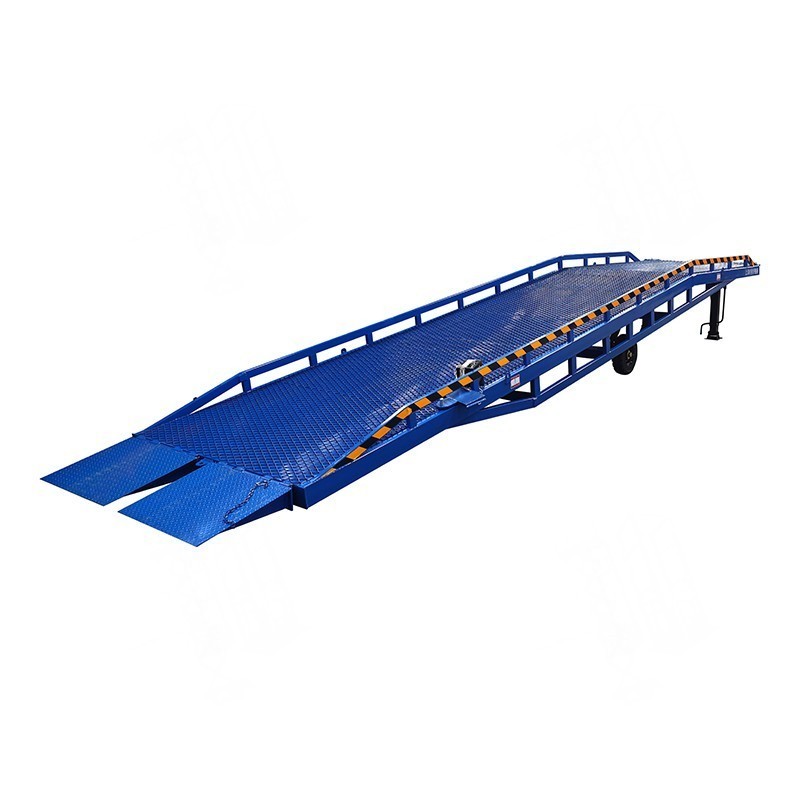

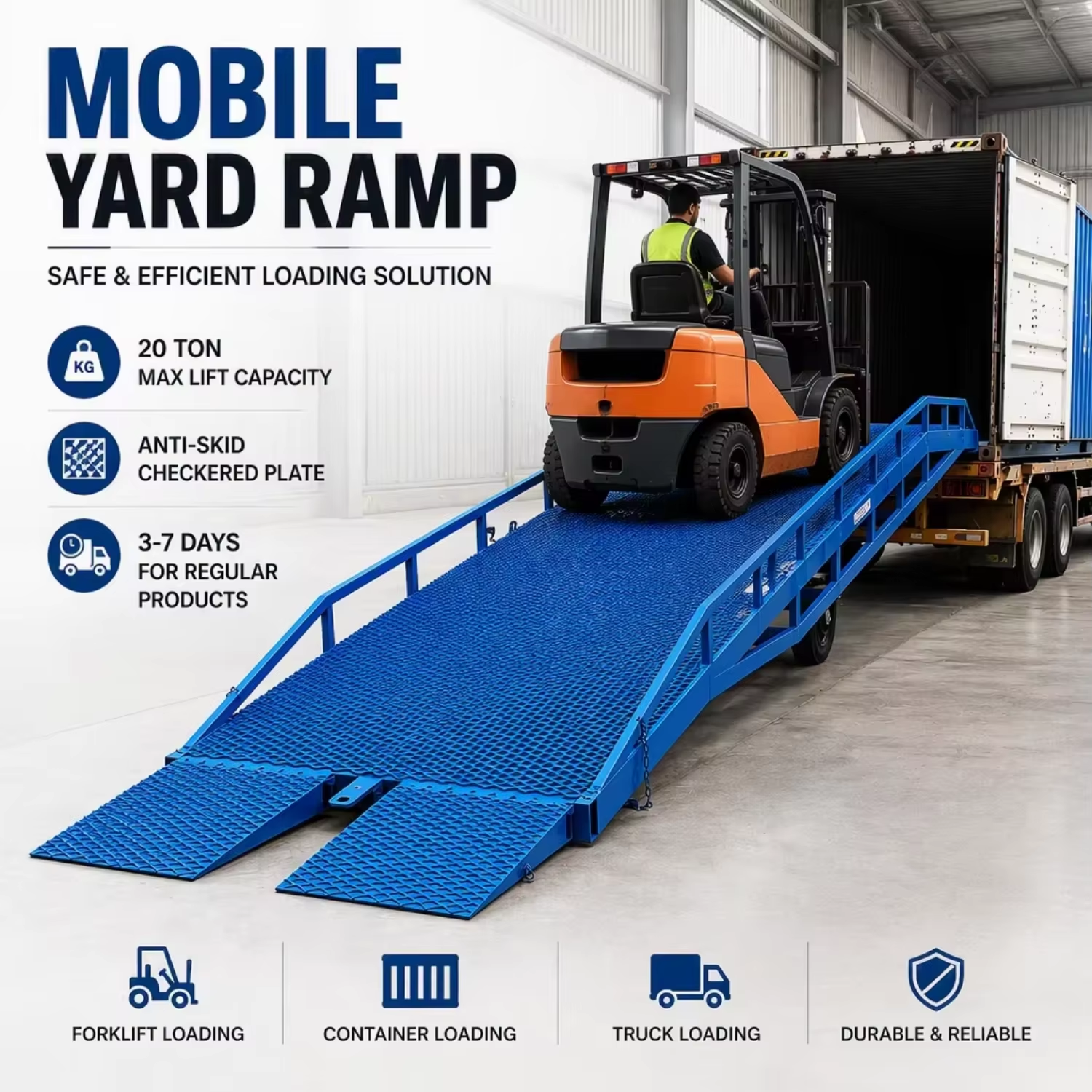

Mobile Yard Ramp
MOBILE YARD RAMP / LOADING ACCESS
Connect ground level to trucks and containers. Compare six capacity specifications and match the ramp to your forklift, vehicle and loading space.
6–20 tCapacity range
1100–1800 mmAdjustment range
6 choicesCapacity specifications
- 11300 mm overall length
- Solid tires and tow bar
- Wheel chocks and securing chains
Product Details
THREE POINTS / PRODUCT VIDEO
See the mobile yard ramp in action.
A closer look at the ramp and its loading application.
PRODUCT DEMONSTRATION · MOBILE YARD RAMP
GROUND TO VEHICLE ACCESS
Choose for your loading operation.
- Six capacity specifications from 6 to 20 t
- 1100–1800 mm equipment adjustment range
- Solid tires, tow bar and securing accessories
6–20 T CAPACITY RANGE1100–1800 MM ADJUSTMENTMOBILE LOADING ACCESS
BUILT FOR CARGO HANDLING

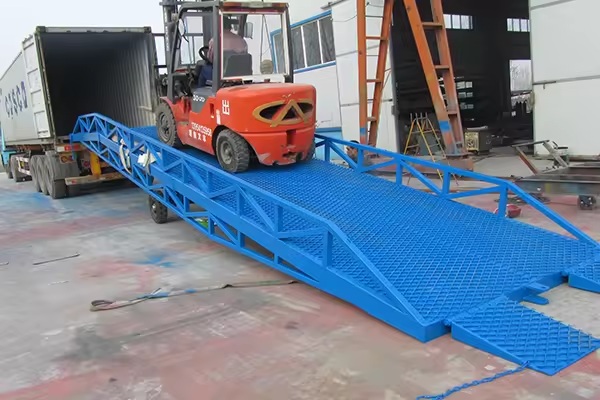

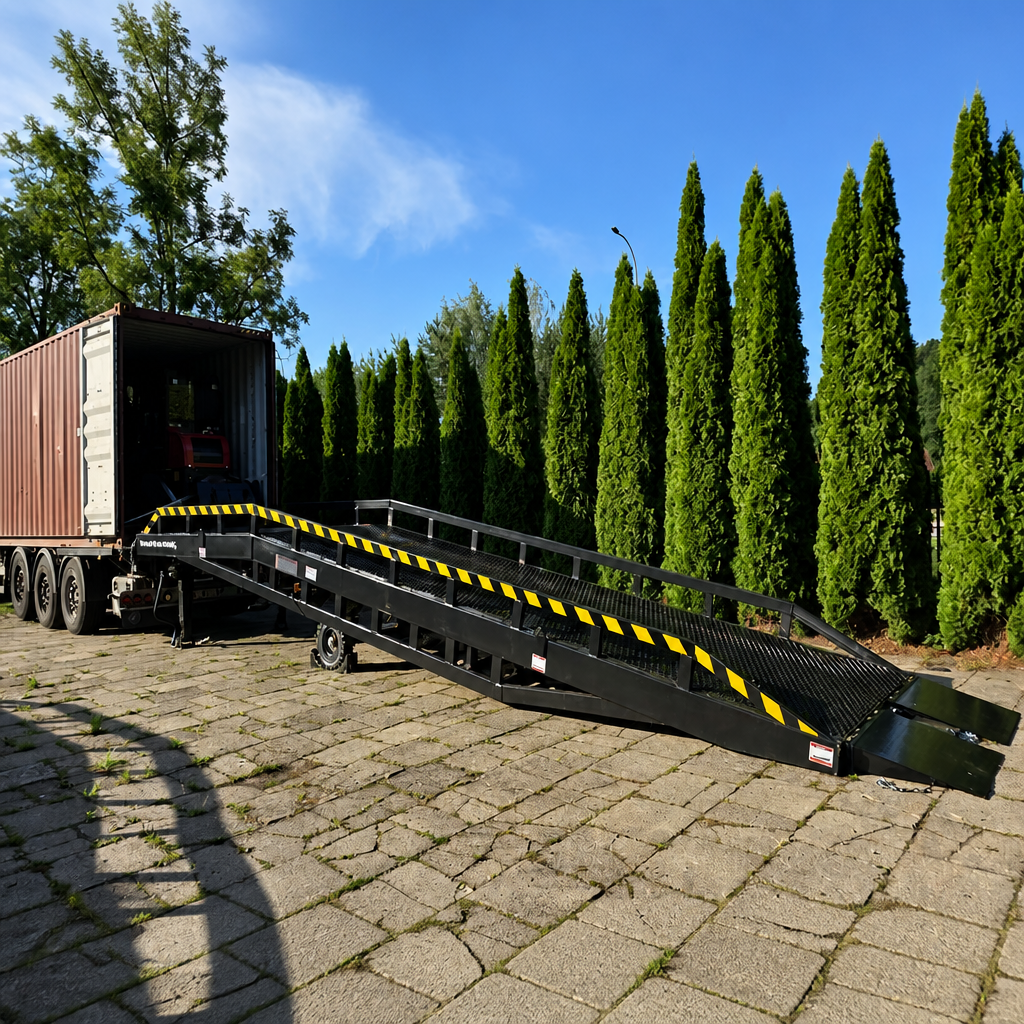

Connect the yard to the vehicle.
A mobile loading route for sites without a permanent dock. Select capacity, dimensions and vehicle compatibility around your operation.
Adjustable connection height
All six specifications share a 1100–1800 mm equipment adjustment range for matching the proposed loading position.
Position and secure

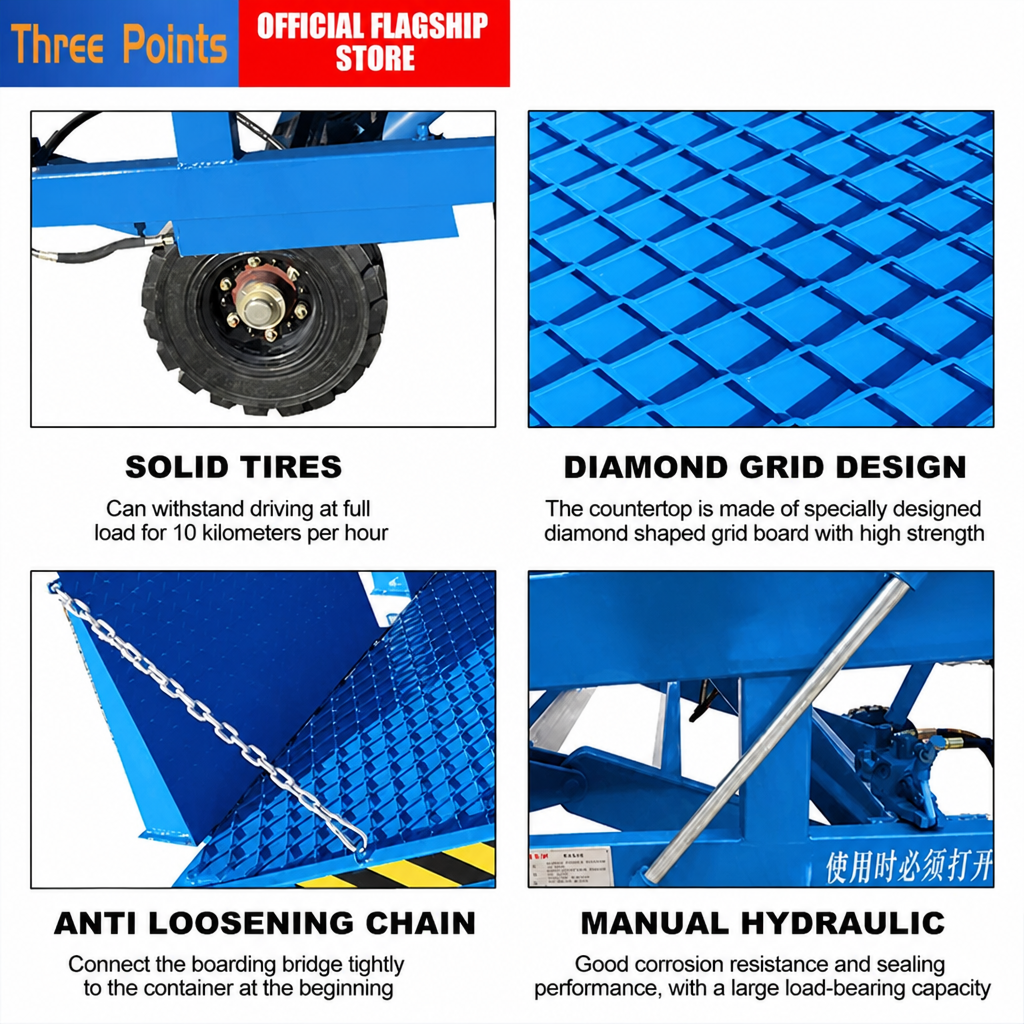

Solid tires and a tow bar support positioning. The listed supply includes wheel chocks, hooks and steel chains for the operating setup.

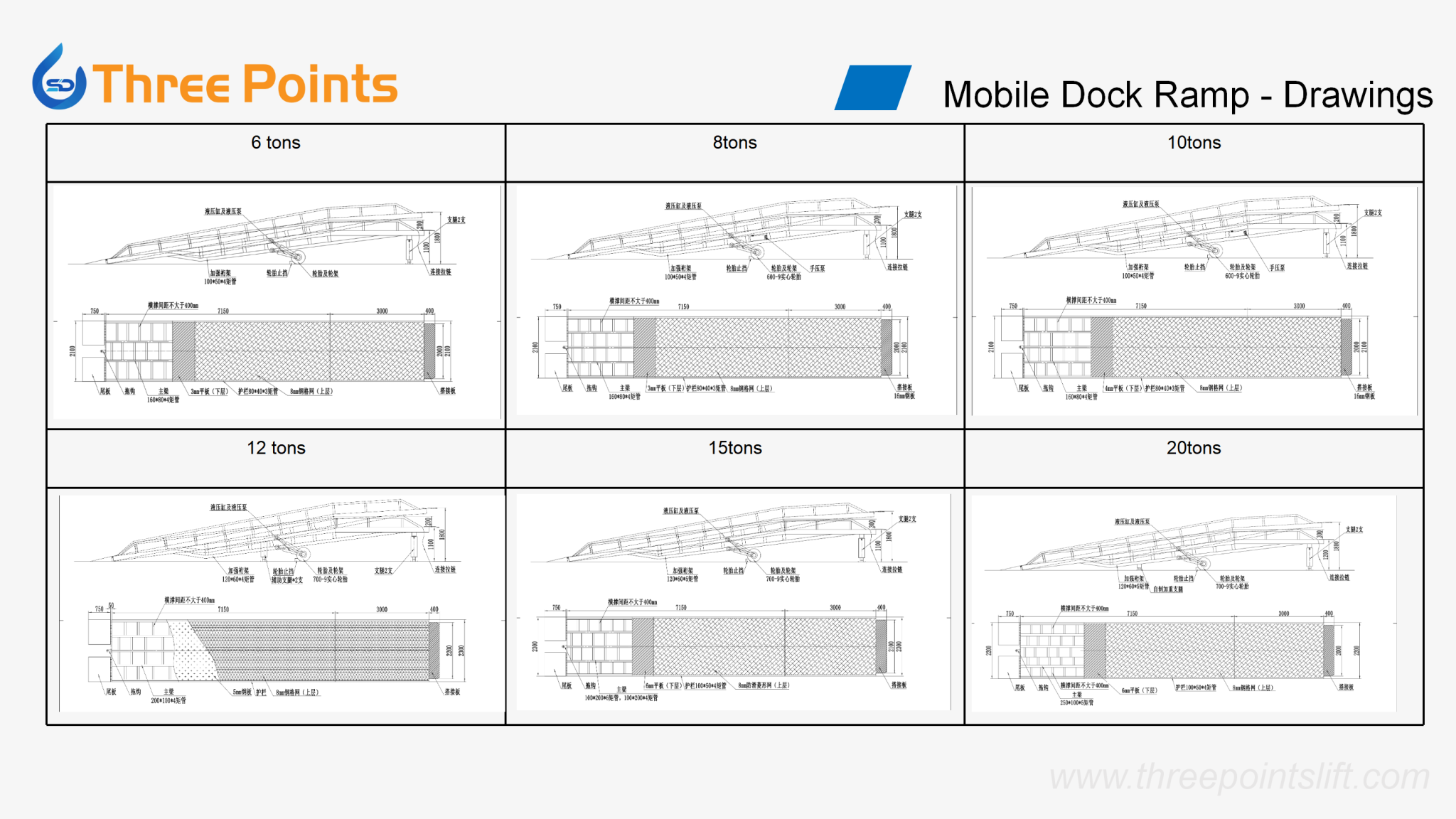

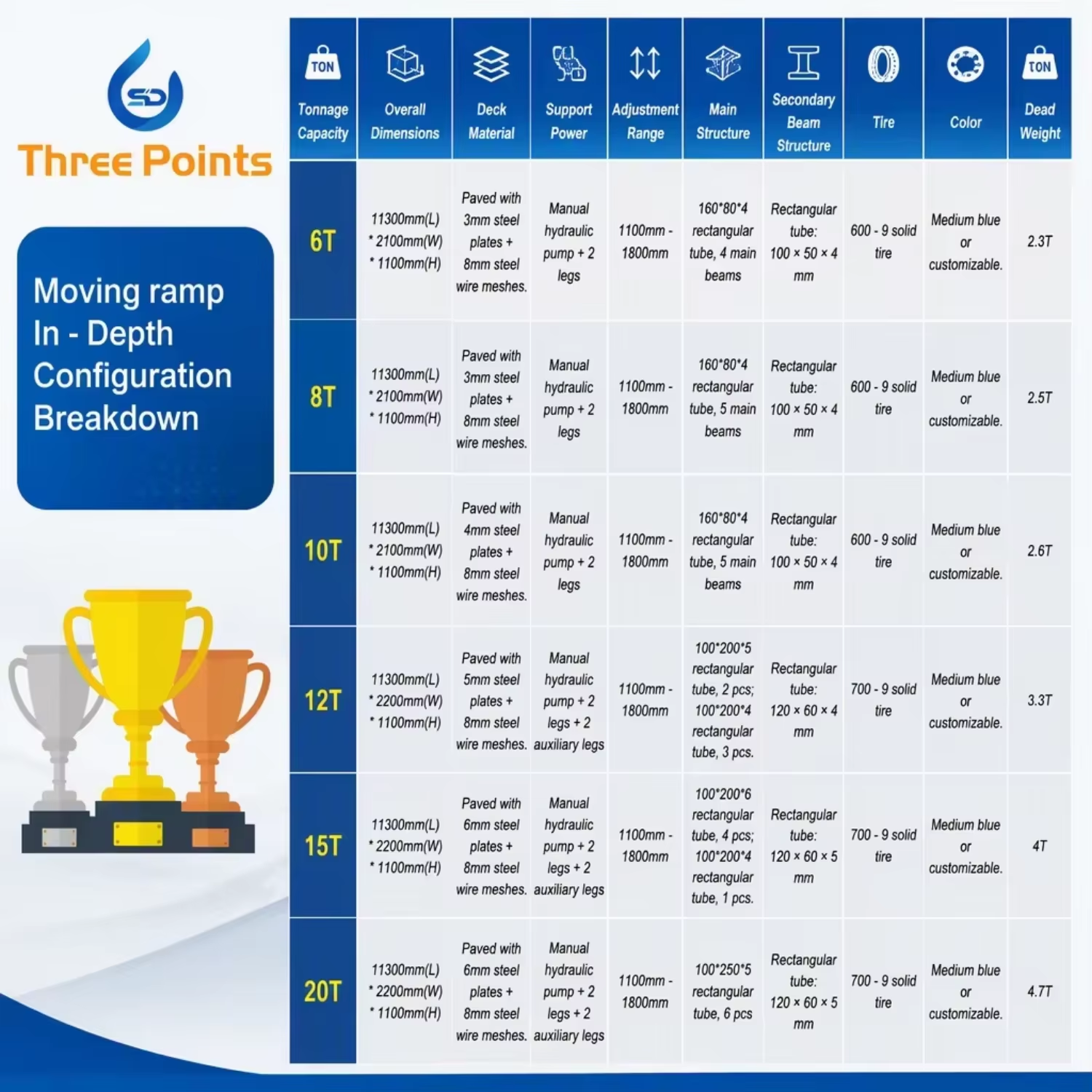

MODEL COMPARISON
Find the right ramp for your site.
Compare rated capacity, overall size, tires and approximate machine weight.
| Rated capacity | Adjustment range (mm) |
Overall dimensions L × W × H (mm) |
Tire specification | Machine weight (t) |
|---|---|---|---|---|
| 6 t | 1100–1800 | 11300 × 2100 × 1100 | 600-9 solid tires | Approx. 2.3 |
| 8 t | 1100–1800 | 11300 × 2100 × 1100 | 600-9 solid tires | Approx. 2.5 |
| 10 t | 1100–1800 | 11300 × 2100 × 1100 | 600-9 solid tires | Approx. 2.6 |
| 12 t | 1100–1800 | 11300 × 2200 × 1100 | 700-9 solid tires | Approx. 3.3 |
| 15 t | 1100–1800 | 11300 × 2200 × 1100 | 700-9 solid tires | Approx. 4 |
| 20 t | 1100–1800 | 11300 × 2200 × 1100 | 700-9 solid tires | Approx. 4.7 |
Dimensions are overall L × W × H, not usable driving width. Machine weights are approximate. Confirm the final configuration and layout for your vehicle and forklift.

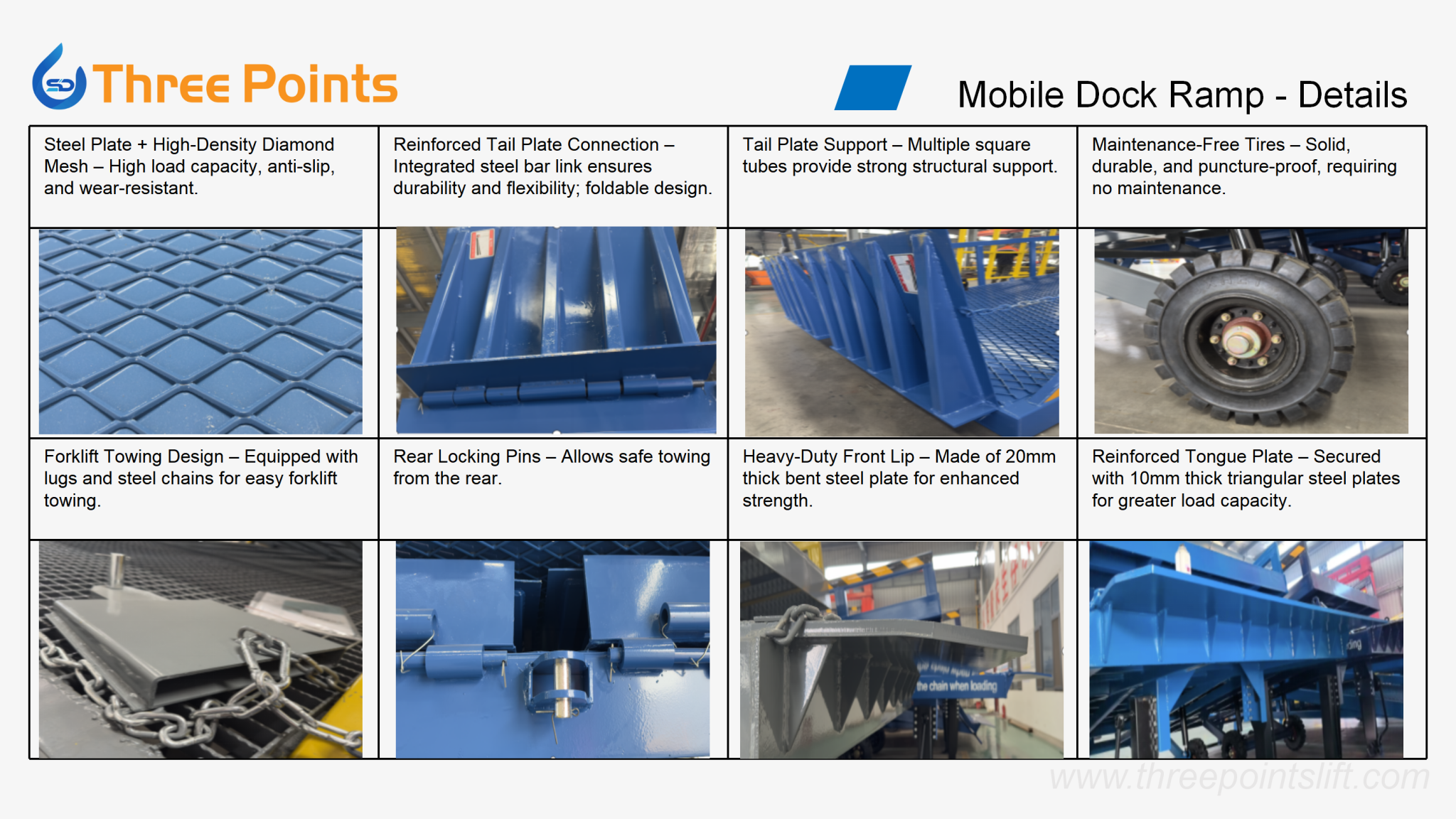

STANDARD CONFIGURATION
The details behind the ramp.
A clear view of the standard supply for your quotation.

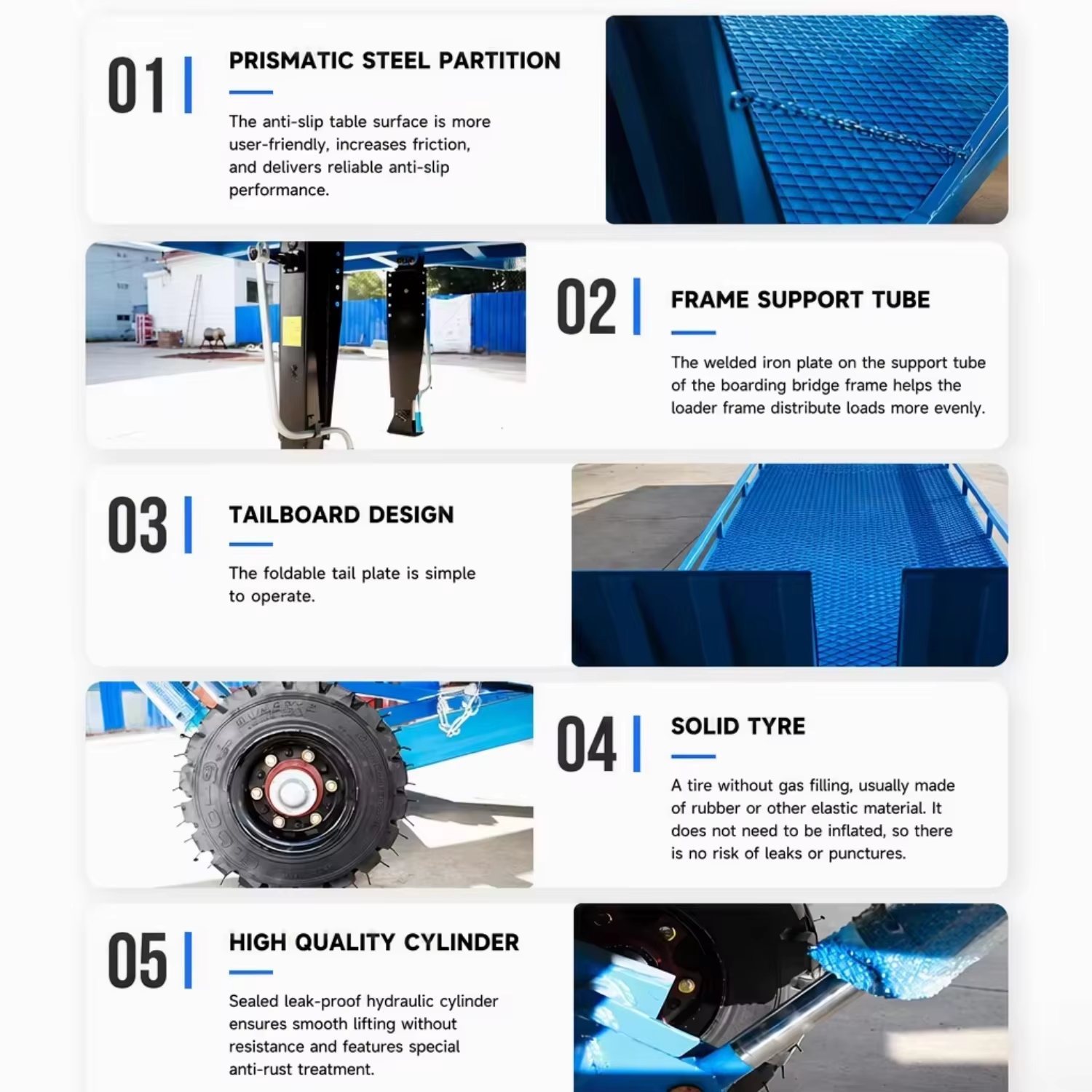

Positioning equipment
- Solid tires: 600-9 or 700-9 by specification
- Tow bar for positioning
- Wheel chocks
- Welded hooks and steel securing chains
Confirm your requirements

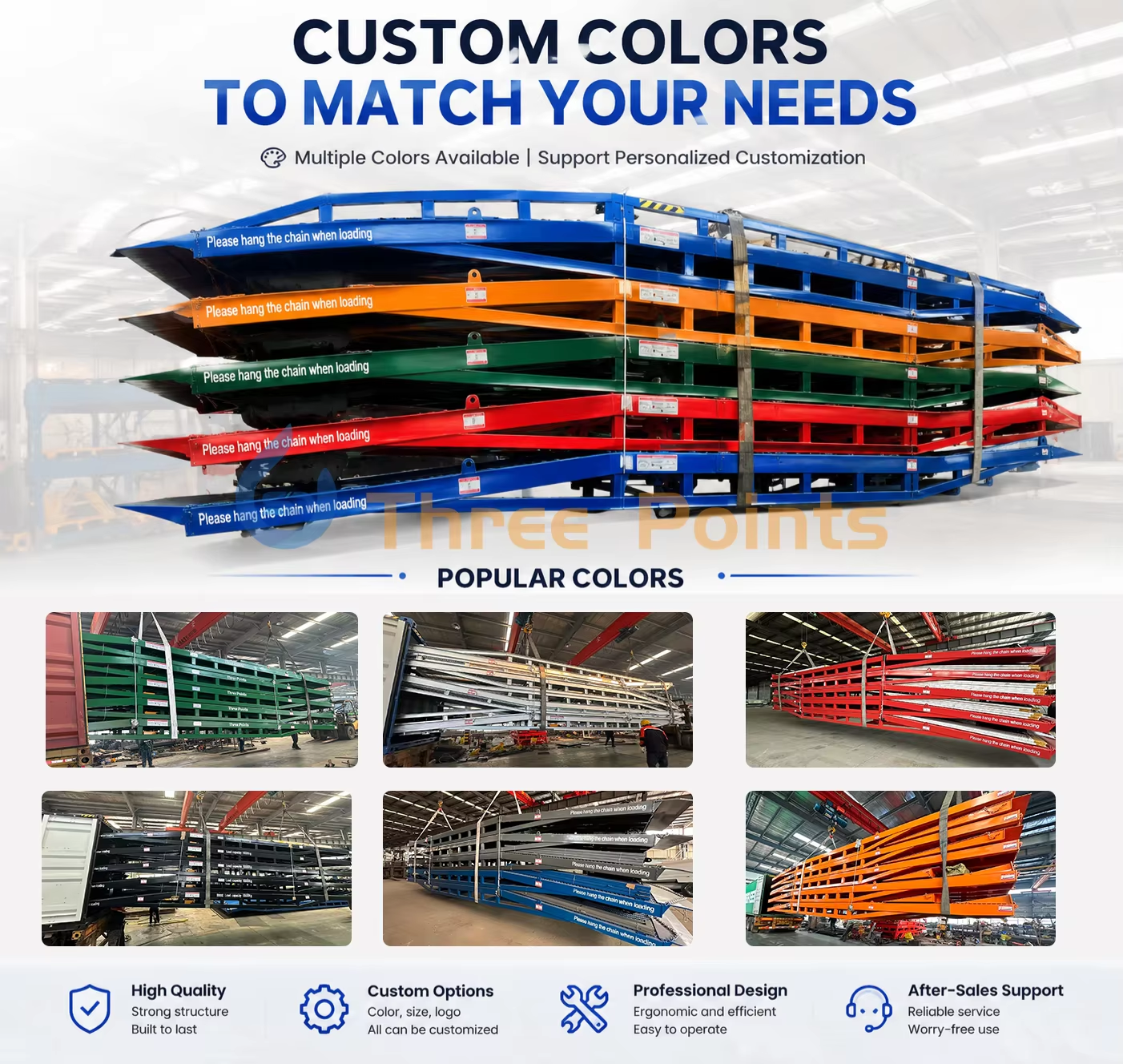

- Medium-blue painted finish
- Acrylic resin paint
- 2100 or 2200 mm overall width by capacity
- Share any special size or finish requirements for review

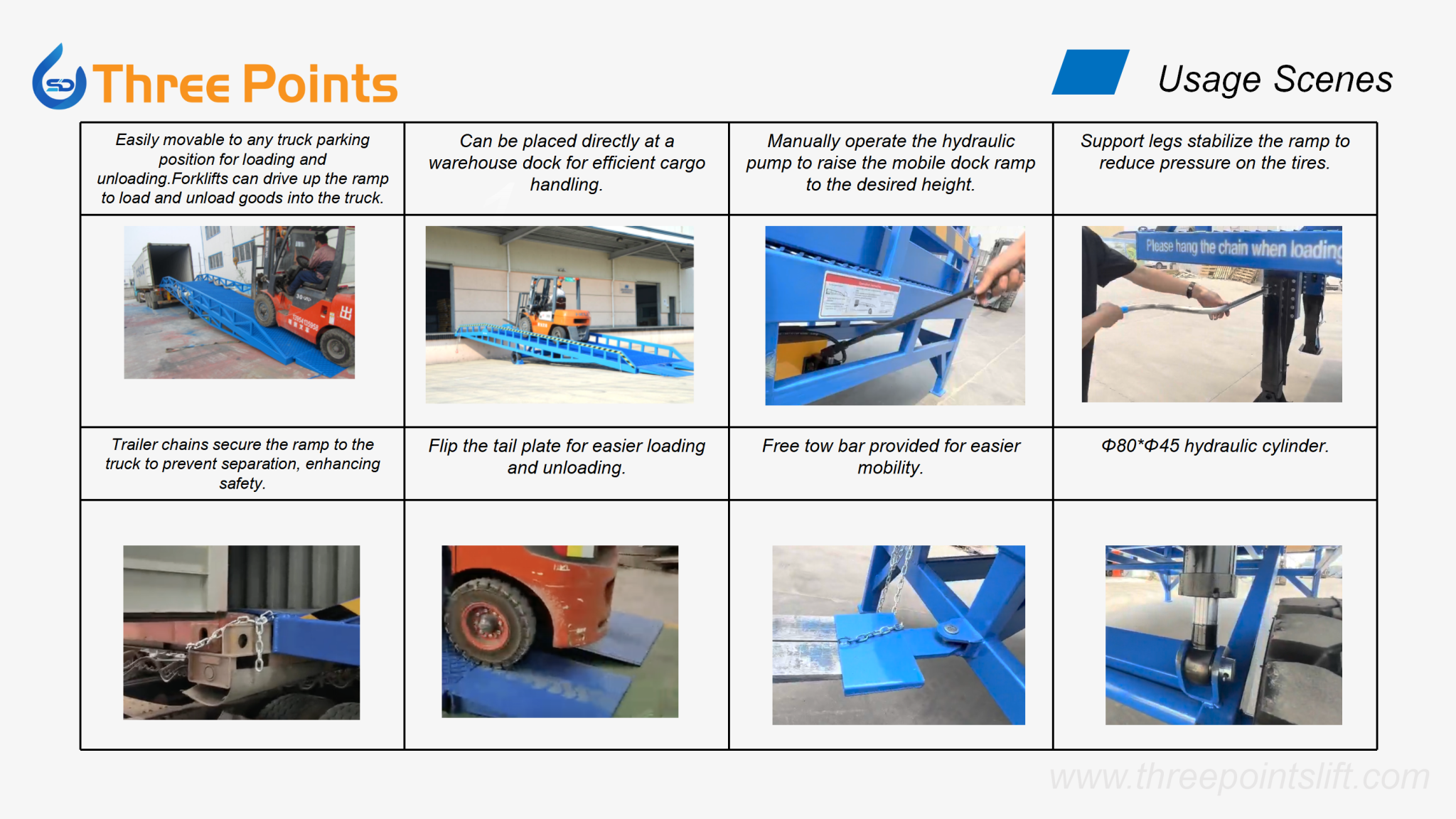

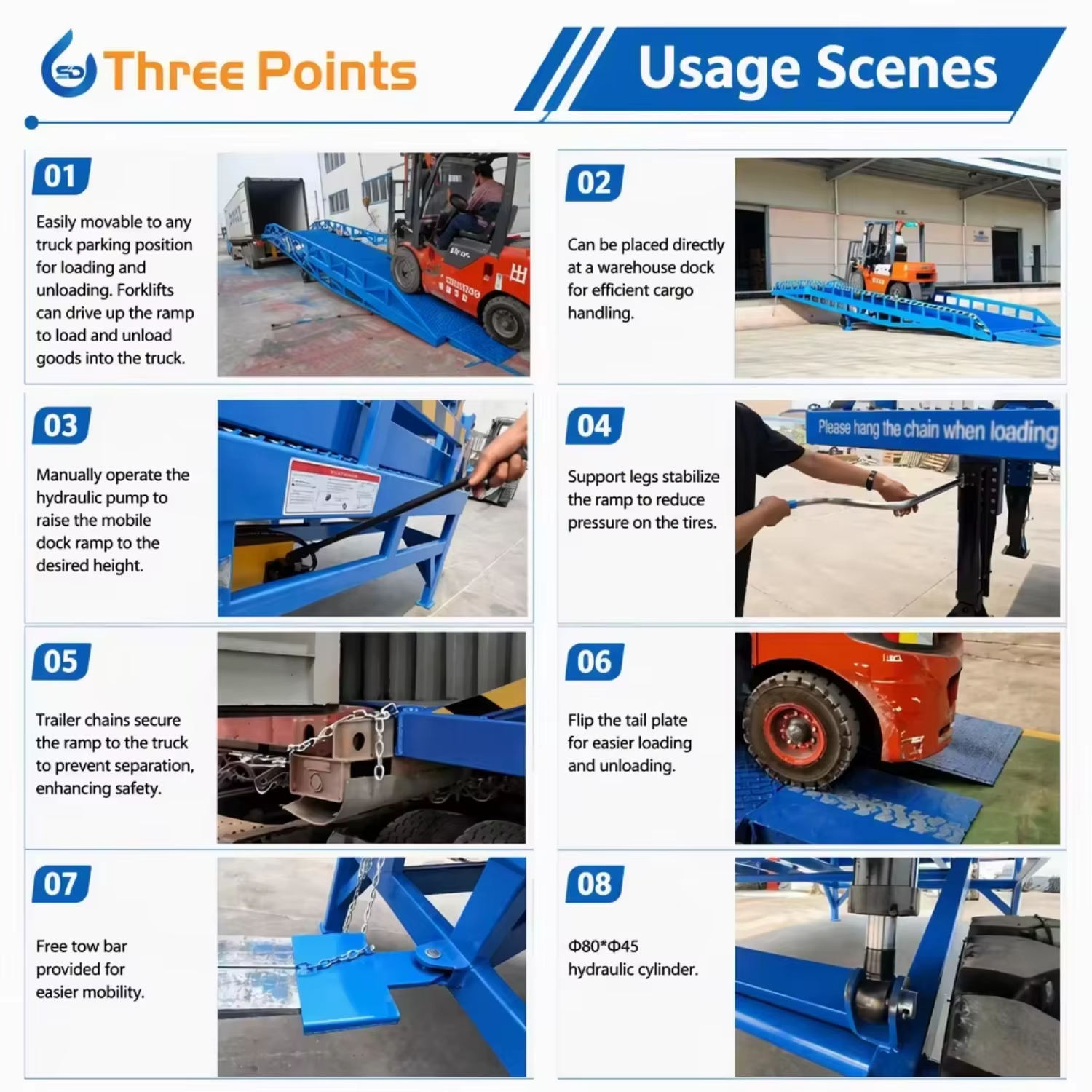

LOADING APPLICATIONS
Access for everyday cargo handling.
Warehouses & logistics
Discuss loading between ground level and delivery vehicles where no permanent dock is available.
Factories & distribution
Plan the loading route around your forklift, goods, vehicle heights and available yard space.
Containers & trailers
Review the vehicle connection and ramp dimensions for your container or trailer loading operation.
PRODUCT QUESTIONS
Choose with confidence.
Six essential answers about capacity, vehicle fit, standard equipment and ordering.
SELECTION · CONFIGURATION · SUPPORT
Which ramp capacity should I choose?
Compare the 6, 8, 10, 12, 15 and 20 tonne ratings against your loading operation. Include the forklift, operator, load and any attachments when describing the total operating weight. Send the forklift specifications and loading frequency so we can recommend a suitable configuration.
Will it match my truck or container height?
All six specifications have a 1100–1800 mm equipment adjustment range. Send your lowest and highest vehicle bed heights, forklift dimensions and available approach space. Overall ramp width is 2100 or 2200 mm depending on capacity; confirm usable driving width and the final layout before ordering.
Does it require a permanent loading dock?
The mobile yard ramp provides a route from ground level to a truck or container where a permanent dock is unavailable. Check the ground condition, approach space, vehicle connection and operating setup for your site before use.
How is the ramp moved and secured?
The listed configuration includes solid tires, a tow bar, wheel chocks and trailer chains. Hooks are welded to the ramp body for chain fastening at the vehicle connection. Follow the supplied operating instructions for positioning and securing the ramp.
What is included in the standard configuration?
The configuration sheet lists solid tires, welded hooks and steel chains, a tow bar, wheel chocks and a medium-blue painted finish. Tire size is 600-9 for 6–10 t specifications and 700-9 for 12–20 t specifications. Confirm the final supply list in your quotation.
How do I get pricing, shipping and support details?
Send the required capacity, forklift and load information, vehicle bed heights, site layout, quantity and destination. We will confirm the ramp configuration and provide quotation details, including packing, freight, lead time, warranty and support terms.

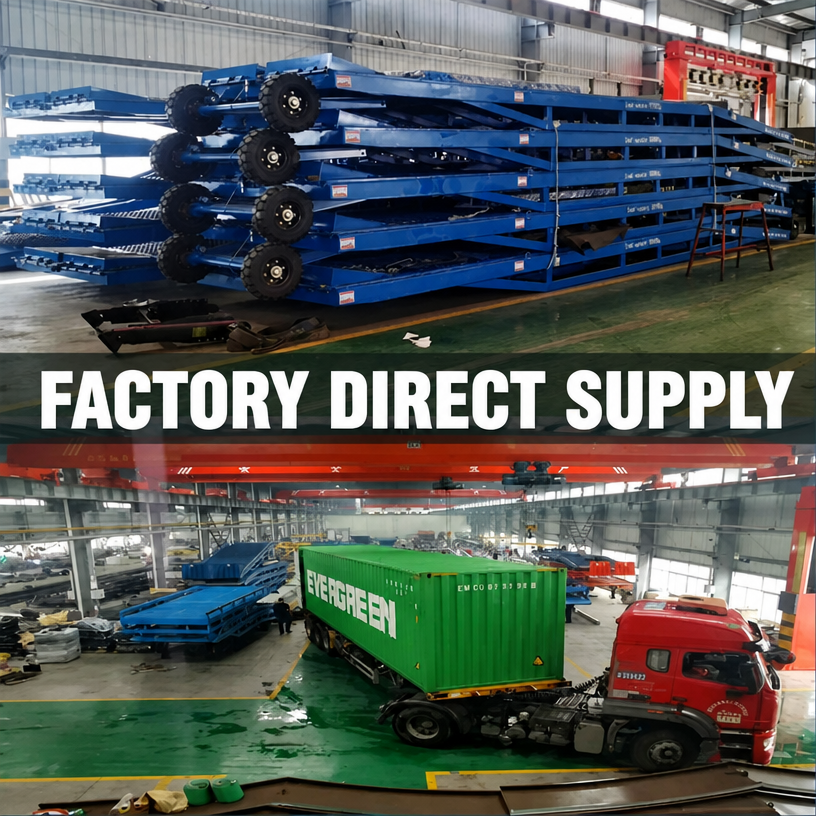

FACTORY DIRECT ENQUIRY
Let’s specify your mobile yard ramp.
Send your required capacity, forklift and goods weight, vehicle bed heights, site layout, quantity and destination for a recommendation and quotation.
