Hydraulic adjustment
Adjust the platform to meet the vehicle bed for loading and unloading. Confirm the required operating range for your site.
Dock Leveler

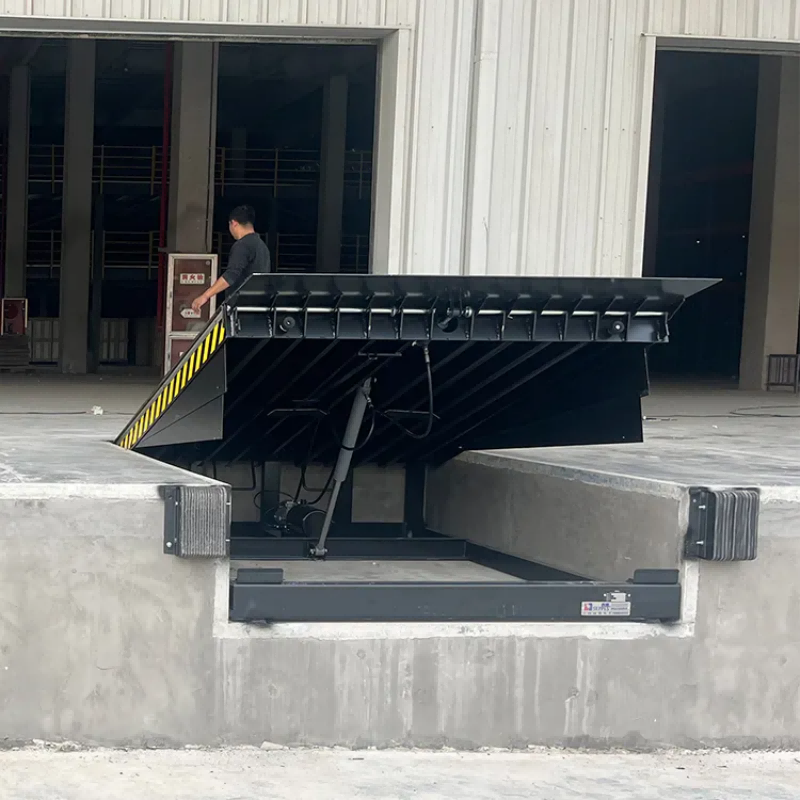

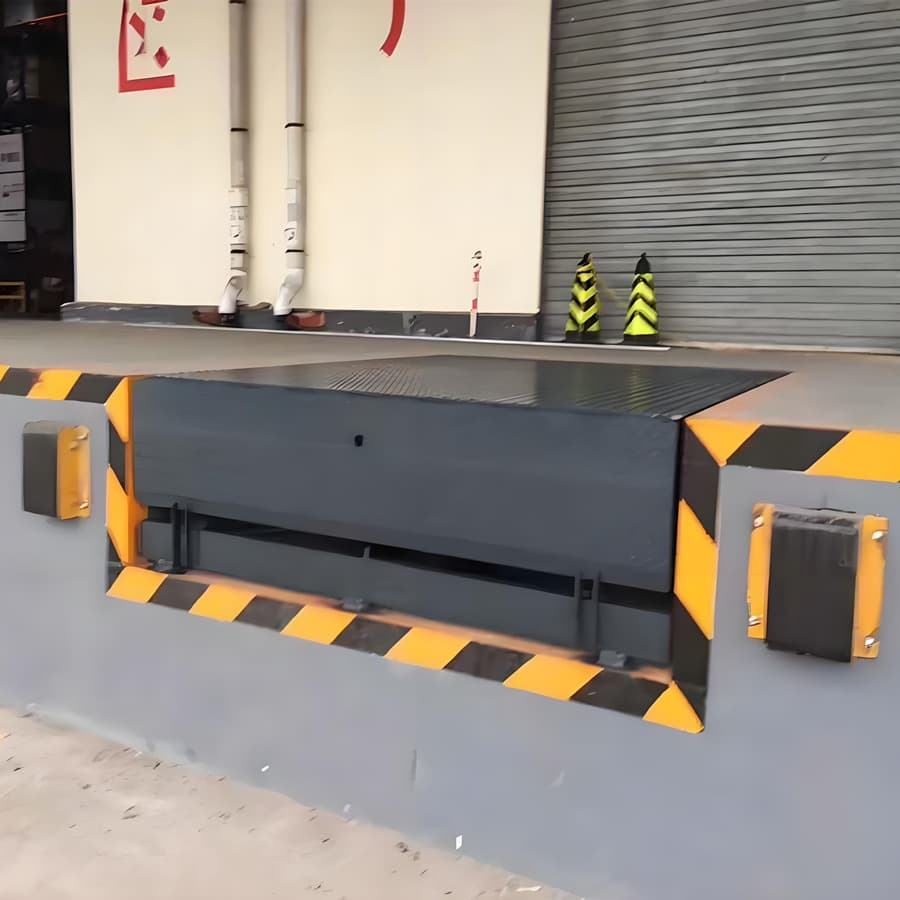

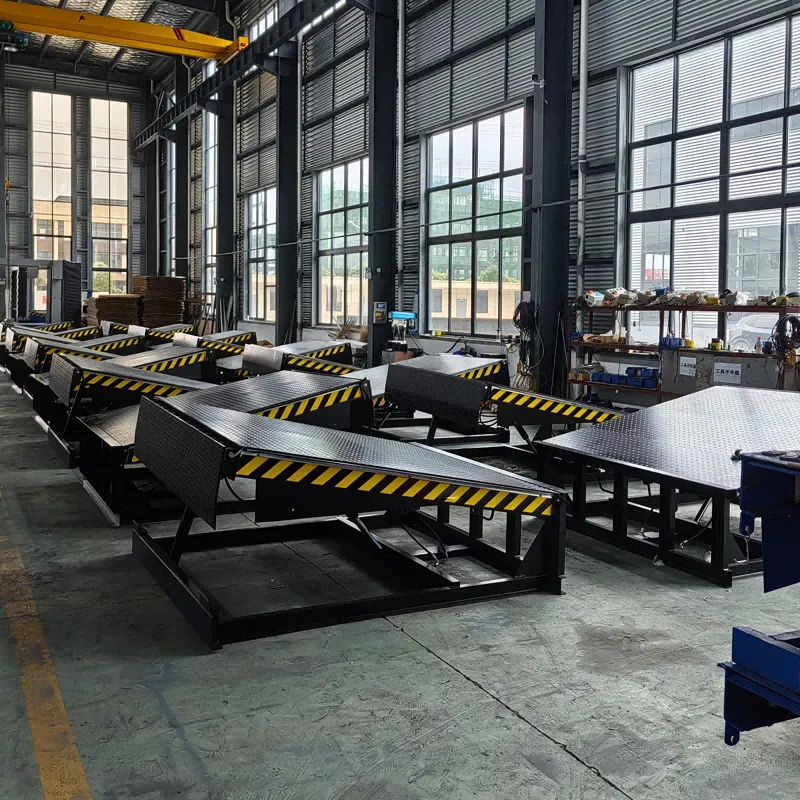

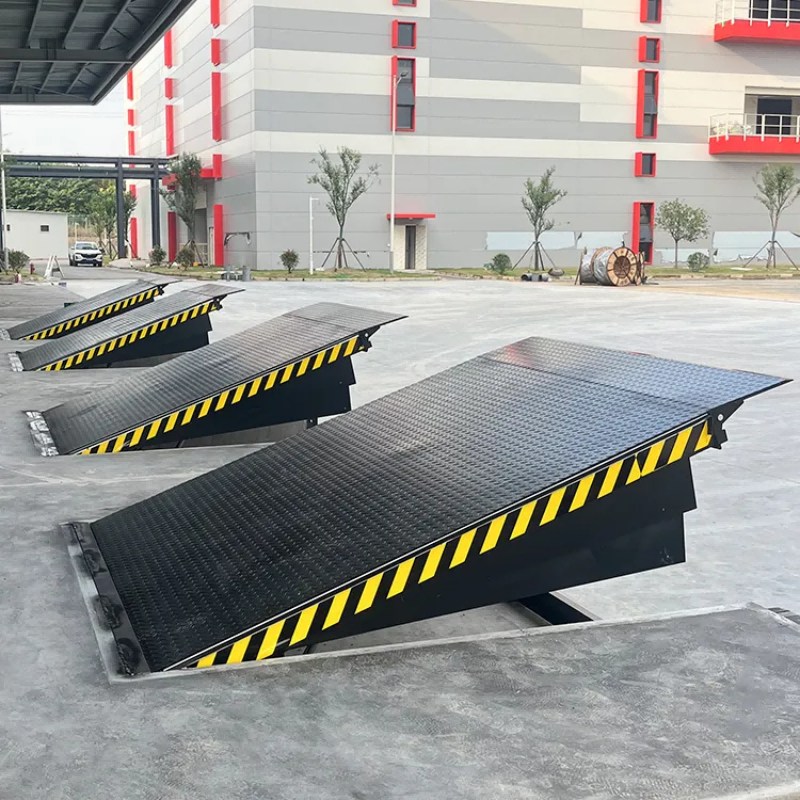

The Fixed Dock Ramp is a heavy-duty loading platform designed to bridge the height difference between loading docks and trucks, allowing forklifts and handling equipment to move safely and efficiently.With a strong steel structure, hydraulic lifting system, and customizable design, the fixed dock ramp provides a reliable solution for loading and unloading operations in warehouses, logistics centers, factories, and distribution facilities.It improves loading efficiency, reduces manual handling costs, and creates a safer working environment for daily cargo transportation.
Product Details

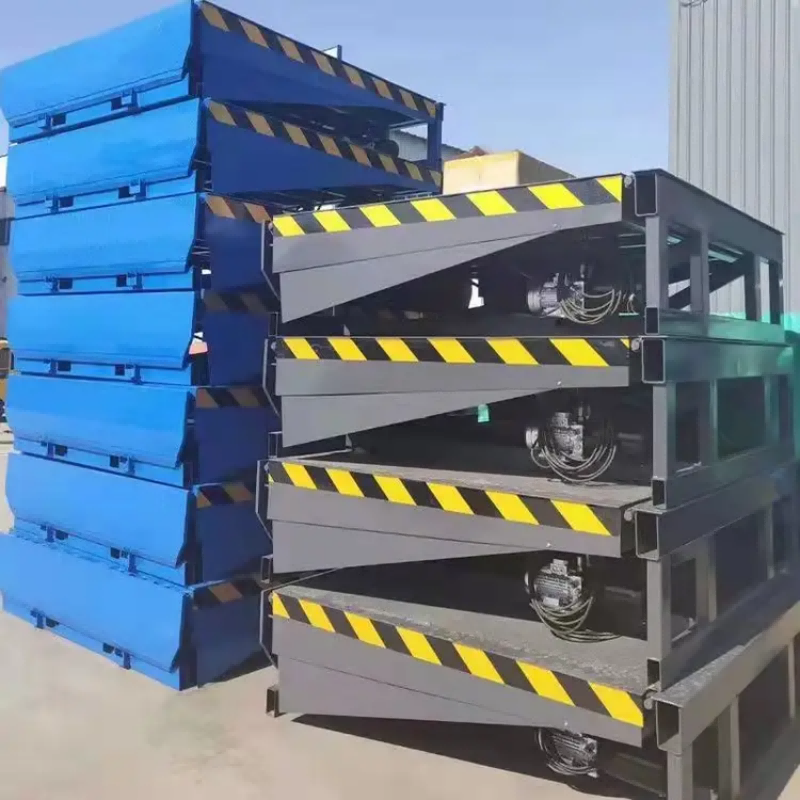

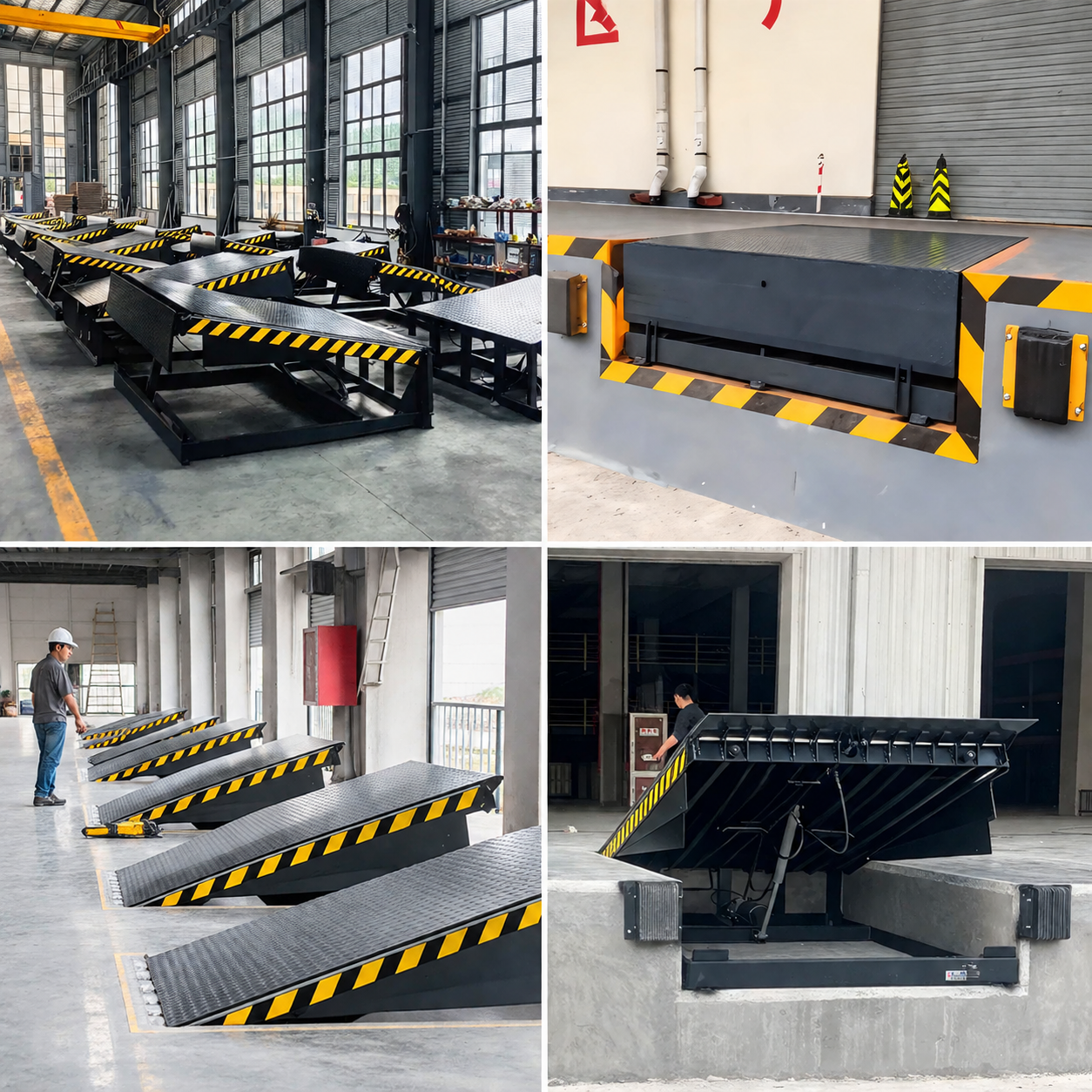

1 / 4 · DOCK LEVELER

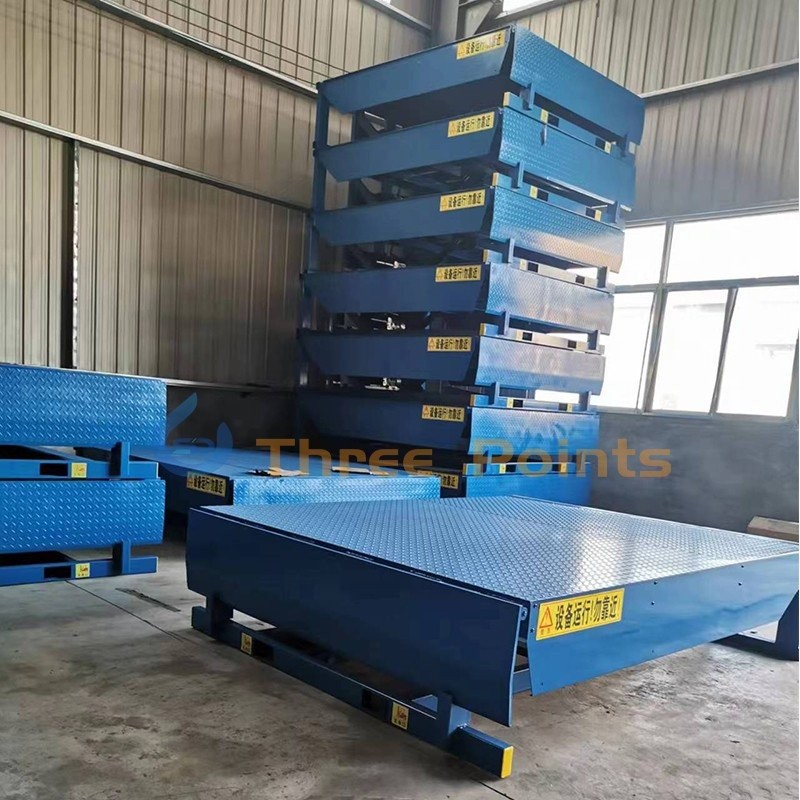

2 / 4 · DOCK LEVELER

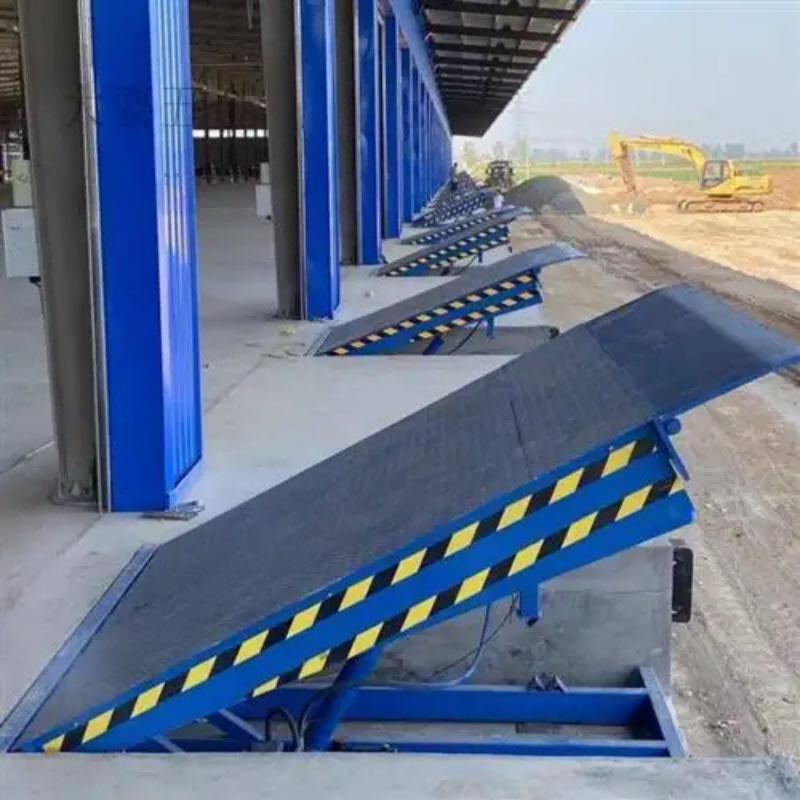

3 / 4 · DOCK LEVELER
4 / 4 · DOCK LEVELER

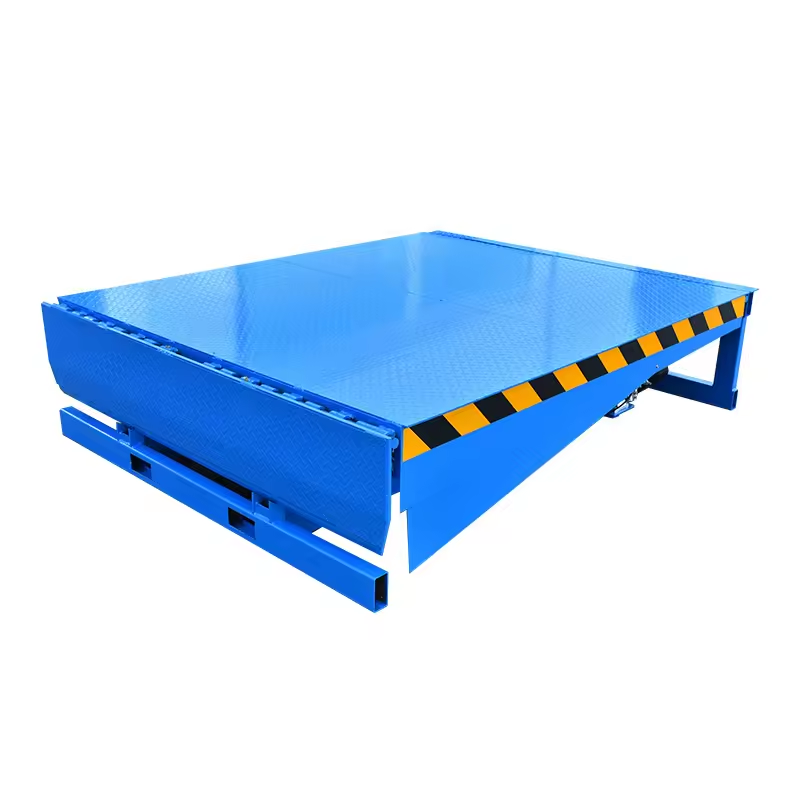

Hydraulic Dock Leveler
DOCK LEVELER / MOBILE ACCESS
Bridge the height difference between your loading dock and truck bed. Compare capacities and platform sizes, then confirm the installation around your dock, vehicles and forklift operation.
15 modelsAvailable range
8–20 tRated capacity
3 sizesPlatform options
HYDRAULIC DOCK LEVELER
Connect your dock to the truck.

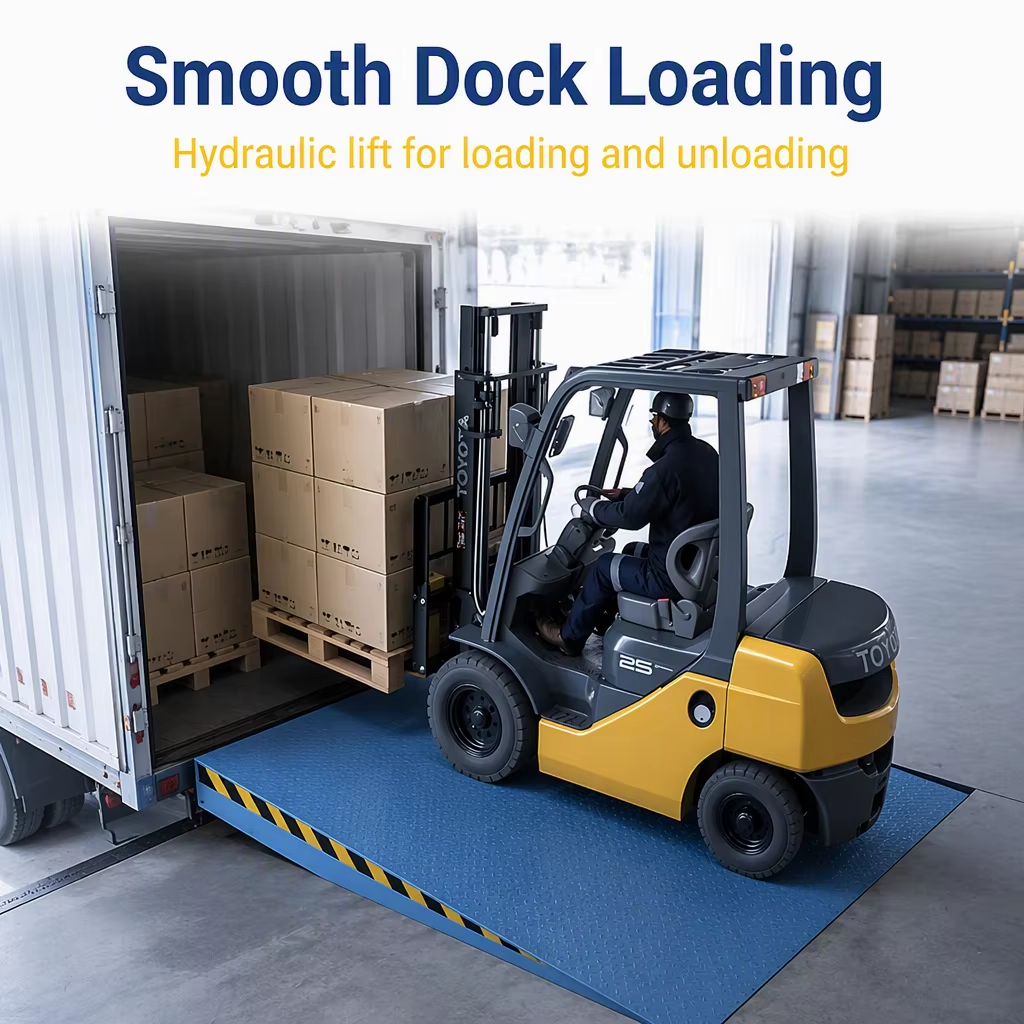

Forklift loading route
Review the platform width, total crossing load and vehicle access around daily cargo handling.
Installation planning
Match the equipment with dock height, pit dimensions, structural provisions and available power.
HYDRAULIC DOCK LEVELER
See the dock leveler in action.
HYDRAULIC DOCK LEVELER
Compare 15 model configurations.
| Model | Capacity (t) | Platform size (mm) | Overall dimensions (mm) | Power / voltage | Listed forklift rating | Weight (kg) |
|---|---|---|---|---|---|---|
| 8A | 8 | 2000 × 2000 | 2000 × 2000 × 600 | 1.1 kW / 380 V | 3 t or below | 670 |
| 8B | 8 | 2000 × 2500 | 2000 × 2500 × 600 | 1.1 kW / 380 V | 3 t or below | 740 |
| 8C | 8 | 2000 × 3000 | 2000 × 3000 × 600 | 1.1 kW / 380 V | To be confirmed | 890 |
| 10A | 10 | 2000 × 2000 | 2000 × 2000 × 600 | 1.1 kW / 380 V | To be confirmed | 740 |
| 10B | 10 | 2000 × 2500 | 2000 × 2500 × 600 | 1.1 kW / 380 V | 4 t or below | 870 |
| 10C | 10 | 2000 × 3000 | 2000 × 3000 × 600 | 1.1 kW / 380 V | 4 t or below | 940 |
| 12A | 12 | 2000 × 2000 | 2000 × 2000 × 600 | 1.1 kW / 380 V | To be confirmed | 900 |
| 12B | 12 | 2000 × 2500 | 2000 × 2500 × 600 | 1.1 kW / 380 V | To be confirmed | 1030 |
| 12C | 12 | 2000 × 3000 | 2000 × 3000 × 600 | 1.1 kW / 380 V | To be confirmed | To be confirmed |
| 15A | 15 | 2000 × 2000 | 2000 × 2000 × 600 | 1.1 kW / 380 V | To be confirmed | 1050 |
| 15B | 15 | 2000 × 2500 | 2000 × 2500 × 600 | 1.1 kW / 380 V | To be confirmed | 1200 |
| 15C | 15 | 2000 × 3000 | 2000 × 3000 × 600 | 1.1 kW / 380 V | To be confirmed | 1310 |
| 20A | 20 | 2000 × 2000 | 2000 × 2000 × 600 | 1.1 kW / 380 V | To be confirmed | 1130 |
| 20B | 20 | 2000 × 2500 | 2000 × 2500 × 600 | 1.1 kW / 380 V | To be confirmed | 1340 |
| 20C | 20 | 2000 × 3000 | 2000 × 3000 × 600 | 1.1 kW / 380 V | To be confirmed | To be confirmed |
Specifications follow the supplied configuration sheet. Unlisted weights and forklift ratings are to be confirmed. Final suitability depends on the complete loading operation.
HYDRAULIC DOCK LEVELER
For warehouse and factory loading docks.
Warehouse loading
Connect storage and truck loading areas for pallet and goods transfer.
Distribution centers
Plan platform capacity and dimensions around the fleet and loading frequency.
Factory dispatch
Support raw material deliveries and finished goods loading at the dock.
HYDRAULIC DOCK LEVELER
Choose with confidence.
How do I choose the capacity?
Provide the forklift operating weight, maximum goods load, traffic frequency and loading conditions. The forklift rating alone is not the total crossing load. Confirm selection with our team.
Which platform size should I choose?
Compare the listed platform sizes with your dock opening, forklift route and vehicles. Send drawings and photos so the dimensions can be reviewed.
What installation details are required?
Provide the dock height, pit dimensions, structural drawings and truck bed height range. Installation layout and site preparation will be confirmed for the selected model.
What is the electrical configuration?
The supplied configuration sheet lists 1.1 kW / 380 V across the models. Tell us the destination, frequency and phase so the final electrical requirements can be confirmed.
Can size and configuration be customized?
Send your required capacity, platform dimensions and installation conditions. Available custom arrangements and included equipment will be confirmed in the proposal.
How do I get a quotation?
Send the selected model or requirements, quantity, dock and vehicle details, and destination. The quotation will confirm specifications, price, lead time, freight and support terms.
HYDRAULIC DOCK LEVELER
Plan your loading dock solution.
Send the required capacity, dock and pit dimensions, truck bed heights, forklift details, quantity and destination.
