Control from the platform
Operate travel and lifting functions from the platform, reducing repeated trips to ground level when moving between work positions.

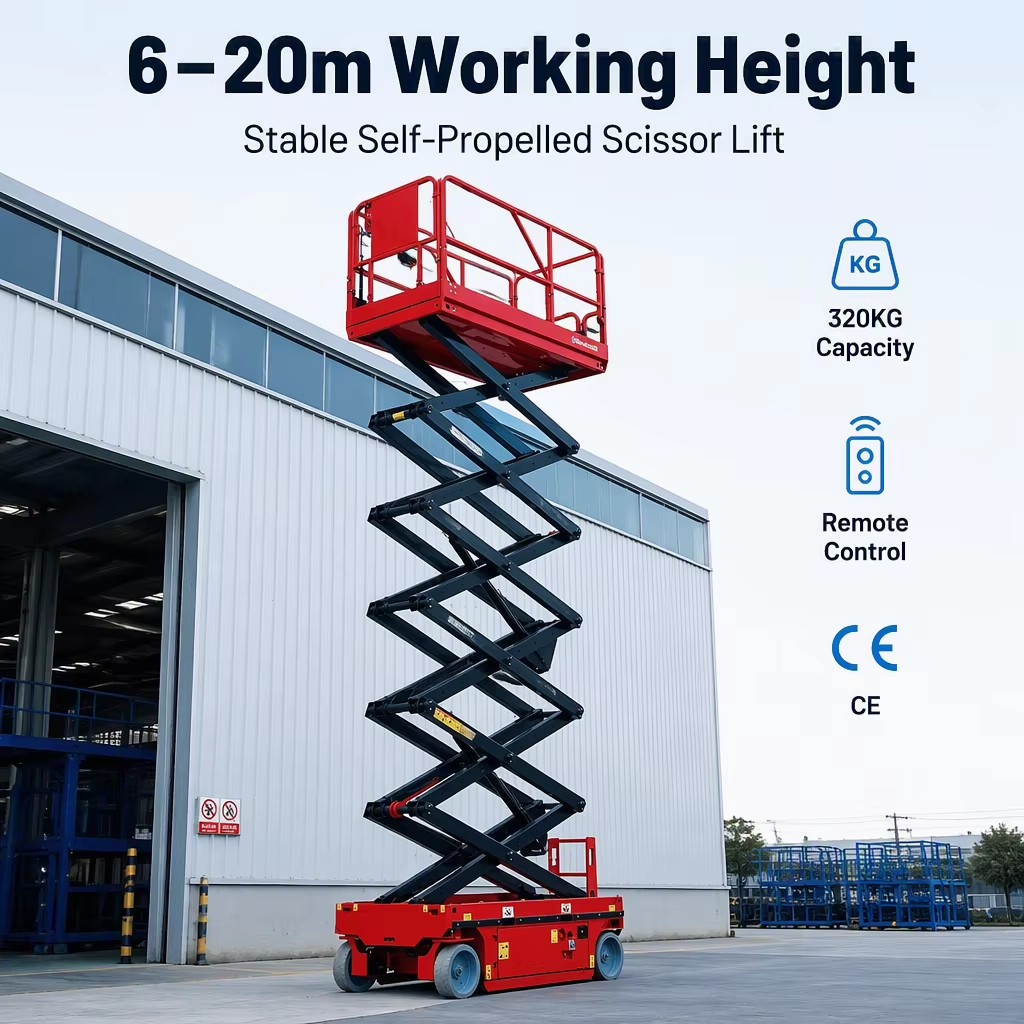

Self-Propelled Scissors Lift
ELECTRIC SELF-PROPELLED ACCESS PLATFORM
Reach maintenance and installation points with travel and lifting controls at the platform. Compare our standard, Mini and narrow models to match your working height, load and access space.
6–18 mWorking height
300–320 kgRated load
10 modelsStandard · Mini · Narrow
- Travel and lifting controls at the platform
- Electric self-propelled operation
- Model selection based on your site and task

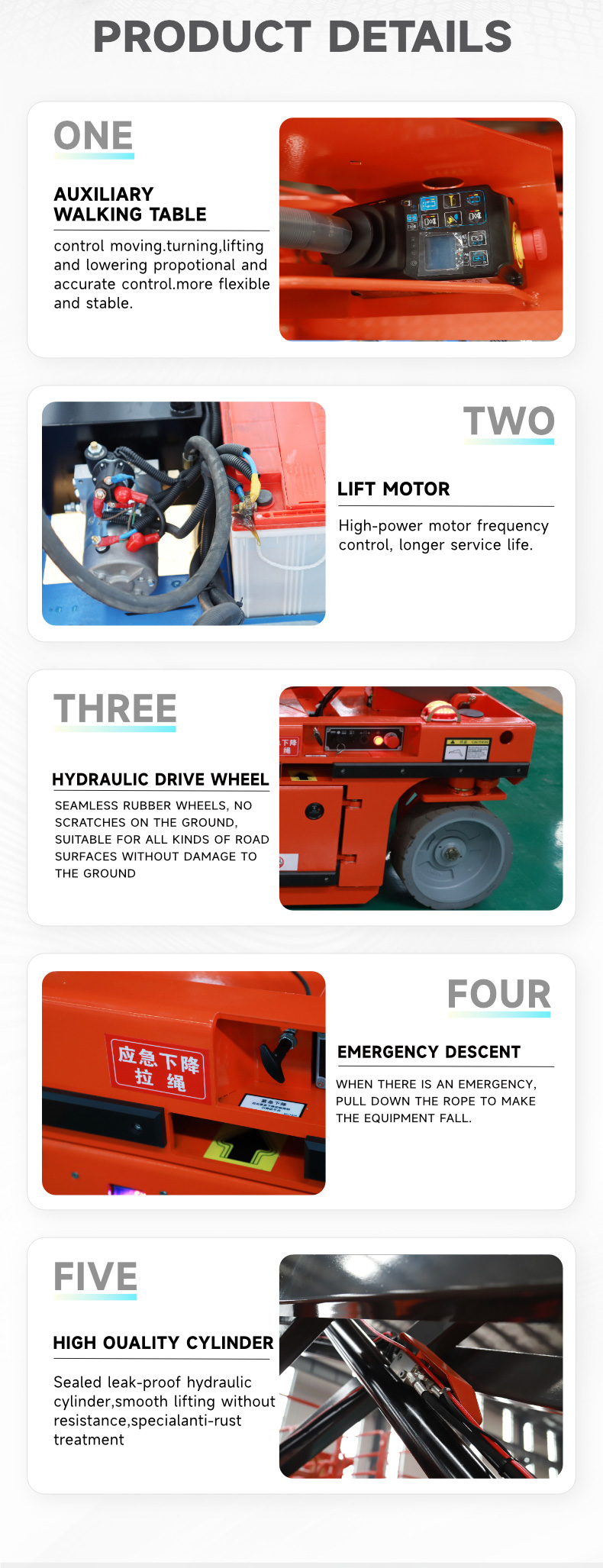

Product Details
THREE POINTS / PRODUCT VIDEO
See the lift in action.
A closer look at travel, lifting and platform operation.
PRODUCT DEMONSTRATION · SELF-PROPELLED SCISSOR LIFT
FROM GROUND TO WORKING HEIGHT
Explore the details before you choose.
- See platform controls and lift movement
- Take a closer look at the scissor structure
- Compare height, load and access dimensions
STANDARD PRODUCT RANGEELECTRIC SELF-PROPELLED OPERATIONDIRECT FROM THREE POINTS
Built around your working day
Move. Lift. Get to work.
A practical aerial work platform for maintenance, installation and facility operations. Choose a standard model to suit your required reach, platform load and access space.
Efficient facility access
An electric drive system supports routine access work across warehouses, production facilities and commercial buildings.
A dedicated work platform
The vertical scissor mechanism provides an elevated working area for personnel, tools and maintenance tasks within the selected model’s rated limits.

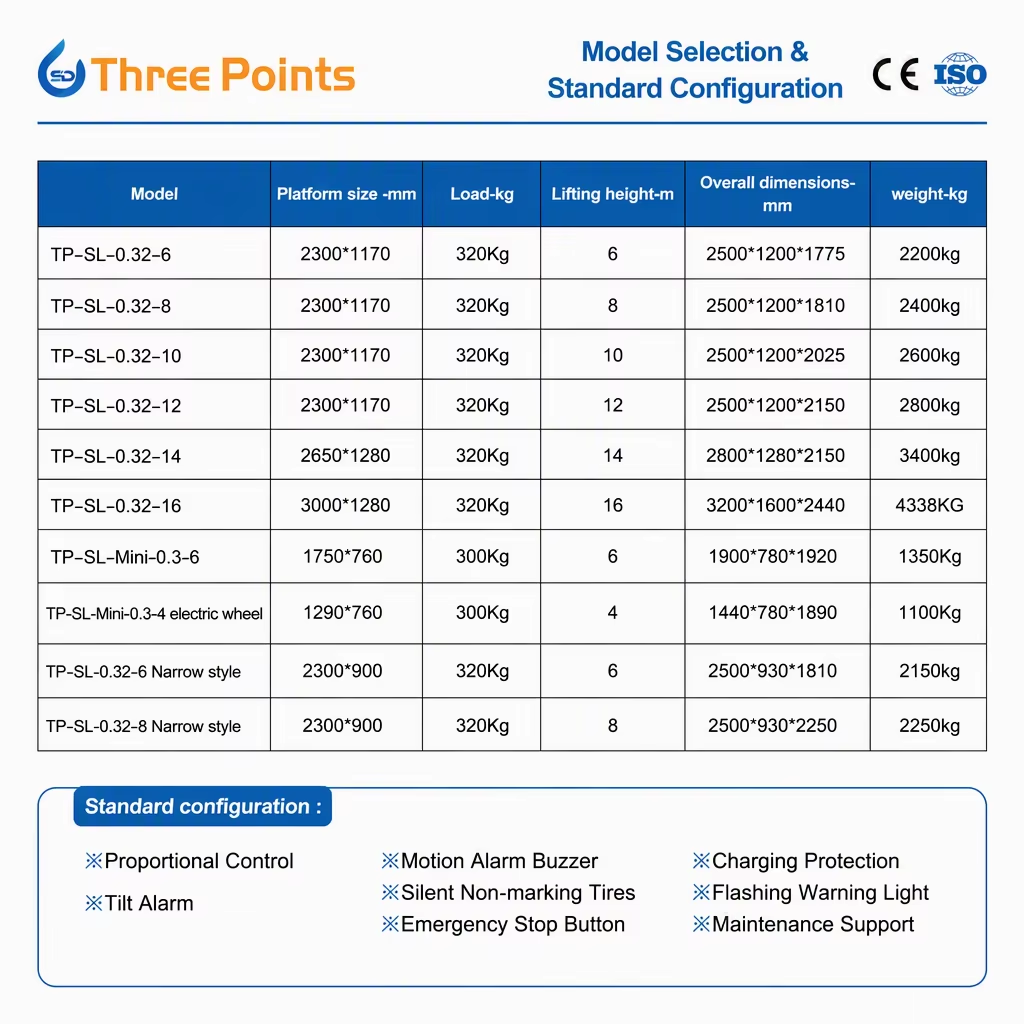

MODEL COMPARISON
Find the right lift for your job.
Compare 10 standard, Mini and narrow models by working height, rated load and dimensions.
| Series | Model | Working height (m) |
Rated load (kg) |
Platform size (mm) |
Overall dimensions (mm) |
|---|---|---|---|---|---|
| Standard | TP-SL8 | 8 | 320 | 2300 × 1170 | 2500 × 1200 × 1775 |
| Standard | TP-SL10 | 10 | 320 | 2300 × 1170 | 2500 × 1200 × 1810 |
| Standard | TP-SL12 | 12 | 320 | 2300 × 1170 | 2500 × 1200 × 2025 |
| Standard | TP-SL14 | 14 | 320 | 2300 × 1170 | 2500 × 1200 × 2150 |
| Standard | TP-SL16 | 16 | 320 | 2650 × 1280 | 2800 × 1280 × 2150 |
| Standard | TP-SL18 | 18 | 320 | 3000 × 1280 | 3200 × 1600 × 2440 |
| Mini | TP-SL-Mini-0.3-6 | 6 | 300 | 1290 × 740 | 1440 × 780 × 1890 |
| Mini | TP-SL-Mini-0.3-8 | 8 | 300 | 1750 × 740 | 1900 × 780 × 1920 |
| Narrow | TP-SL-0.32-8 Narrow style | 8 | 320 | 2300 × 900 | 2500 × 930 × 1810 |
| Narrow | TP-SL-0.32-10 Narrow style | 10 | 320 | 2300 × 900 | 2500 × 930 × 2250 |
Working height is shown as listed in the model specification sheet. It is not platform height. Confirm platform height, transport dimensions, battery and charger details with our sales team.
Everyday applications
One platform. Multiple work areas.
Warehouses & logistics
Reach lighting, overhead services and elevated maintenance points.
Factories & workshops
Support production facility maintenance and installation work.
Commercial facilities
Handle routine access tasks in halls, retail spaces and managed buildings.
Use on suitable ground and within the operating conditions specified for the selected model. Check the model’s indoor/outdoor rating before use.
PRODUCT QUESTIONS
Choose with confidence.
Six essential answers to help you select your lift and prepare your enquiry.
SELECTION · DELIVERY · SUPPORT
Which model is right for my job?
Start with the required working height, the total load of people and tools, and your available access space. The range covers 6–18 m working heights. Send your task, preferred model, quantity and destination so we can recommend a suitable model and quote.
Are working height and platform height the same?
No. Platform height is the height of the platform floor; working height is the stated working reach. The comparison table lists working height. Ask us to confirm the platform height of your selected model before ordering.
What load can it carry, and will it fit my doorway?
Mini models are rated at 300 kg; the listed standard and narrow models are rated at 320 kg. Overall widths start at 780 mm for Mini and 930 mm for narrow models. Compare the full transport dimensions with your doors, aisles and clearance, including the combined weight of operators and tools.
What battery and charging supply does it need?
Battery capacity, charger input and operating time depend on the selected model and its configuration. Tell us your local voltage and usage pattern; we will confirm battery and charger details in the quotation.
What are the lead time and shipping options?
Lead time depends on the model, quantity and current availability. Send your destination country and delivery port or address so we can confirm production timing, packing, freight options and the delivery terms in your quotation.
What warranty and after-sales support is included?
Ask for the written warranty terms for your selected model, including the coverage period, covered parts and exclusions. We can also confirm spare-parts availability and the support process before you place an order.
Factory direct enquiry
Your next standard lift starts here.
Ask for the latest self-propelled scissor lift model sheet and factory quotation. Send your preferred model, quantity and destination for a clear offer.
Product Specifications
Why Choose Three Points Towable Scissor Lift?
As a professional manufacturer of hydraulic lifting equipment, Three Points Lift provides reliable aerial work solutions with advanced manufacturing technology, strict quality control, and customized services.
Every towable scissor lift is manufactured with durable materials and tested before delivery to ensure safe operation, long service life, and stable performance for global customers.
